GSX-R750K2 (’02-MODEL) 11-29
SERVICING INFORMATION

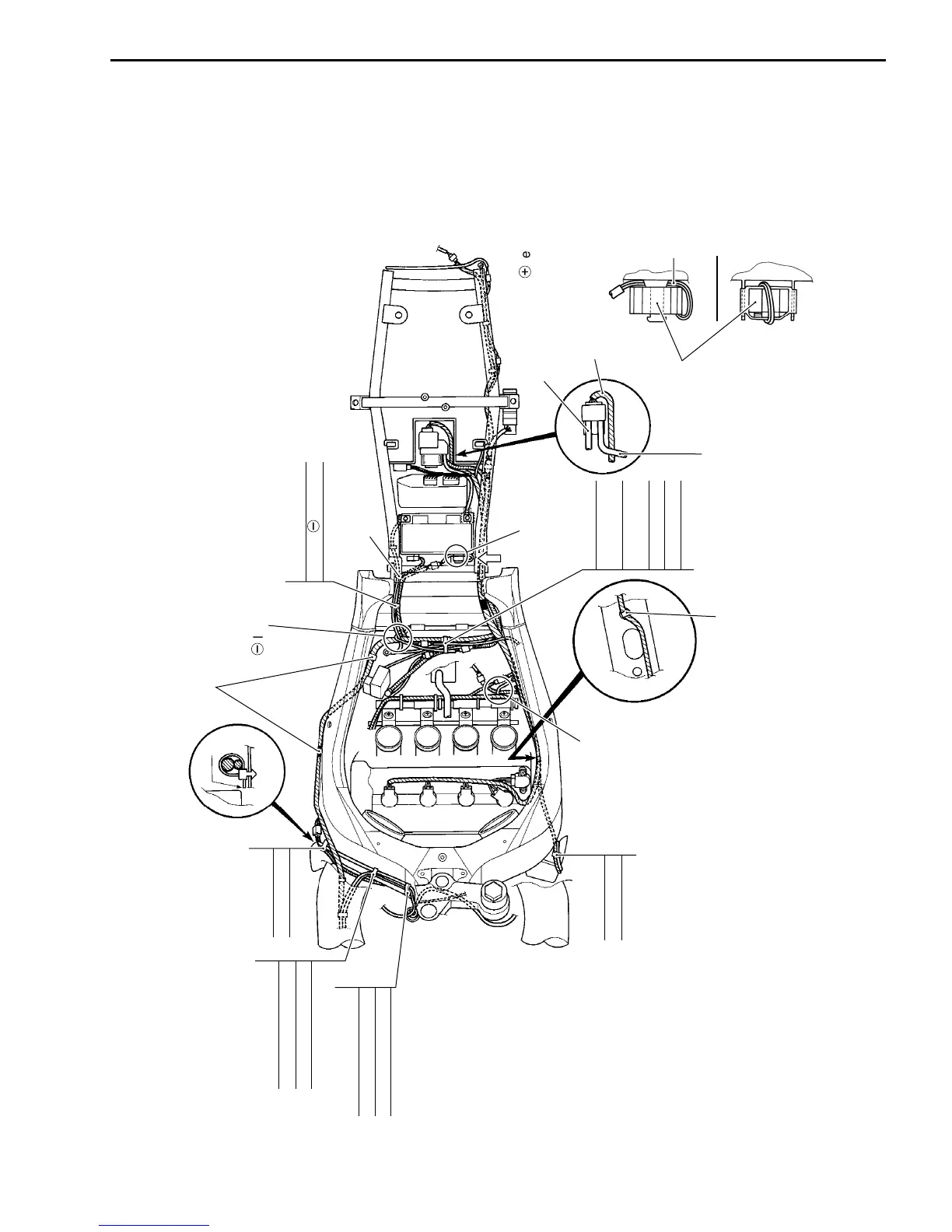

WIRE HARNESS ROUTING
Clamp
Clamp
Clamp
Wire harness Ignition switch
Clamp
Wire harness Oil pressure switch Side-stand switch Starter motor Speed sensor
Clamp
Wire harness Fan motor
Wire harness
Wire harness Battery
-
lead wire
Handlebar switch (R) Handlebar switch (L) Ignition switch
Clamp
Handlebar switch (R) Handlebar switch (L) Ignition switch
Fix the wire harness clamp to the frame.
Fix the wire harness clamp to the frame.
Fix the wire harness clamp to the frame.
Pass the side-stand switch lead wire above the battery -
lead wire.
Pass the fuel pump lead wire between the engine coolant bypass hose and engine.
Pass the battery
+
lead wire
between the ECM and starter relay.
Pass the To sensor lead wire between the To sensor and fender.
Pass the starter motor lead wire behind the seat lock cable.
A
lead wire
To sensor
VIEW A
