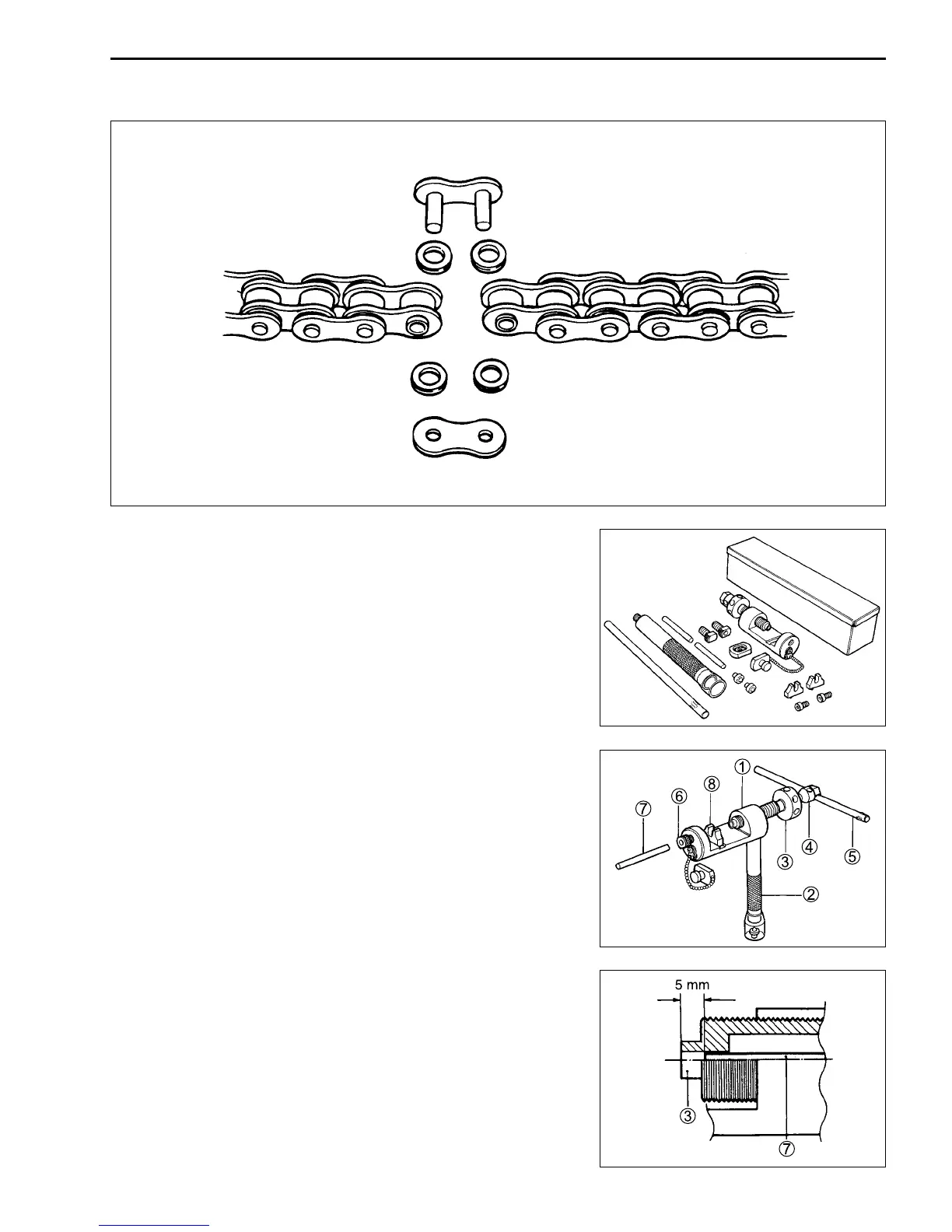

CHASSIS 6-77
DRIVE CHAIN
Use the special tool in the following procedures, to cut and re-
join the drive chain.
[[
[[
[ 09922-22711: Drive chain cutting and joining tool set
NOTE:
When using the special tool, apply a small quantity of grease to
the threaded parts of the special tool.
DRIVE CHAIN CUTTING
• Set up the special tool as shown in the illustration.
1 Tool body
2 Grip handle
3 Pressure bolt “A”
4 Pressure bolt “B”
5 Bar
6 Adjuster bolt (with through hole)
7 Pin remover
8 Chain holder (engraved mark 500)
with reamer bolt M5×10
NOTE:
The tip of pin remover
7
should be positioned inside approxi-
mately 5 mm (0.2 in) from the end face of pressure bolt “A”
3
as
shown in the illustration.
