CHASSIS 6-71
Dust seal
Piston seal
Caliper body
CALIPER INSPECTION
CALIPER INSPECTION:


 6-63
PISTON:


 6-63
DISC:


 6-64


 Service Limit:
Rear disc thickness: 4.5 mm (0.18 in)
Rear disc runout: 0.30 mm (0.012 in)

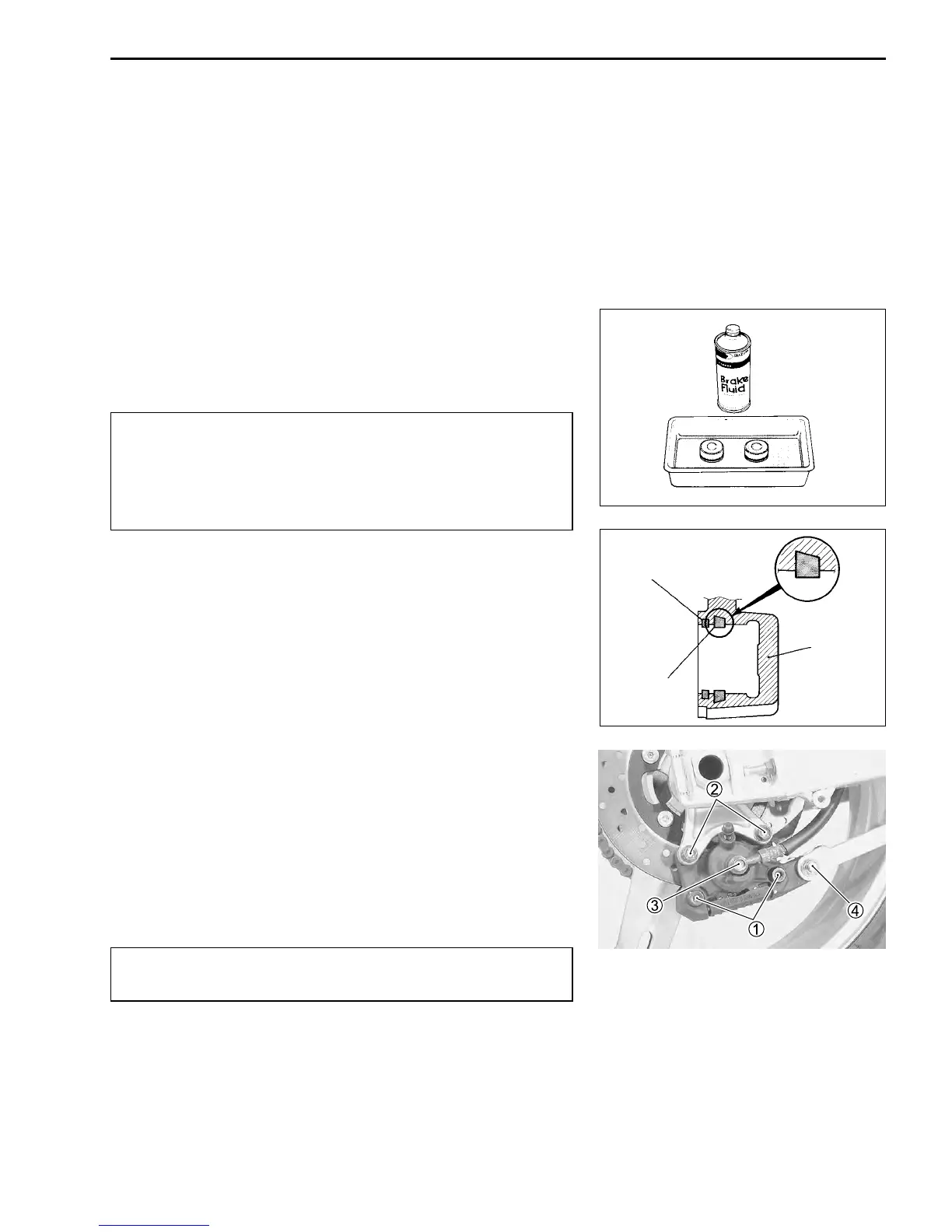

CALIPER REASSEMBLY AND REMOUNTING
Reassemble and remount the caliper in the reverse order of re-
moval and disassembly. Pay attention to the following points:
#
* Wash the caliper components with fresh brake fluid
before reassembly. Never use cleaning solvent or gaso-
line to wash them.
* Apply brake fluid to the caliper bore and piston to be
inserted into the bore.
NN
NN
N Specification and Classification: DOT 4
PISTON SEAL
• Install the piston seals as shown in the right illustration.
• Tighten each bolt to the specified torque.
!!
!!
! Rear brake caliper housing bolt 1: 30 N
.
m
(3.0 kgf
.
m, 21.5 lb-ft)
Rear brake caliper mounting bolt 2: 25 N
.
m
(2.5 kgf
.
m, 18.1 lb-ft)
Brake hose union bolt 3: 23 N
.
m (2.3 kgf
.
m, 16.5 lb-ft)
Rear torque link nut 4: 34 N
.
m (3.4 kgf
.
m, 24.6 lb-ft)
#
Bleed air from the system after reassembling the cali-
per. (


 2-22)
