An example power profile for a Modem powered with 3.3V can be found below in Figure 5.

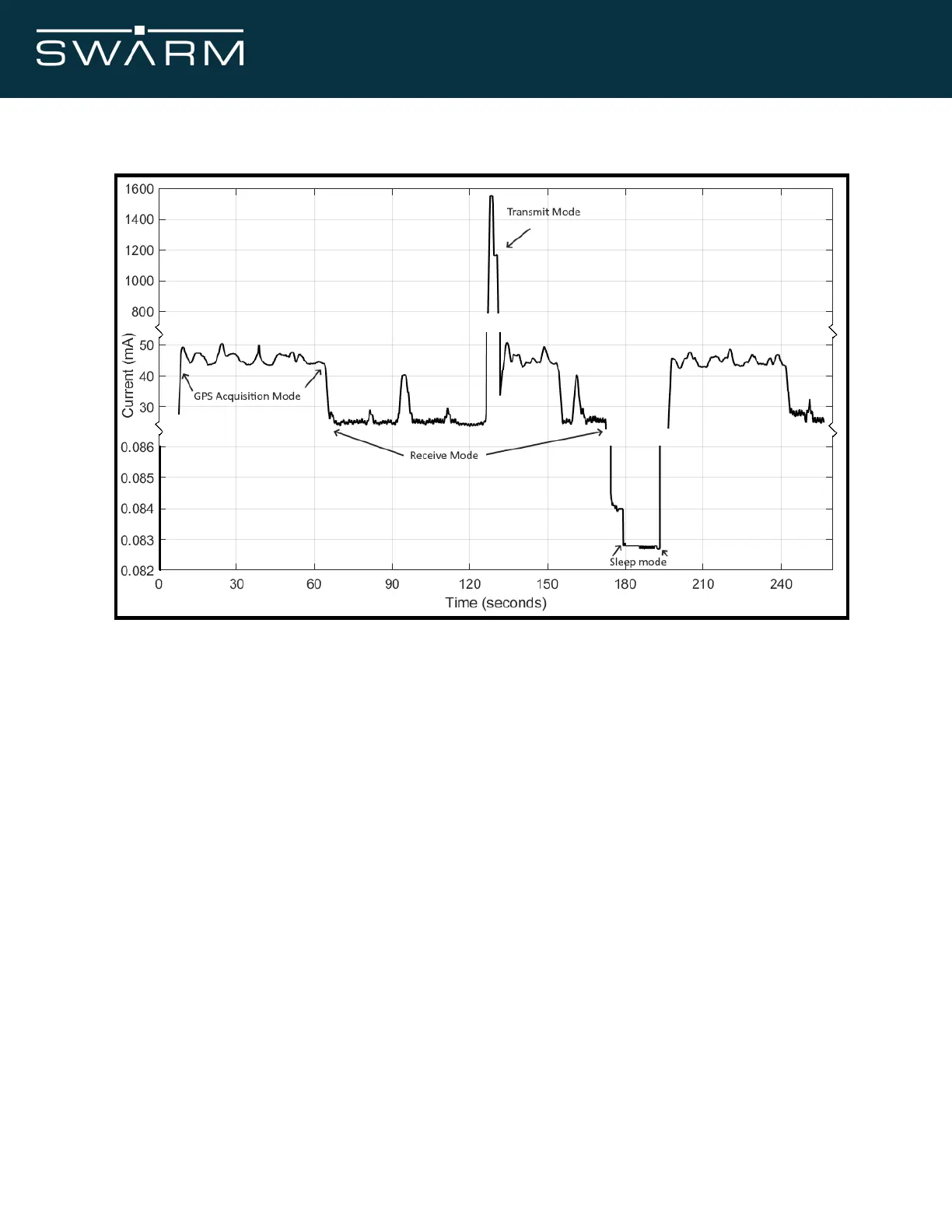

Figure 5: Example current use for a Modem with a 3.3 V input from wake-up, GPS acquisition, Transmit, Receive
mode, and then sleep mode. Note the two breaks in the y-axis scale.
November 2021 Swarm M138 Modem Manual - Rev 1.00 16/77
