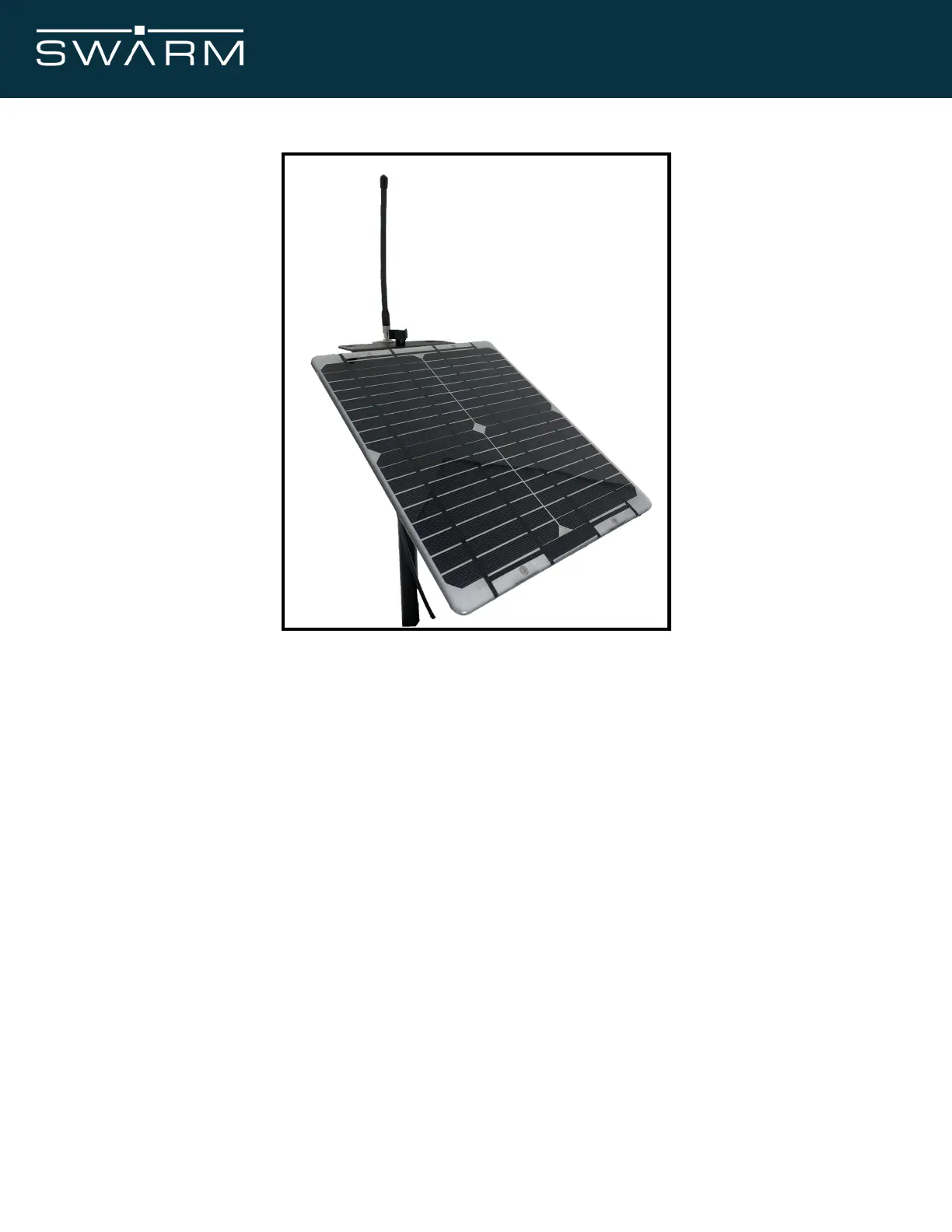

Figure 10: Example ¼-wave antenna with a (Swarm) 9W solar panel serving as the required 30 x 30 cm ground
plane off to one side. Tested extensively in the field and works well.
November 2021 Swarm M138 Modem Manual - Rev 1.00 30/77
