Cable Tester
This app allows you to test DMX and Ethernet cables. Loose DMX cables
can be tested using the XMT-500 alone; xed DMX cables and Ethernet
cables require the cable test dongle to be also used - see page 3.

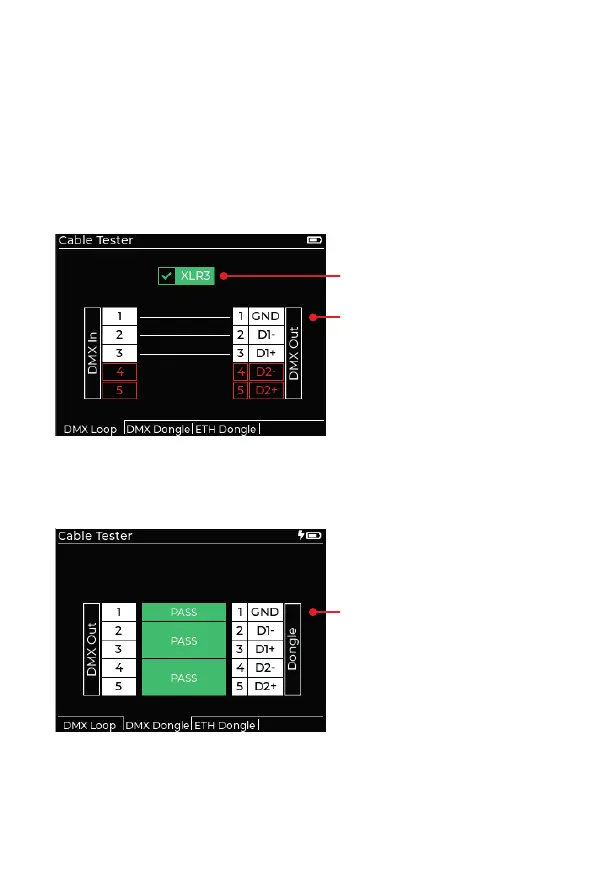

DMX Loop
The app will rst show the DMX loop page to test loose DMX cables
connected between the input and output XLR sockets.
Cable pass / fail indication
Pin-by-pin status
White lines: Valid
Red lines: Open or incorrect
Red animated: Cross connection
DMX Dongle
When testing a DMX cable between the XLR connectors of the XMT-500
and the dongle, press the DMX Dongle soft-key to show:
Pass/Fail indications
Note: Unlike the loop test option,
dongle tests are carried out
in pairs, eg pins 2 and 3 are
tested together. If a short occurs
between pairs (e.g. short between
pins 2 and 4), both pairs will be
marked as failed. Similarly, if an
open circuit occurs on one line
within a pair, both lines in the pair
will be shown as open.
continued
