Analyze Tools

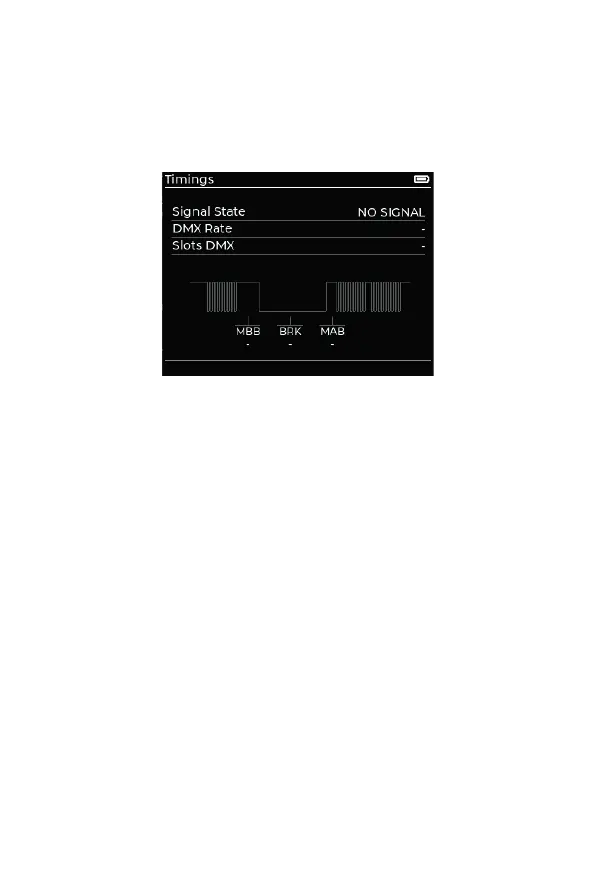

Timings
This app provides a breakdown of DMX timings for signals connected to
the XMT-500 input XLR connector.
The following signal aspects are listed in real time:
• Signal State - shows if the signal is present and error free.
• DMX Rate: shows the number of DMX frames per second.
• Slots DMX: shows how many data slots are in the DMX packets.
• MBB: Mark Before Break - high value pause at the end of the last data
packet, of variable length.
• BRK: Break - low value pause to denote the beginning of a new data
packet.
• MAB: Mark After Break - high value pause to separate break from the
ensuing data.
Signal timings
Designation Min Typical Max
MBB (Mark Before Break) 0 - < 1.00 s
BRK (Break) 88 us 176 us -
MAB (Mark After Break) 8 us - < 1.00 s
(values for receivers)
