Pg. 12 1/2018
Specifications
Power Module:
Size: Width 3.0”, Length 6.0”, Height 0.5”,
Height with connectors 1.40”,
Height with connectors plugged in and wires 3.0”
Material: Anodized Aluminum
Temperature rating: Automotive -40C to 125C
Water and Dust proof rating: IP67
Amp rating: 125A max
Switch 1 – 4 Outputs: 20A max
Switch 5 – 8 Outputs: 35A max
Current draw: 35mA
Current draw: At idle, after 1 min no activity, 5.5mA
Current draw: In sleep mode, 3mA
Inputs voltage thresholds active HIGH: >4.5V
Inputs voltage thresholds active LOW: <0.5V
Switch Panel:
Size: Width 2.0”, Length 4.0”, Height 0.375”
Housing material: Anodized Aluminum
Switch Membrane and Legends material: Polycarbonate
Temperature rating: -30C to 85C
Water and Dust proof rating: IP67
Backlighting color: RGB
Switch led indicator color: Amber
Bluetooth: BLE 4.1 Apple and Android

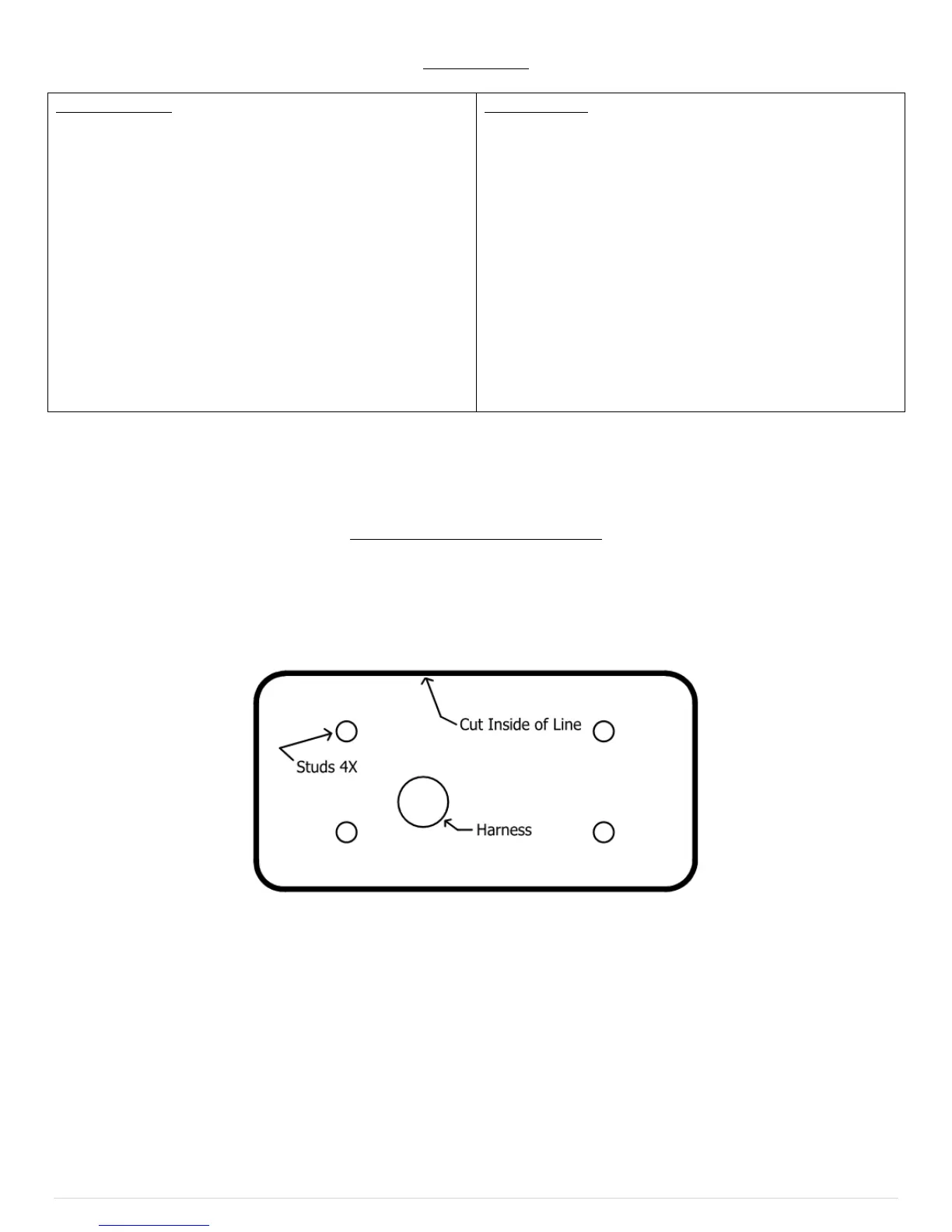

Switch Panel Mounting Template
For a switch panel bezel mount, cut out the white inside of the template, do not cut the black line.
For mounting onto a flat surface, mark holes for the mounting studs and the harness hole.
Make sure the inside measurements of the template are 1.875” x 3.875” (0.237” corner radius) since they can
vary due to printing parameters.
Note: Inside of black perimeter line (white area ) should measure 1.875 x 3.875” with a .237” corner radius
