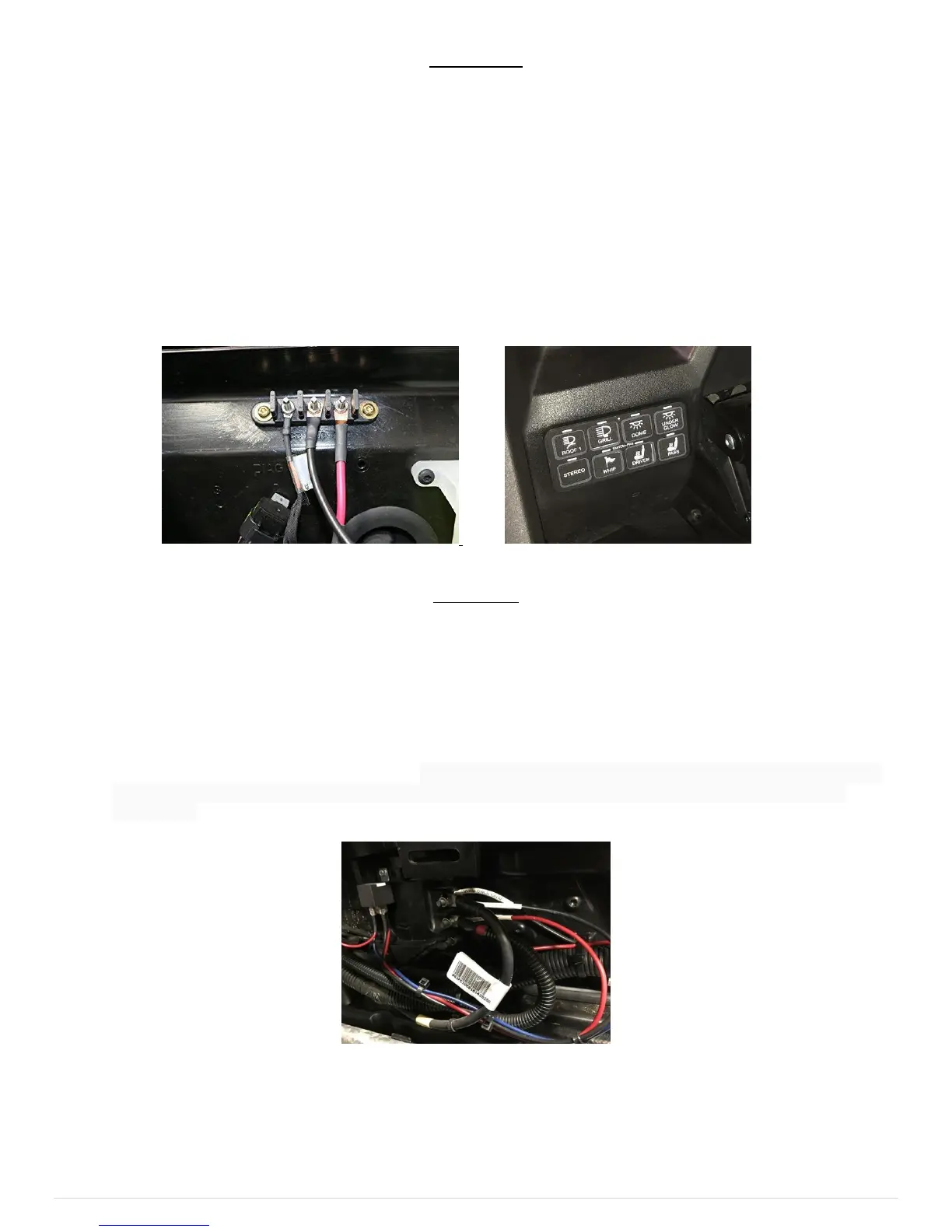

Polaris RZR
1. Install the power module near the battery and connect the 4 AGW battery cable directly to the positive terminal of
the battery. The battery connection can also be switched with a main cut-off switch.
Connect the BLACK negative ground wire coming out of the 16-pin connector, directly to the negative terminal
of the battery. The power module can also be mounted at the front of the vehicle, but both the power feed and the
Black ground wire need to be connected directly to the battery. DO NOT rely on a frame ground for the Black
ground wire.
Connect the Lt. Blue Ignition and White Lights wire together and connect them to the ACC terminal (Orange
wire) on the terminal block located at the front of the vehicle under the hood.
Note: On the Factory terminal block, only the Orange ACC wire is connected to the terminal block. The
studs marked GND and Power are not connected. (The GND stud is not grounded).
2. Install the switch panel and route the 11’ switch panel cable to the power module. A common place to mount the
switch panel is to the left of the steering wheel.
CanAm X3
3. Install the power module near the battery and connect the 4 AGW battery cable directly to the positive terminal of
the battery. The battery connection can also be switched with a main cut-off switch.
Connect the BLACK negative ground wire coming out of the 16-pin connector, directly to the negative terminal
of the battery. The power module can also be mounted at the front of the vehicle, but both the power feed and the
Black ground wire need to be connected directly to the battery. DO NOT rely on a frame ground for the Black
ground wire.
Connect the Lt. Blue Ignition and White Lights wire together and connect them to the ACC terminal of the
terminal block located under center console. Remove the passenger seat for 2-seater or rear passenger seat for 4-
seater, and pull the center console and you will find the accessory power terminal. The ACC terminal is the
bottom stud.
