SY-KLONE ADVISOR RESPA - Technical Specifications

OperationManual
Sy‐Klone.com/RAinfoJune2021
ENGLIT0000342D
3
Technical Specifications
Voltage: 12-24 VDC (Undervoltage protection @ 10 VDC; Overvoltage protection @ 30 VDC)
Current Consumption:
• Main Module: Less than 30 mA
• Ambient Pressure Sensor: Less than 0.6 mA
Inside/Outside Operating Temperature Rating:
• Main Module: -10°C to 60°C (Inside cab)
• Ambient Pressure Sensor: -40°C to 80°C (Outside cab)
Storage Temperature Rating: -55°C to 125°C
Operating Pressure Range: 0 to 400 Pascal (Pa) (0 to 1.61 Inches-H
2
O)
Operating CO
2
Range: 0 to 5000 ppm
Display Resolution: 1 Pa (0.01 Inches-H
2
O)
Weight:
• Main Module: 426.0 g (15.0 oz)
• Ambient Pressure Sensor: 368.5 g (13.1 oz)
Connector: Deutsch part number DT04-2P-E005, qty 1; W2P secondary lock, qty 1; 0460-202-16141 contact pins, qty 2
Dimensions:
• Main Module: 164.8 x 75.3 x 43.6 mm (6.49 x 2.96 x 1.72 inches)
• Ambient Pressure Sensor: 134.3 x 81.1 x 44.1 mm (5.29 x 3.19 x 1.74 inches)

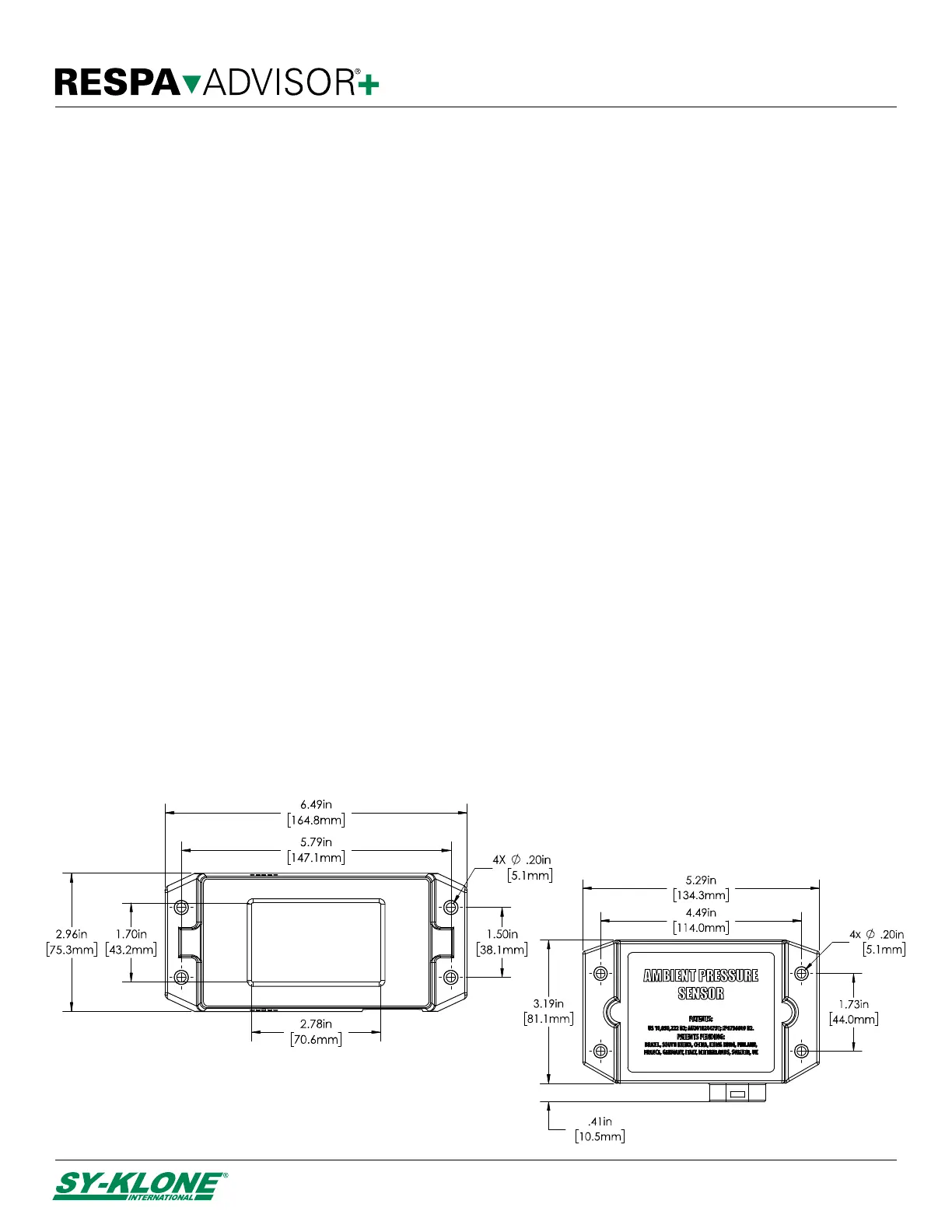

MAIN MODULE - MONITOR
(in cab)
AMBIENT PRESSURE SENSOR (APS)
(exterior of cab)
