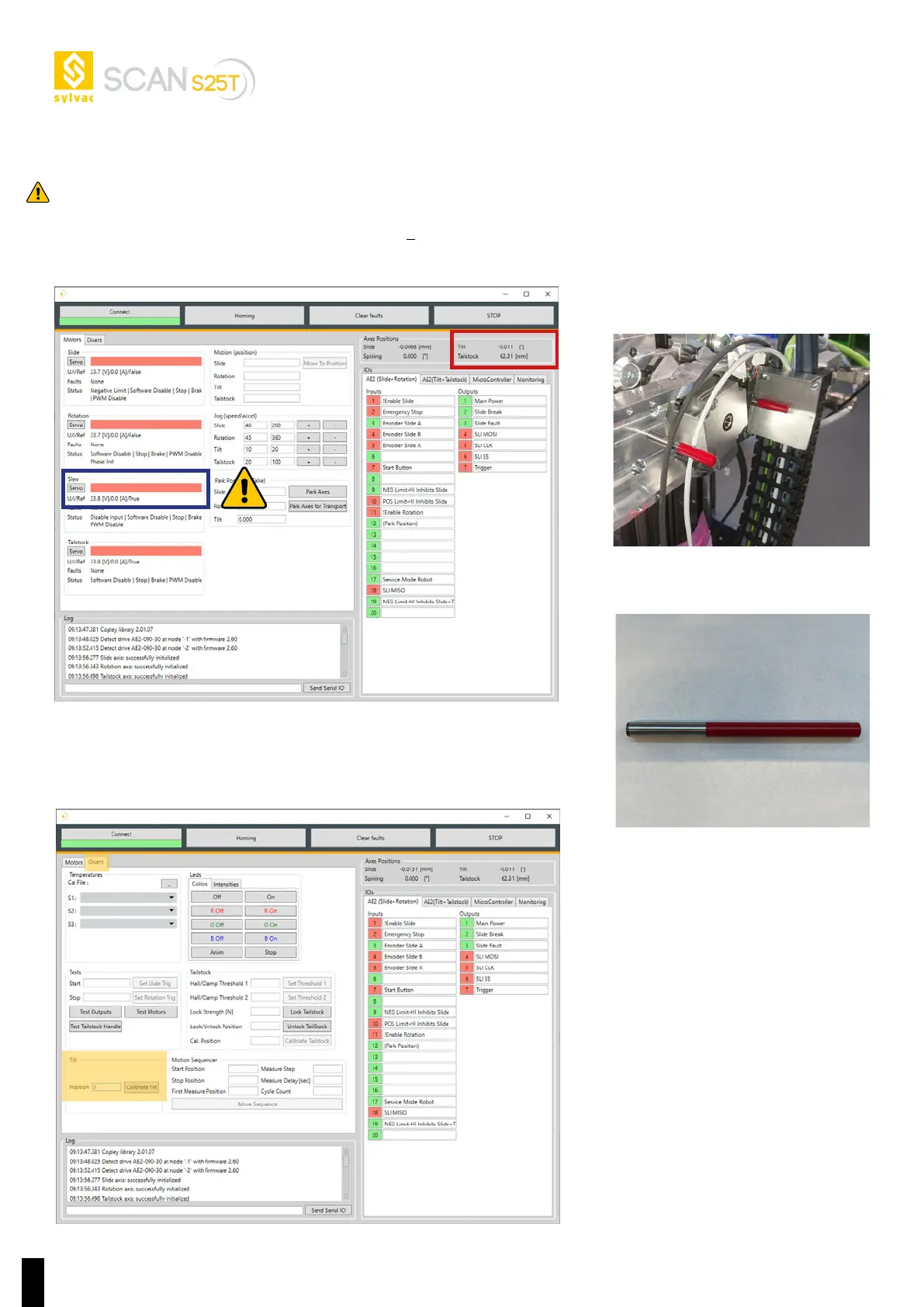

1.3.4.2. Tilt unlocking
1. Launch ReflexScan+ software and head to the Diagnostics of the controller.
2. Check if the motor is free and not controlled by the drive: status bar is red. (blue square on the image). Do not mani-
pulate the pins if the status bar is green, click on the «servo» button to make it red (motor is not controlled by the drive.)
3. Check the Tilt value, the value should be between + 0.05° (red square on the image)
4. Only then, you can proceed to take out the pins.
Otherwise, please set the tilt to zero before removing the locking part.
Remove red locking part and the two
locking pins.
Image of red locking part
