8
2. TPS signal output confirms.
a). Connect the TPS Sensor (Use detection pin)
b). Key-On, but don’t start the engine.
c). Use the electric meter DCV function to check the TPS sensor output voltage.
d). Check the output voltage: (Like the following figure 6)
‧Electric meter negative pole─ connect to the first pin of sensor coupler (White / Brown)
‧Electric meter positive pole─ connect to the third pin of sensor coupler (Green / Red)
e). Measure the voltage readings of full-open throttle and full-closed throttle separately.

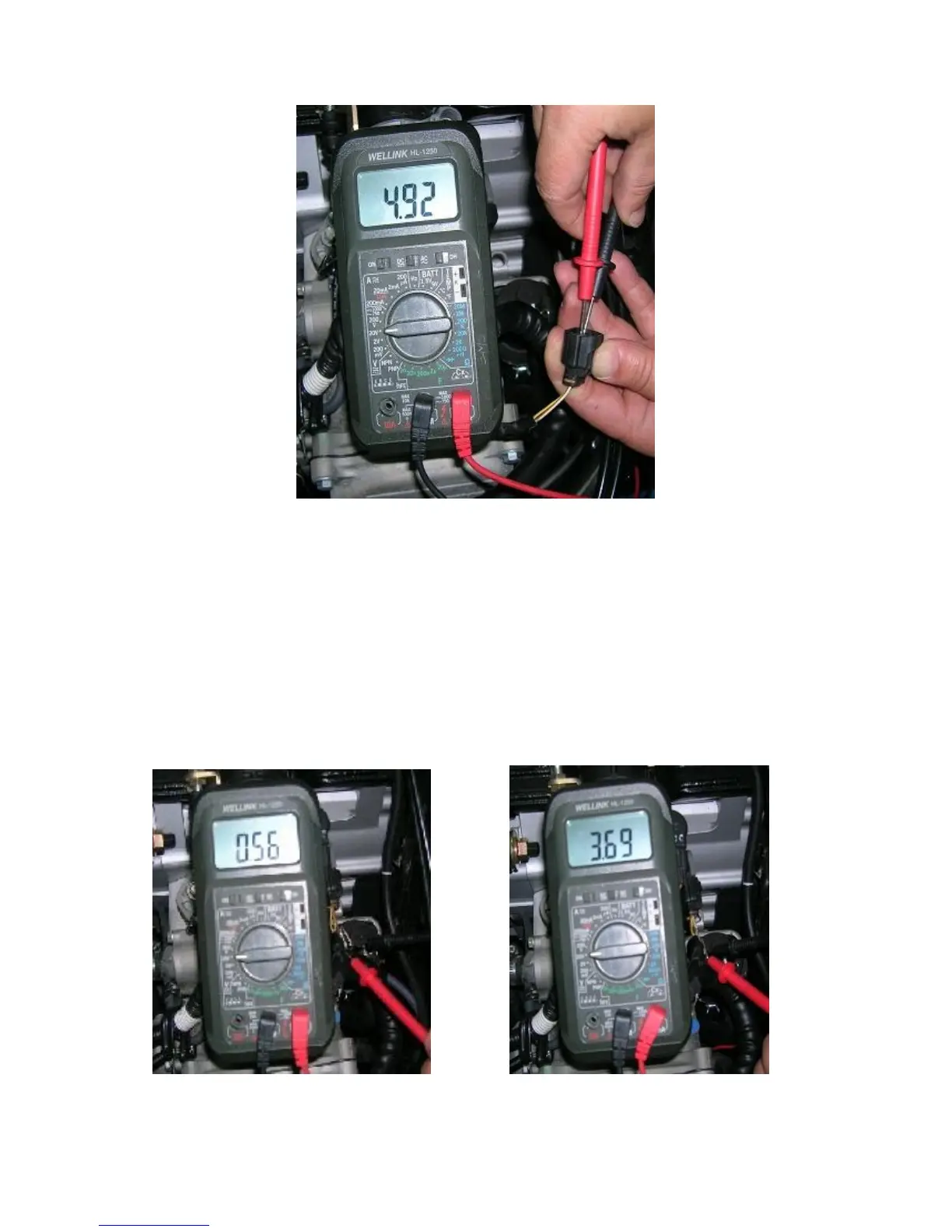

Fig. 5 TPS working voltage measurement from ECU side
Figure. 6 Voltage readings of full-open throttle and full-closed throttle
(B) Full-open Throttle
(A) Full-closed Throttle
