7. Cylinder / Piston
7-6

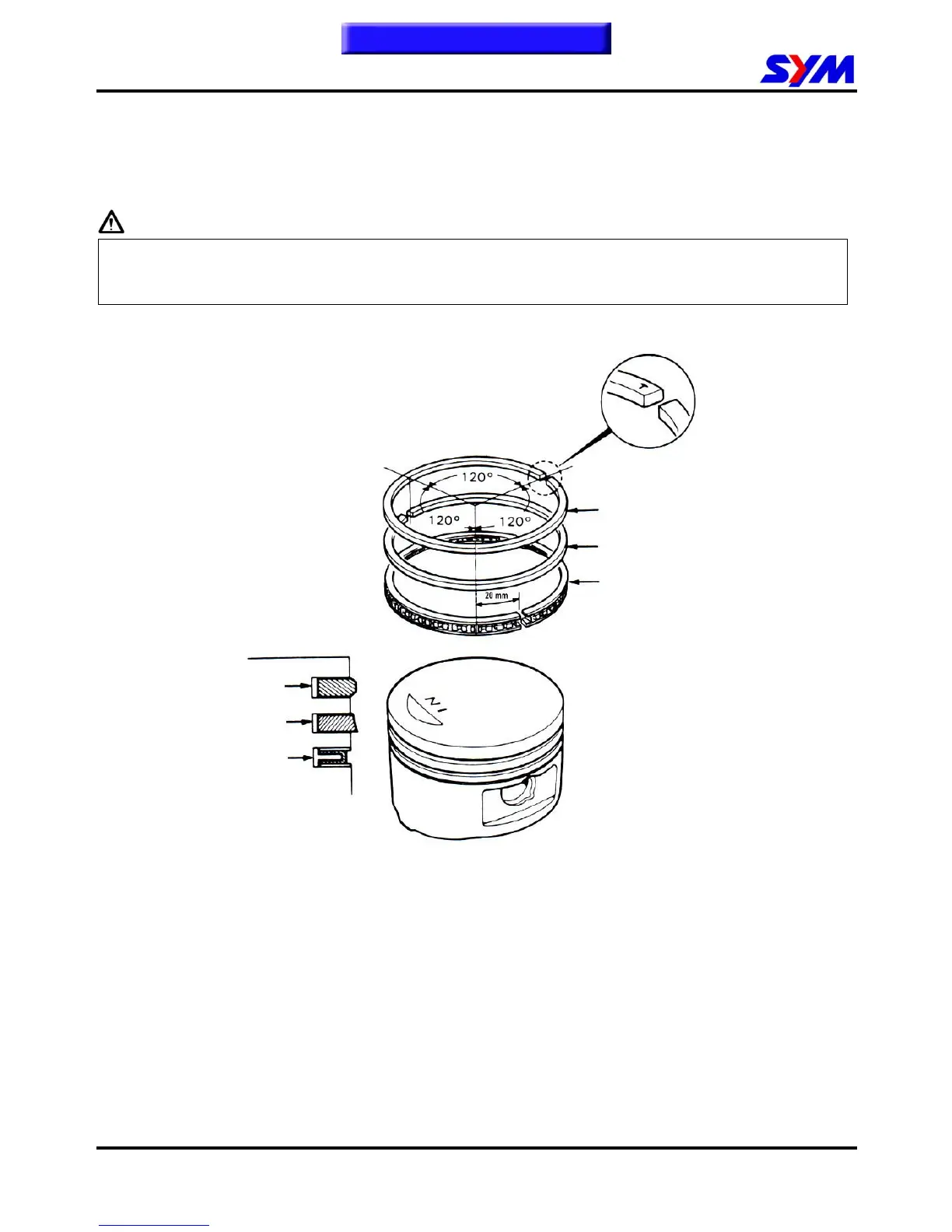

Piston Ring Installation
Clean up piston top, ring groove, and piston surface.
Install the piston ring onto piston carefully.
Place the openings of piston ring as diagram shown.
Caution
Do not damage piston and piston rings as installation.
All marks on the piston rings must be forwarded to up side.
Make sure that all piston rings can be rotated freely after installed.
Top ring
2
nd
ring
Oil ring
Top groove
2
nd
groove
Oil groove
