Sym JOYMAX 250 - V-Belt Driving System

8. V-Belt Driving System
8-1
Mechanism Diagram ························ 8-1
Maintenance Description·················· 8-2
Trouble Diagnosis ··························· 8-2
Left Crankcase Cover ······················ 8-3
Drive Belt ······································ 8-5
Drive Face ····································· 8-7
Clutch Outer / Driven Pulley············· 8-10

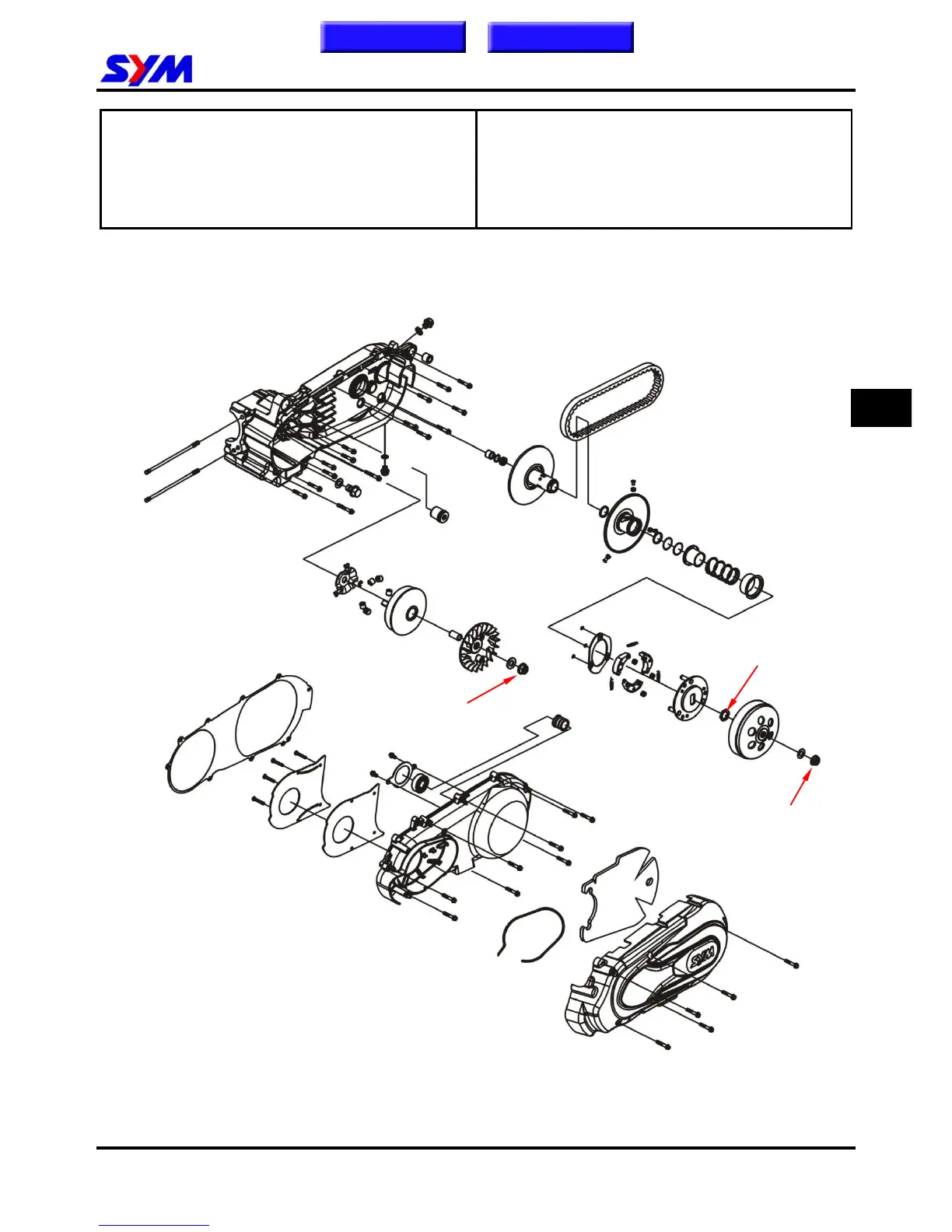

Mechanism Diagram
Home page
Contents
5.0~6.0kgf-m
5.0~6.0kgf-m
8.5~10.5kgf-m
