Symbol LS4278 - Cradle Signal Descriptions

LS4278 Product Reference Guide3-10
Cradle Signal Descriptions
The signal descriptions in Table 3-4 apply to the connector on the scanner and are for reference only.

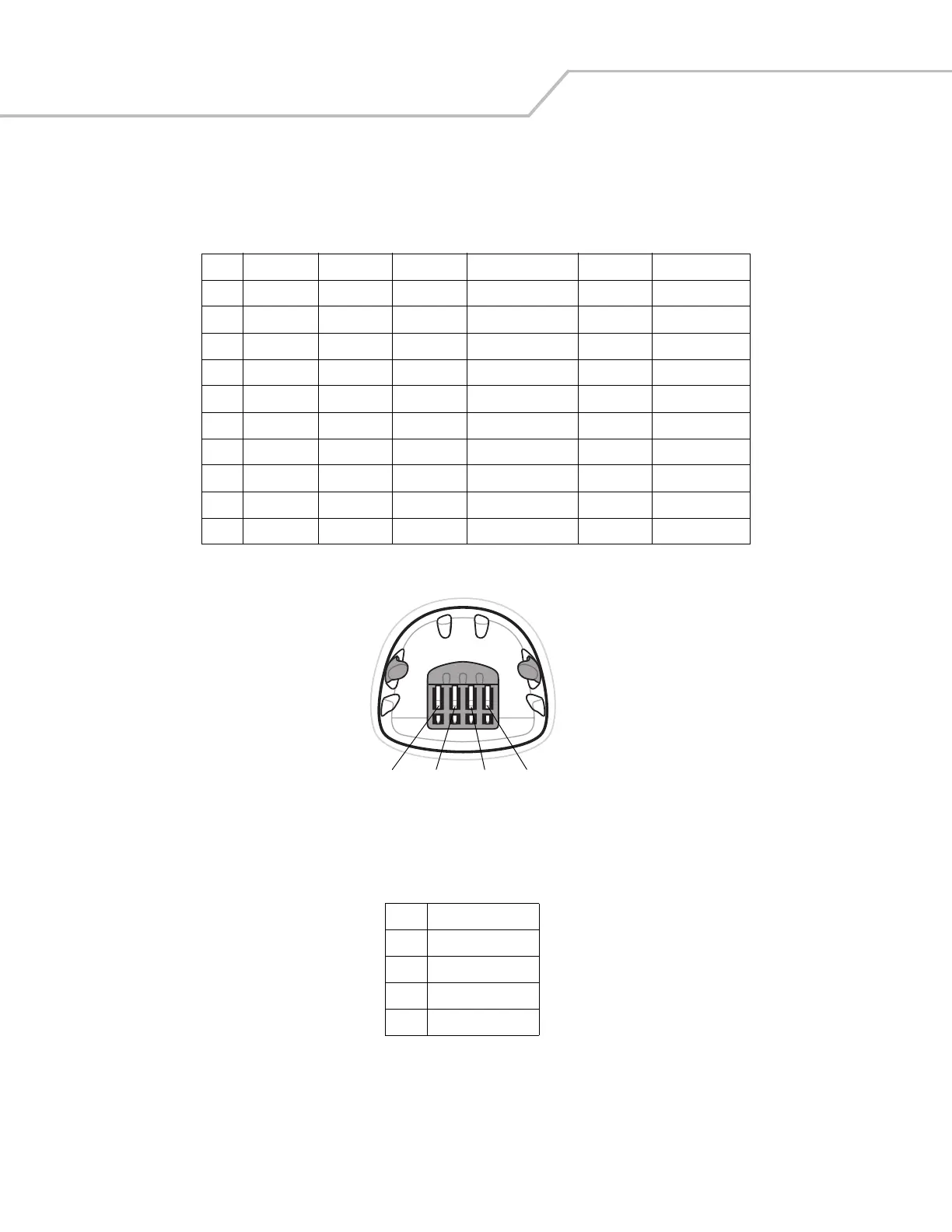

Figure 3-1 illustrates the positions of the cradle pins.
Figure 3-1. Cradle Pin Assignments
The signal descriptions in Table 3-5 apply to the connector from the scanner to the scanner cradle and are for reference only.
Table 3-4. Cradle Signal Pin-outs
Pin IBM Synapse RS-232 Keyboard Wedge Wand USB
1 Reserved SynClock Reserved Reserved Reserved Jump to Pin 6
2 Power Power Power Power Power Power
3 Ground Ground Ground Ground Ground Ground
4 IBM_A(+) Reserved TxD KeyClock DBP Reserved
5 Reserved Reserved RxD TermData CTS D +
6 IBM_B(-) SynData RTS KeyData RTS Jump to Pin 1
7 Reserved Reserved CTS TermClock Reserved D -
8 Reserved Reserved Reserved Reserved Reserved Reserved
9 N/A N/A N/A N/A N/A N/A
10 N/A N/A N/A N/A N/A N/A
Table 3-5. Cradle Pin-outs
Pin Description
1 CRADLE_TXD
2 VCC
3 GND
4 CRADLE_RXD
Pin 1
Pin 4 Pin 3 Pin 2
