Symmons Temptrol 2000 - Individual Parts

INDIVIDUAL PARTS INDIVIDUAL PARTS
COMPOSITE PARTS
COMPOSITE PARTS
T-1 Hot renewable seat
T-2 Cold seat O-ring
T-3 Cold renewable seat
T-5 Hot washer screw
T-6 Hot washer
T-7 Cold washer retainer
T-8 Cold washer
TA-10 Flow control spindle
T-11 Cap gasket
T-12A Cap assembly
T-16 Packing, O-ring and washer
T-17 Packing nut
T-19/20 Dome cover and lock nut
T-21C Diverter retainer
T-23A Diverter spindle (Model A)
(beige or gray)
T-23B Diverter spindle (Model B)
(black)
T-24 Spindle O-ring
T-26 Plaster shield
T-32 Handle screw with lock washer
T-33 Plug button
T-34 Limit stop with O-ring
T-35A Hot seat removal tool
T-35B Cold seat removal tool
T-52A Stop spindle assembly/
escutcheon screw retainer
T-55B Stop plaster shield
T-55C Stop plaster shield removal tool
T-143 Tub/shower dial/emblem
T-144 Shower dial/emblem
T-153 Diverter shaft clip
T-154 Diverter shaft
T3-27 Escutcheon (Model C)
T3-27B Escutcheon gasket
T3-27D Escutcheon (Model A and B)
T3-28 Escutcheon screw
T3-29 Dial/emblem assembly
T3-30 Diverter and/or volume handle
T3-31 INS Handle insert
T-52 Stop spindle assembly/
escutcheon screw retainer
(T-52A)
Stop plaster shield (T-55B)
T-101 Acrylic handle:
Handle screw (T-32)
Plug button (T-33)
TA-4 Hot seat (T-1)
Cold seat (T-3)
Cold seat O-ring (T-2)
TA-9 Hot washer screw (T-5)
Hot washer (T-6)
Cold washer retainer (T-7)
Cold washer (T-8)
Cap gasket (T-11)
TA-10 Spindle assembly
TA-25A Diverter/volume spindle (T-
23A)
O-ring (T-24) for Model A
tub/shower valve (beige
or gray)
TA-25B Volume spindle (T-23B)
O-ring (T-24) for Model B
shower valve (black)
T3-31 Temperature control handle:
Insert (T3-31 INS)
Handle screw (T-32)
Plug button (T3-33R)
T3-31L Loop style lever handle:
Insert (T3-31 INS)
Handle screw (T-32)
Plug button (T-33)
T3-31S Solid style lever handle:
Insert (T3-31 INS)
Handle screw (T-32)
Plug button (T-33)
T-1 T-2 T-3 T-5 T-6 T-7
T-21C
T-52A
T3-27D
T3-27
T3-30
T-154 T3-31 T-32
T3-28 (2)
T3-33R
T3-29T3-29K
(BP Series)
T-143
T-144
T-55B
TA-25A, TA-25B
T-23A
T-23B T-24
T-8
TA-10
FRO NT VIE W OF
DIV ERTER -VOLU ME
SPI NDLE
MAIN
SECTIO
N
OF VALVE
T-11 T-16
T-34
T-35A
T-35B
T-12A
T-17 T-19/20
TA-4 TA-9
INCLUDES T-11
T3-27B
T-55C
T3-31 INS
(for T3-31,
T3-31L, and
T3-31S only)
T-52
T-32 T-33T3-31L T3-31S T-101
T-153
T-65
(BP Series)
T-26
TO BE
DISCARDED
BEFORE
INSTALLING
TRIM

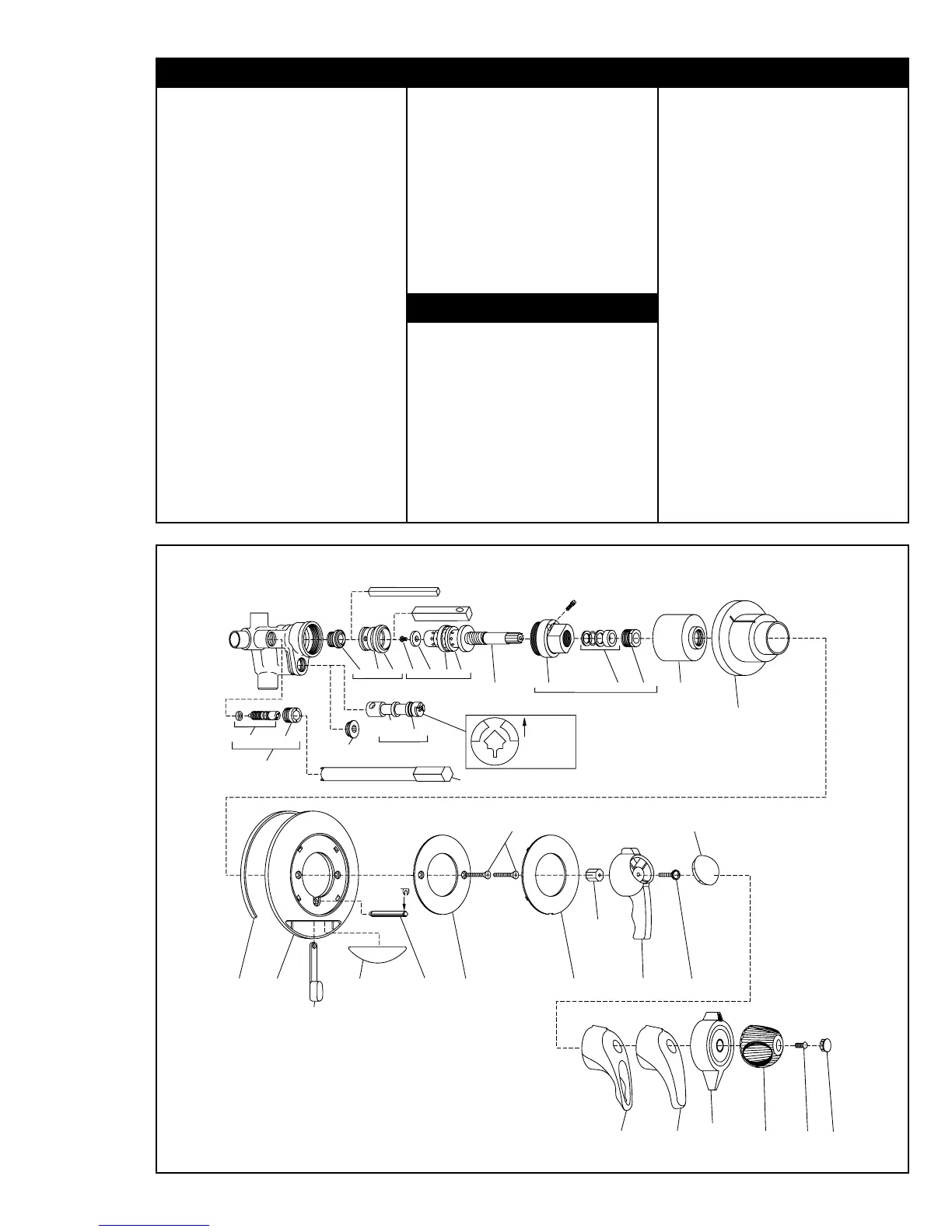

FIGURE 9
Parts Breakdown
