Symmons Temptrol 2000 - Back-to-Back Installation; Valve Operation; Temperature Control; Diverter and Volume Control (Model A)

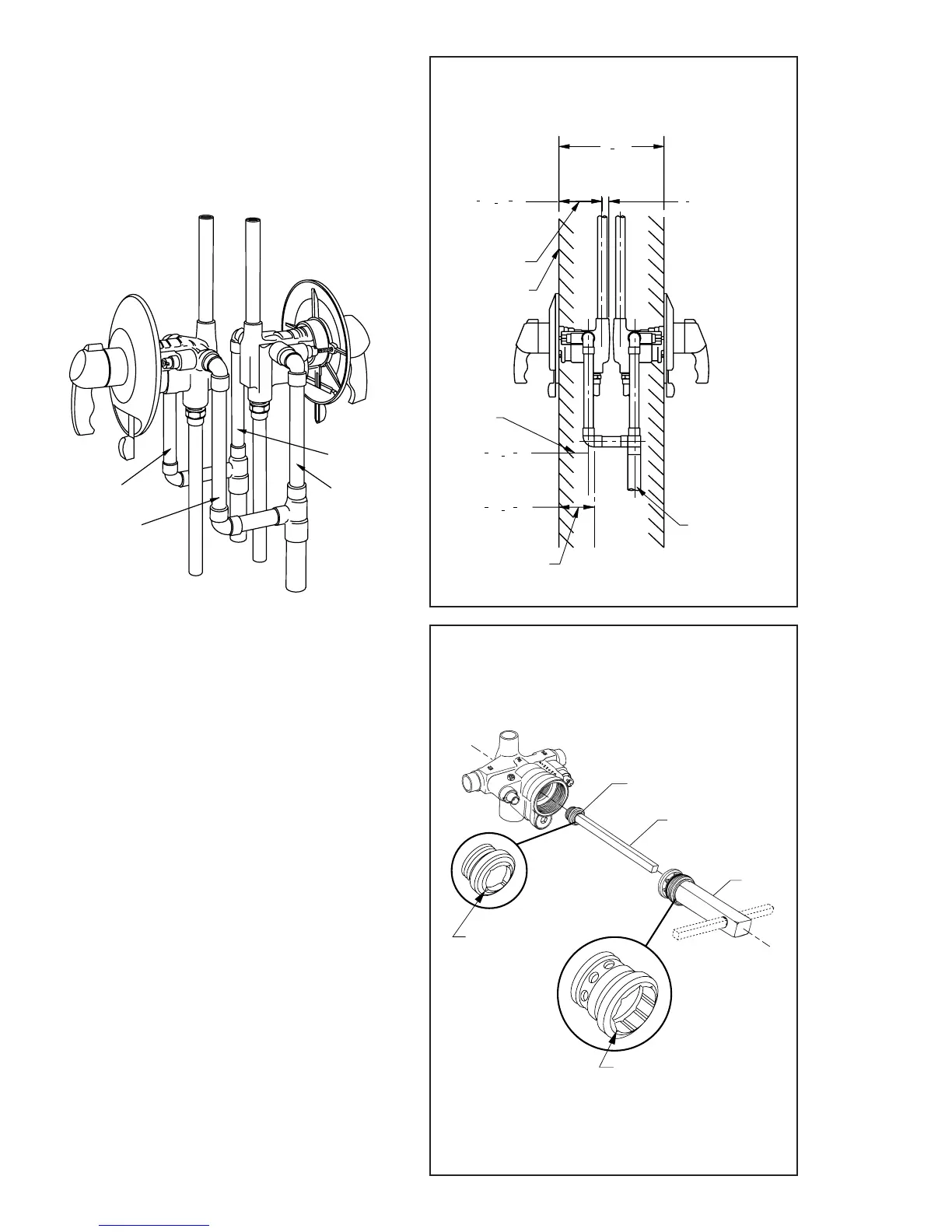

BACK TO BACK INSTALLATION
To simplify piping on back to back installations use one
standard valve (hot on left, cold on right) and one with
reverse coring (hot on right, cold on left) as shown in Figure
6 and 7. Order reverse core valve by adding the sufx
REV-X after the plate number. (e.g. S-25-2-REV-X Temptrol
®
2000 tub and shower unit with reverse coring.)
OPERATION OF VALVE
The main handle of the Temptrol 2000 valve is for control
of temperature only. From the OFF position, the handle
is turned counter-clockwise through a minimum cold posi-
tion, through a warm and hot position for a maximum
turn of approximately one revolution. This allows for innite
temperature adjustments to suit the requirements of any user.
Model A (tub and shower) is equipped with a combination
diverter and volume control. The small lever handle below
the temperature control handle can be moved to the left
for tub ow and to the right for shower ow. For volume
reduction in either tub or shower position turn lever handle
slowly toward the center or vertical position, and obtain any
desired volume ow.
Model B (shower only) is equipped with a built-in volume
control. The small lever handle below the temperature con-
trol handle can be moved from left to right to obtain any
desired degree of water volume.
Model C (tub or shower) does not have the added feature of
volume control built into the valve.
CARE AND CLEANING
The lustrous nish on your Temptrol 2000 valve should be
treated with care. It can be readily damaged by improper
handling or abusive treatment. To clean the nish wipe gently
with a soft damp cloth and blot dry with a soft towel. Use
only a mild soap solution if required. DO NOT USE ABRA-
SIVE CLEANERS. USE OF POLISH, ABRASIVE CLEAN-
ERS, SOLVENTS OR ACID CLEANERS WILL DAMAGE
THE FINISH AND VOID THE SYMMONS WARRANTY.
inlets
hot and cold
shower

discharge
finished wall
COLD
tub discharge
2
3
8
''
1
2
''
6
1
4
''
REVERSE
CORE 
VALVE
STANDARD
VALVE
3
1
8
''
MINIMUM WALL
THICKNESS
1
2
1
2
''
+
+
''
2
5
8
''
1
2
+
''
60mm
67mm
79mm
13mm
159mm
NOTCH
T-35A
T-35B
EIGHT BROACHED NOTCHES
TO ENGAGE FOUR CORNERS

OF COLD SEAT TOOL IN TWO

POSITIONS.
FOUR BROACHED 
NOTCHES TO 
ENGAGE FOUR 
CORNERS
OF HOT SEAT
TOOL.
FIGURE 7
Back to Back Installation
FIGURE 8
Seat Removal Tools
HOT
COLD
COLD
HOT
FIGURE 6
