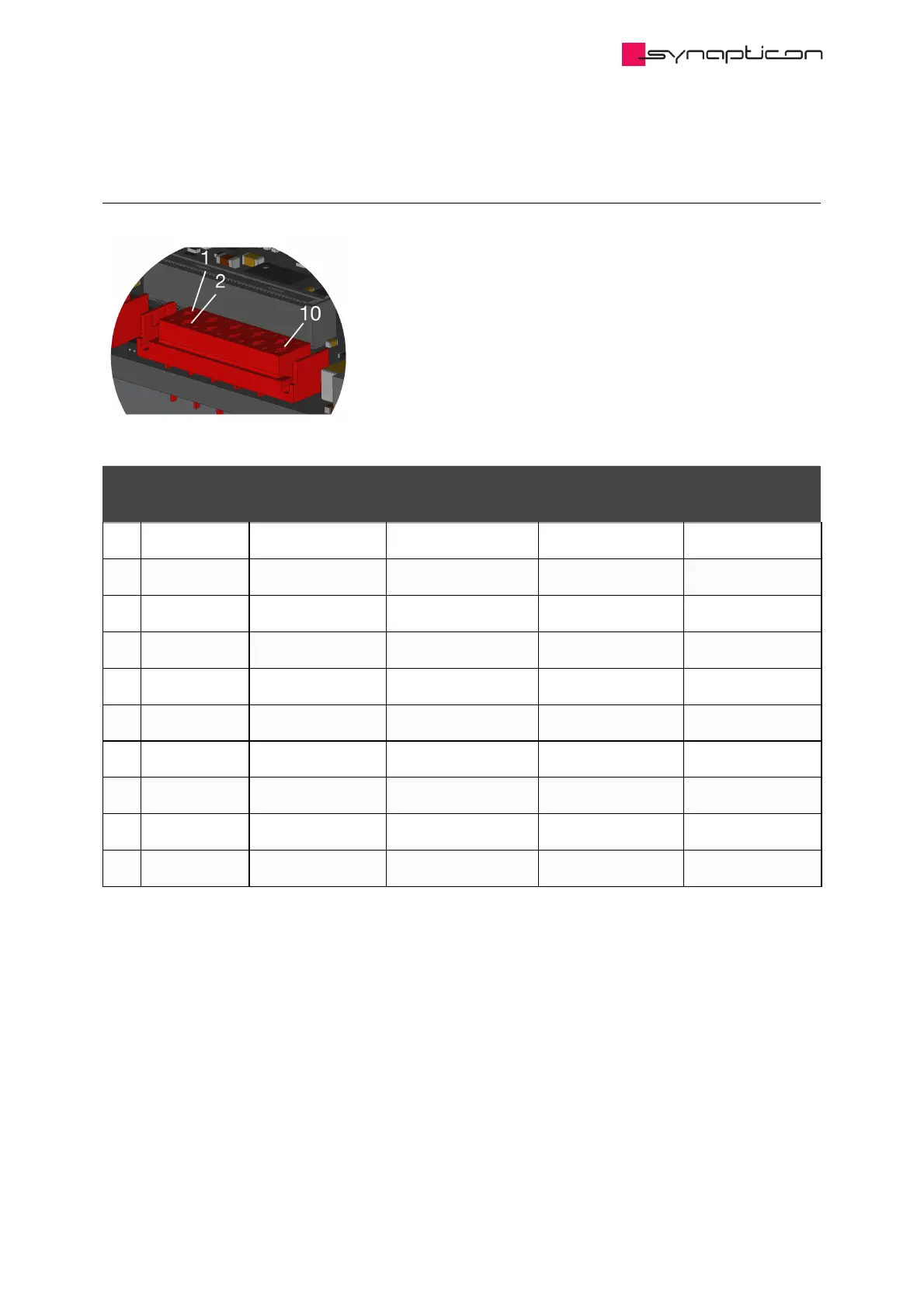

1.4.1.3.2 Encoder Port 2

HALL ABI

(differential)*

ABI (single-

ended)**

BiSS * SSI *

1 – – – MA- Clock-

2 5 V *** 5 V *** 5 V *** 5 V *** 5 V ***

3 Ground Ground Ground Ground Ground

4 – – – MA+ Clock+

5 C/H3 A- A SLO- Data-

6 – A+ – SLO+ Data+

7 B/H2 B- B – –

8 – B+ – – –

9 A/H1 I- I – –

10 – I+ – – –

* This is a differential line according to RS422/RS485 standards

** This is a single-ended TTL line with 1 kOhm pull-up resistors

*** This is a 5 V supply that can provide up to 250 mA for external use.

The supply is protected against short to ground and keeps the current below 400 mA in a continuous

short.
