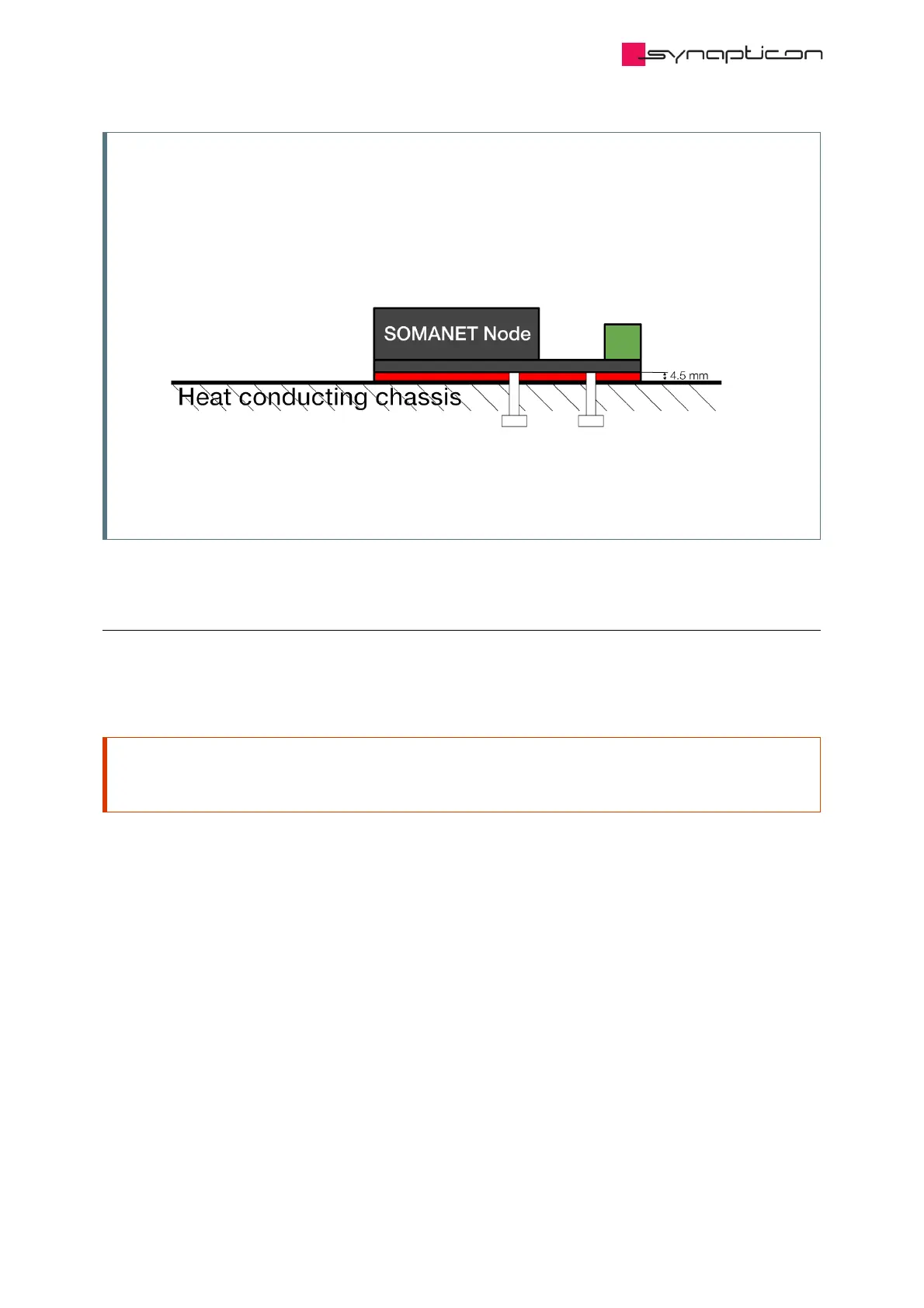

Note
Please ensure to use as much of the available thread length as possible for tightening the Node
to prevent damage to the thread.
1.4.2.4 Interference with magnetic fields
Please consider the placement of the servo drive carefully when designing the motion control
application. It has become evident that the motor’s magnetic field has an impact on the servo drive’s
performance.
Attention
Please also consider the magnetic fields that emanate from the brake.
These are the preferred arrangements:
1. At any position but shielded with a Faraday’s cage
2. Behind the motor
3. Beside the motor but shielded from the motor’s magnetic field with a plate consisting of a magnetic
shielding material such as steel or Mu-Metal.
