1.4.1.3 Encoders and IO

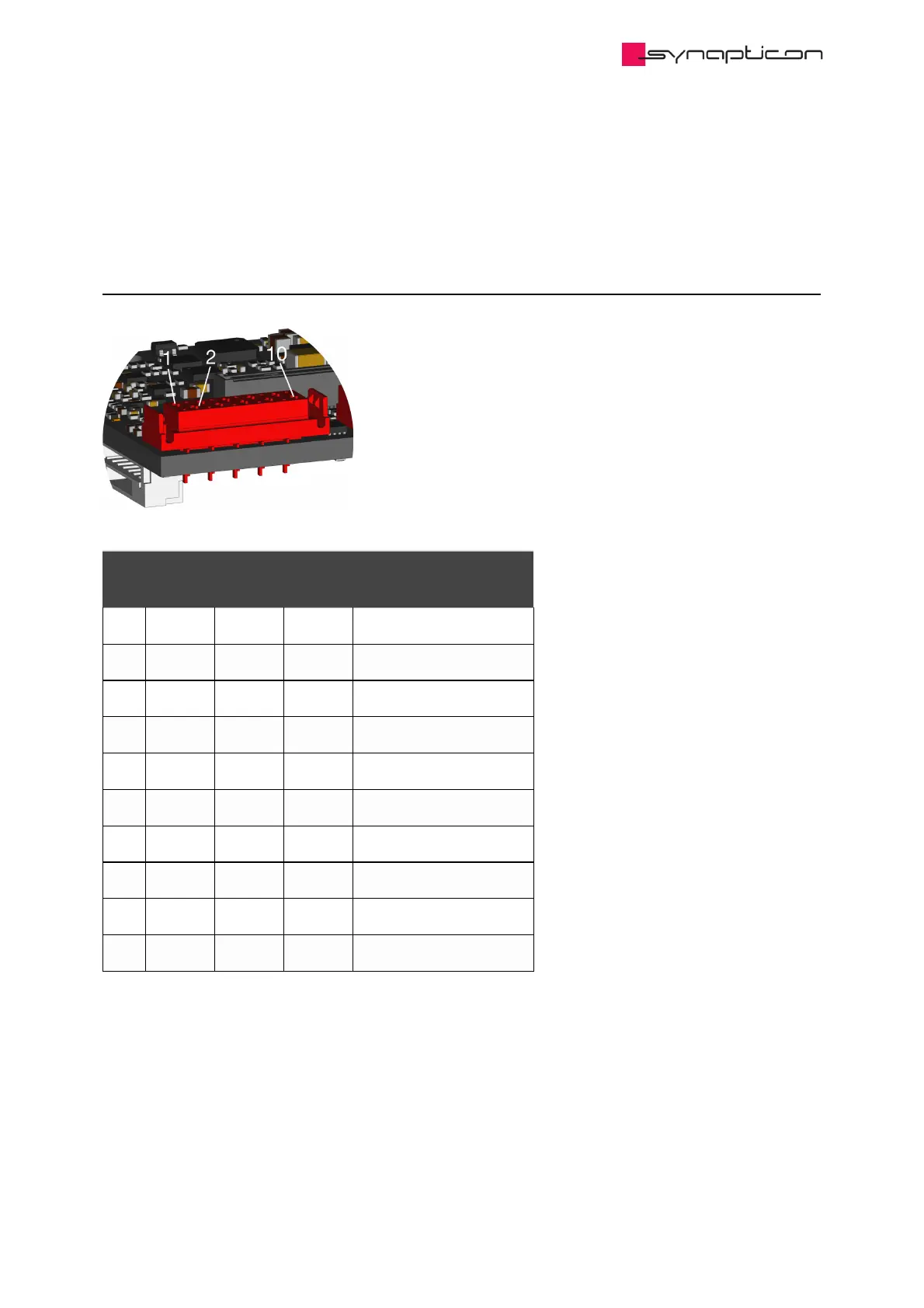

1.4.1.3.1 Encoder Port 1

ABI * BiSS * SSI * Half-Duplex / A-

Format *

1 – MA- Clock- SD- / A

2 5 V ** 5 V ** 5 V ** 5 V **

3 Ground Ground Ground Ground

4 – MA+ Clock+ SD+ / B

5 A- SLO- Data- –

6 A+ SLO+ Data+ –

7 B- – – –

8 B+ – – –

9 I- – – –

10 I+ – – –

* This is a differential line according to RS422/RS485 standards

** This is a 5 V supply that can provide up to 250 mA for external use.

The supply is protected against short to ground and keeps the current below 400 mA in a continuous

short.

Hardware Manuals / SOMANET Node / SOMANET Node rev. E.1
