Note

Each Digital IO needs to be configured as a Digital Input or Output via object 0x2210 (“GPIO”).

The object can also be used to activate a pull-down resistor.

Changes may require to powercycle the servo drive.

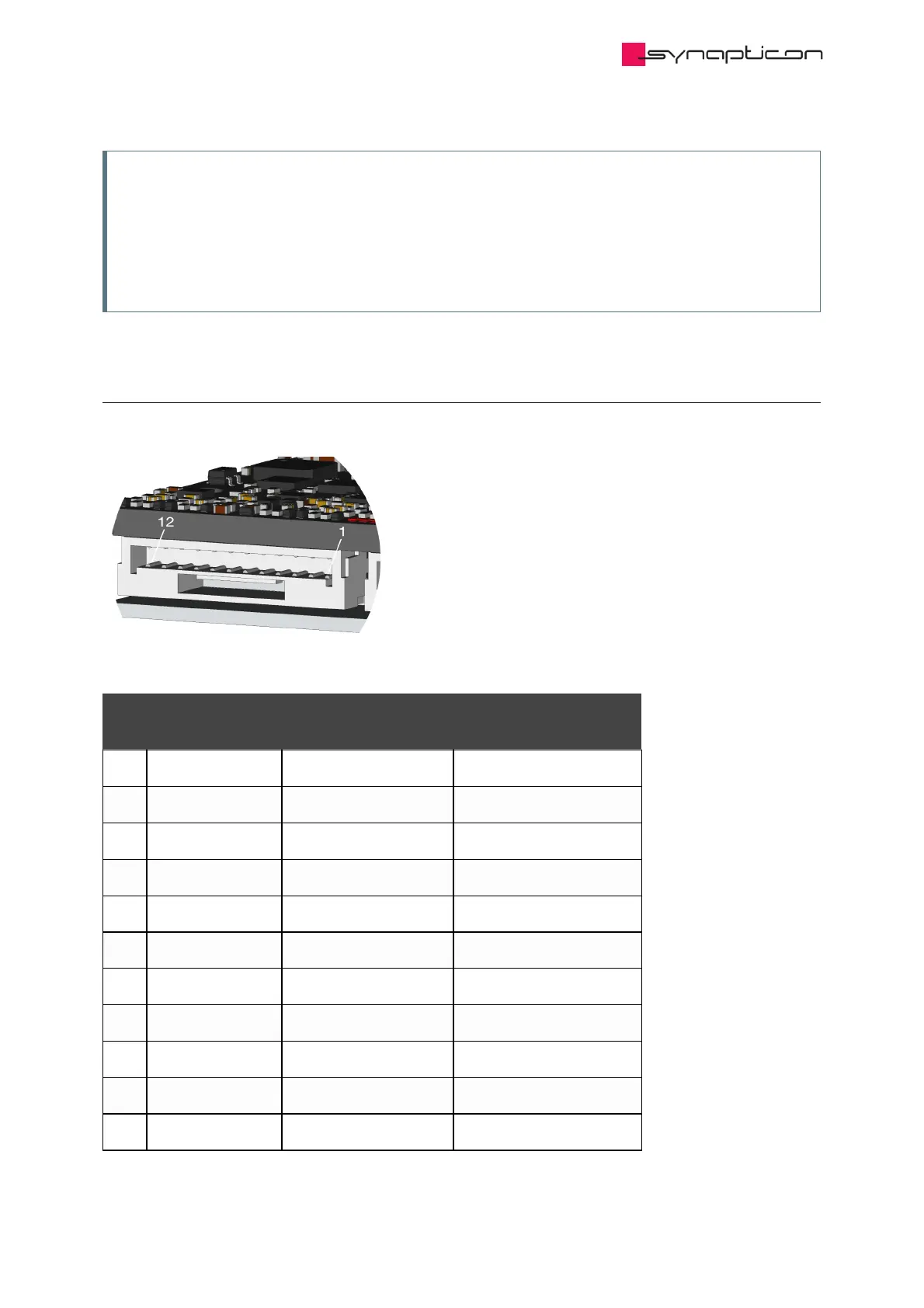

1.4.1.3.4 Analog IN

Default Setting * Object Mapping

1 –

2 Analog Input 1 - Connect to Ground **

3 Analog Input 1 + Single-ended 0-10 V Analog input 1 (0x2401)

4 Ground

5 Analog Input 2 - Connect to Ground **

6 Analog Input 2 + Single-ended 0-10 V Analog input 2 (0x2402)

7 5 V ***

8 10 V ****

9 Analog Input 3 - Differential ±5 V Analog input 3 (0x2403)

10 Analog Input 3 + Differential ±5 V Analog input 3 (0x2403)

11 Analog Input 4 - Differential ±5 V Analog input 4 (0x2404)

Hardware Manuals / SOMANET Node / SOMANET Node rev. E.1
