MODEL SPECIFIC REQUIREMENTS & INSTALLATION
Model Specic Plumbing Requirements:
Both the MVP Hydra and MVP machines require one incoming water source. For the MVP Hydra machines,
the incoming water passes through a manifold (this was part of the line pressure regulator) from xx-xx-
3854 each pump has a regulator. Once again, follow the color coding for proper installaon of the hoses
from the output of each pump to the machine. See the pictures below for MVP Hydra compression line
color matching. For the MVP machines, the incoming water routes directly to the single pump assembly.

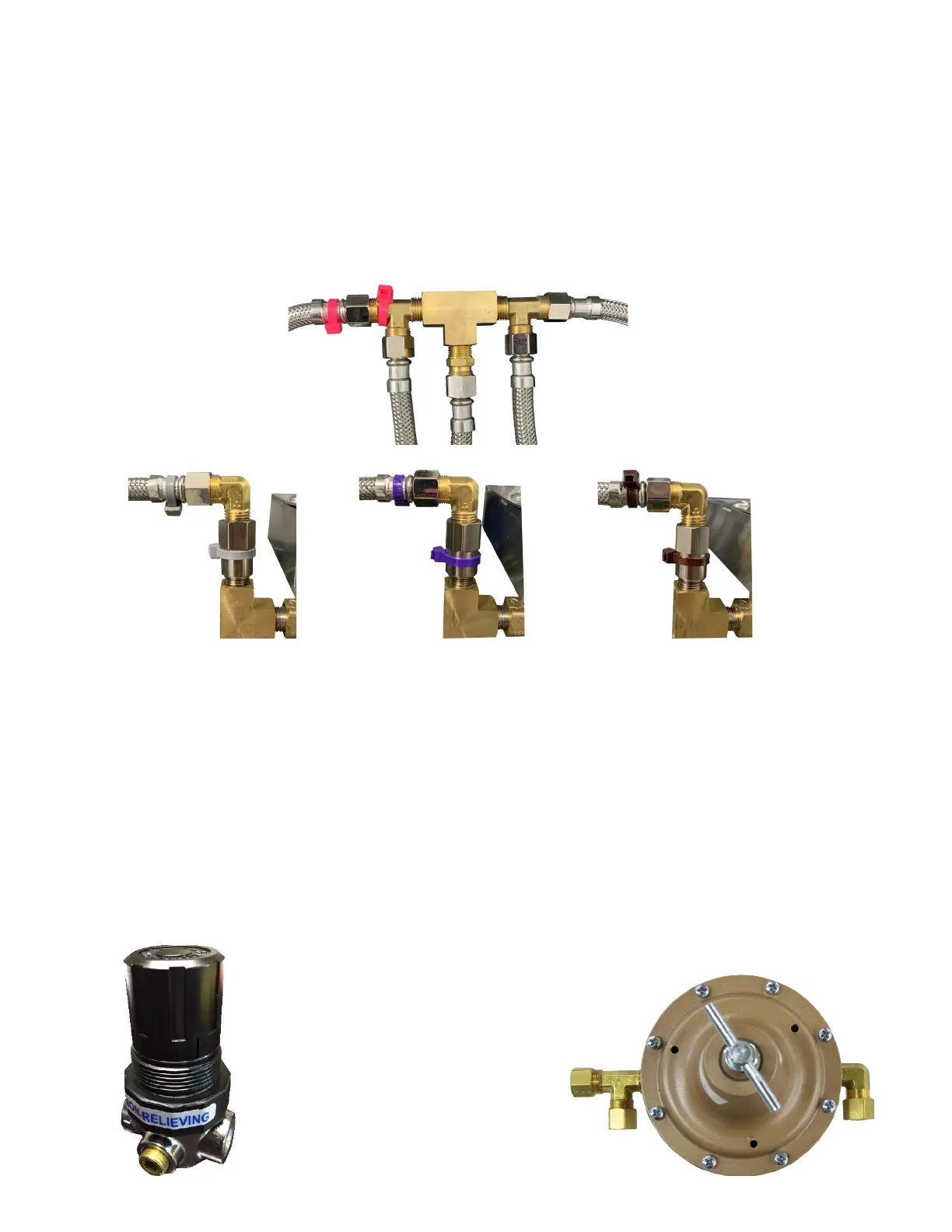

MVP Hydra Manifold
Steam Tank Line (Pink Zip
Tie) is Matched.
Group 1 Pump - Grey Zip
Tie is Matched
Group 2 Pump - Purple
Zip Tie is Matched
Group 3 Pump - Brown
Zip Tie is Matched
Pressure Regulators:
MVP Hydras come with line pressure regulators built into the bypass pump assemblies. MVP machines do
not come standard with a line pressure regulator but it can be installed along with a manifold as an acces-
sory to the machine. The pressure regulator is used to control the stage 1 preinfusion pressure. It comes
factory set to the maximum seng of 50 psi. For more on seng up the dierent pressure stages please
refer to page 19.
Mini Pressure Regulator
Disconnued Was
Pressure Regulator

Synesso MVP Hydra Specifications

General

Pump Type	Rotary
PID Temperature Control	Yes
Pre-infusion	Yes
Volumetric Dosing	Yes
Boiler Material	Stainless Steel
Pressure Profiling	Yes
Material	Stainless Steel
Water Reservoir	Direct plumb only
