Mounting
2 Place Firestar on the mounting surface so that slots “A” and hole “B” on the base plate line up with
the tapped holes in the mounting surface.
3 Insert 1/4–20 × 5/8" UNC capscrews through Firestar’s base plate into the threaded holes of the
mounting surface. Turn the screws by hand until the threads engage.
4 Tighten all three capscrews to a torque of 6 ft lb
f
(8 N m) maximum.
Fastening from below
To fasten Firestar to a mounting surface from below, perform the following steps:
1 Refer to the appropriate outline and mounting drawing for dimensions and then drill three 0.261"
(6.6 mm) diameter holes into your mounting surface. Hole locations should correspond to the
threaded holes labeled “C” shown in Figure 1-3.
Figure 1-3 Fastening from below
2 Place Firestar on the mounting surface so that the threaded holes on the base plate (labeled “C” in
Figure 1-3) line up with the holes drilled through the mounting surface.
3 Insert 1/4–20 × 5/8" UNC capscrews through the mounting surface into the threaded holes of Fire-
star’s base plate. Turn the screws by hand until the threads engage.
4 Tighten all three capscrews to a torque of 6 ft lb
f
(8 N m) maximum.

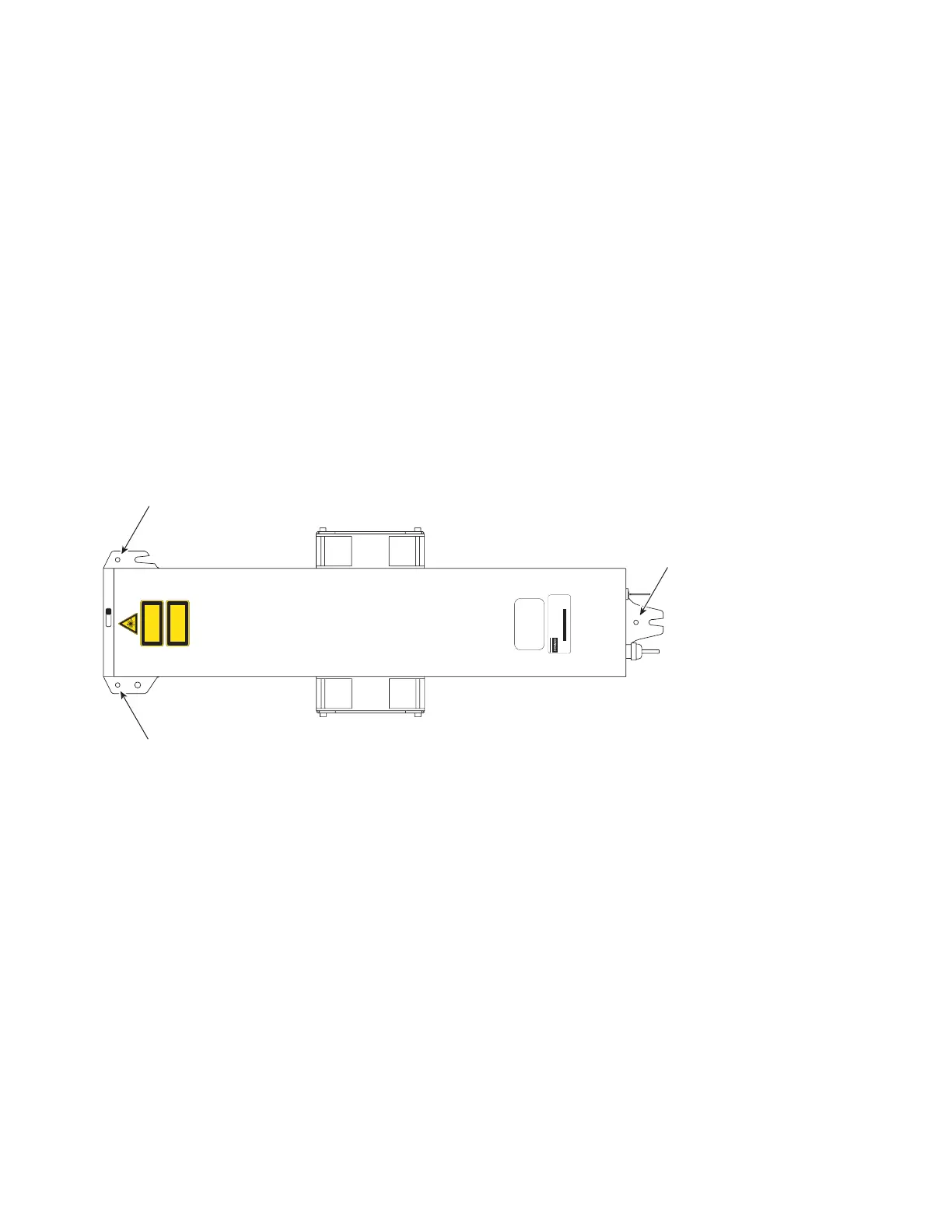

Top View
(v40 Fan-Cooled Model)
CAUTION
CONDENSATION AND
WATER DAMAGE CAN
OCCUR IF COOLING WATER
IS BELOW DEW POINT.
SEE OPERATION MANUAL.
INVISIBLE LASER RADIATION
AVOID EYE OR SKIN EXPOSURE TO
DIRECT OR SCATTERED RADIATION
CLASS 4 LASER PRODUCT
EN-60825-1, 2007
150 WATTS MAX
10510-10650 nm
C
C
C
MODEL #: FSV40KFD SERIAL #: FS40204082943 TESTED AT: 30V MFG: July 22, 2008
Complies with IEC 60825-1 (2007) and 21 CFR 1040.10 except
for deviations pursuant to Laser Notice No. 50 dated June 24, 2007.
SYNRAD, Inc. 4600 Campus Place, Mukilteo WA 98275 425.349.3500
