operation
45
SYNRAD OEM v40 Operator’s Manual Version 4
OEM controls and indicators
The OEM controls and indicators section includes subsections:
OEM v40 front panel
OEM v40 rear panel
OEM v40 air side panel
OEM v40 front panel

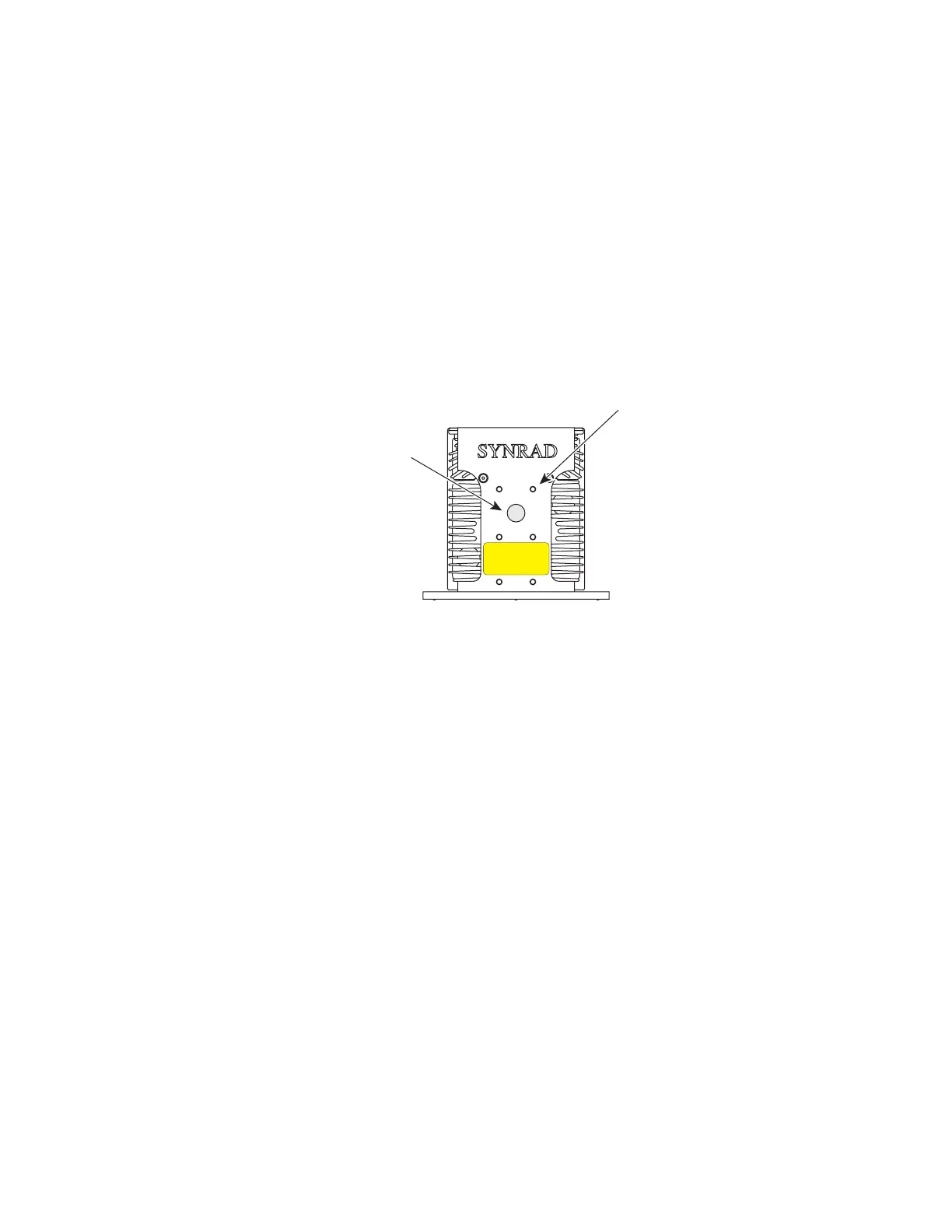

Figure 3-3 OEM v40 front panel controls and indicators
1
Laser Aperture – provides an opening in Firestars front panel from which the beam exits.
2
Optical Accessories Mounting – provides six threaded holes (8–32 UNC) for mounting optional
beam delivery components available from SYNRAD. Because excessive weight may damage the
laser, consult SYNRAD before mounting components not specically designed as Firestar options.
Refer to Firestar package outline drawings in the Technical Reference chapter for mounting hole
dimensions.
3
DP Power Connector (not shown) – standard except on OEM air-cooled (SAB) models. Provides
a convenient +5 VDC, 50 mA receptacle to power a visible red diode pointer (available from
SYNRAD as an optional accessory).
Note: When mounting optical components to v40 lasers, the 8–32 UNC fasteners must extend no
further than 0.19" (4.8 mm) into the lasers faceplate.
(Air-Cooled v40 OEM Shown)
1
2
AVOID EXPOSURE
Invisible laser radiation
is emitted from
this aperture.
