SYNRAD OEM v40 Operator’s Manual Version 4
Troubleshooting
Functional block diagram

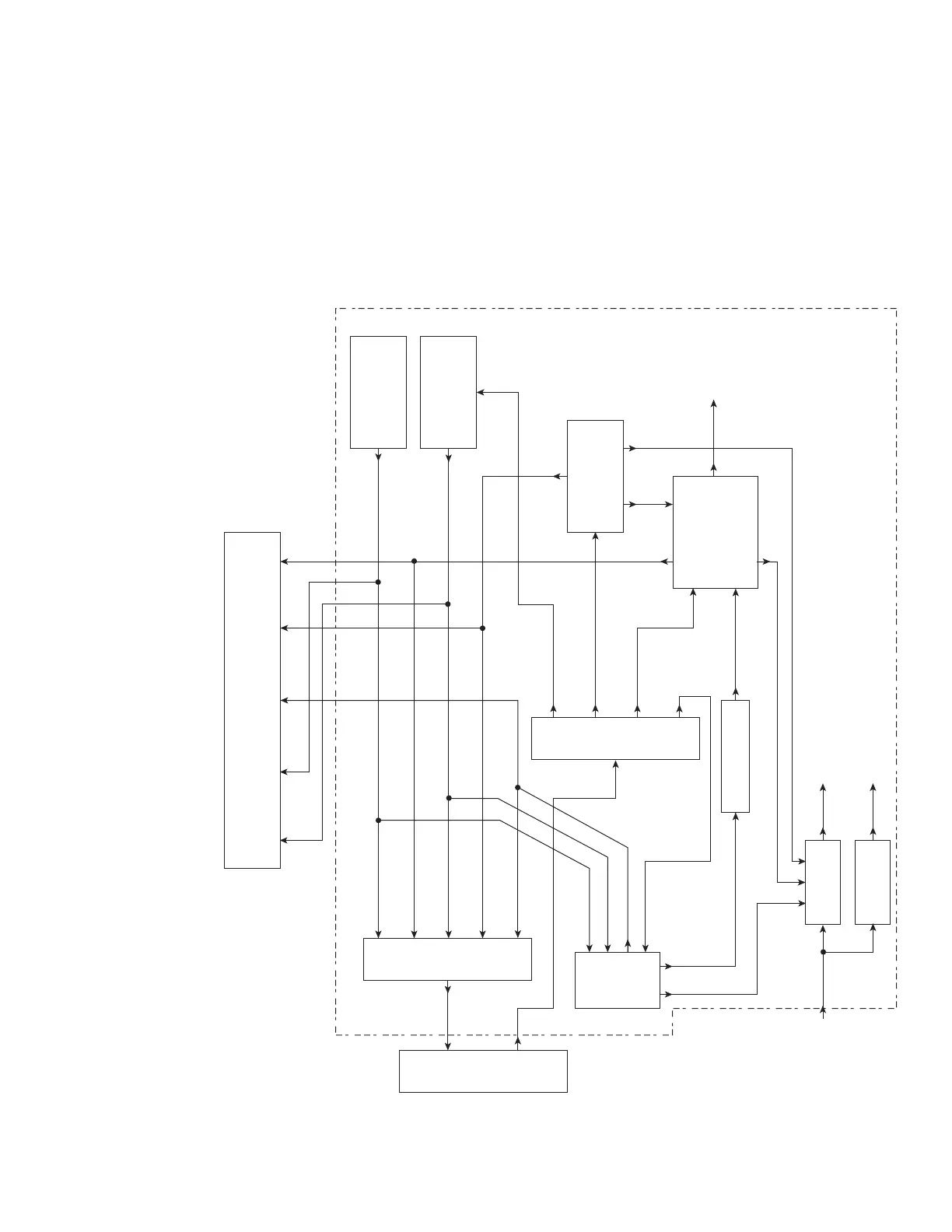

Figure below is a functional block diagram illustrating the v40’s control architecture.
Figure 5-2 v40 functional block diagram
OVER
TEMPERATURE
DETECTOR
REMOTE
INTERLOCK
DETECTOR
STATUS INDICATORS
INT
TMP
RDY
SHT
LASE
SHUTTER
CONTROL
CATGEN
DELAY TIMER
30 VDC
INPUT
DB15 USER I/O
CONNECTOR
POWER
ON AND
FAULT
DETECT
OUTPUT
ISOLATION
INPUT
ISOLATION
TO RF DRIVER BOARDS
TO CONTROL BOARD
PWM OUT
OVER TEMPERATURE LASER ACTIVE
LASE
INDICATOR
INTERLOCK OPEN
REMOTE INTERLOCK SHUTTER OPEN REQUEST
SHUTTER OPEN
VOLTAGE
REGULATOR
DC POWER
SWITCH
FAULT
PWM INPUT
REMOTE RESET/START REQUEST
READY
LASER READY
