ERW maintenance | 4-2

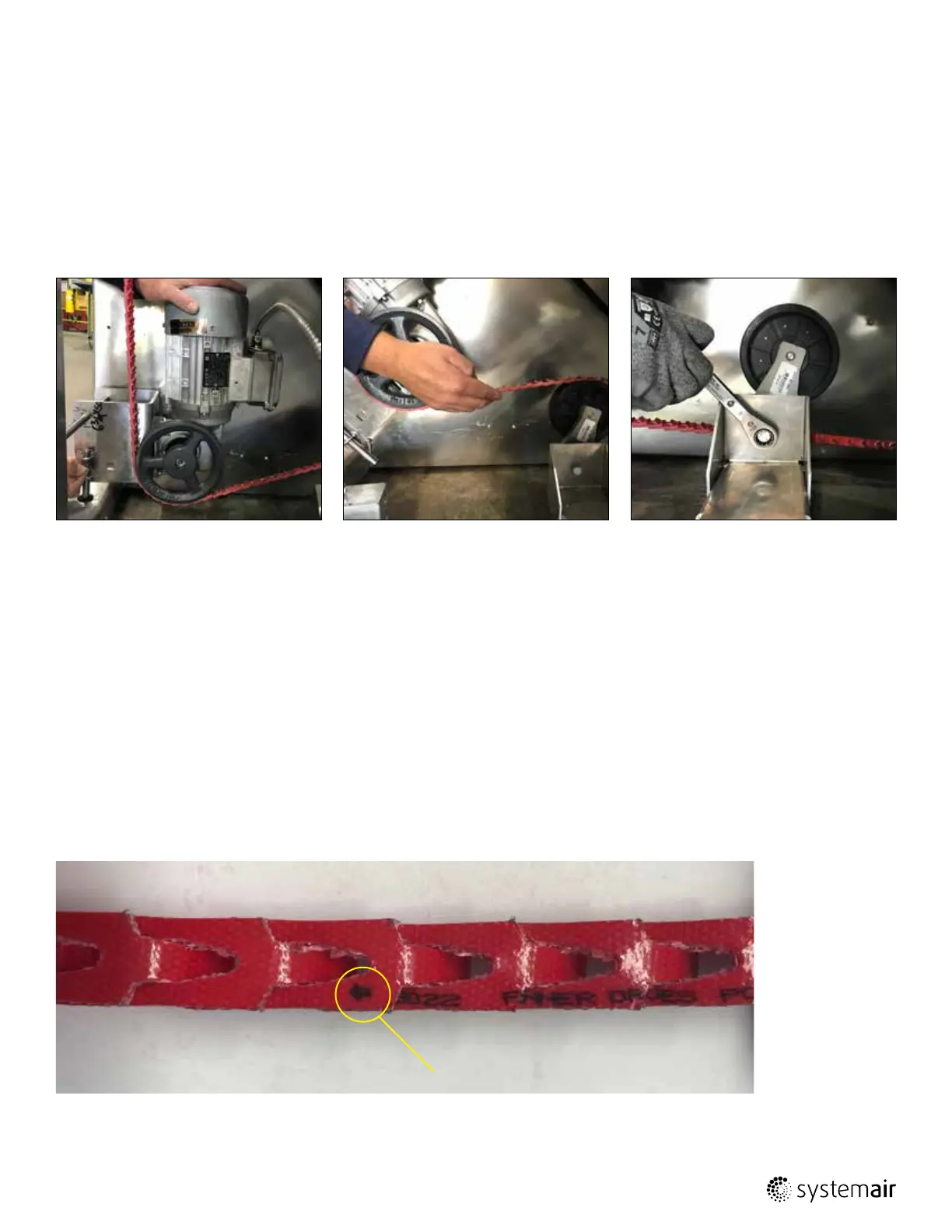

Belt tensioner replacement
The belt tensioner replacement is achieved by following these simple steps:
1) Lift the locking pin while pushing down on the motor to release the belt tension (a).
2) Incline the motor to remove the belt around the tensioner (b).
3) Unscrew the belt tensioner (c).
4) Install a new tensioner with a small angle inclined away from the motor (about 5-degree angle).
5) Re-install the belt (b), place the motor to its initial position (a) and insert the locking pin.
a b c
4.3 ERW Belt
The wheel driving belt is a high-performance link belt designed for easy installation without the use of special tools. (For more
information, go to: www.fennerdrives.com/high_performance_ composite_vbelts/powertwist_home.aspx).
Innergy tech recommends checking the belt after a month of operation and once a year through a general maintenance check. The
inspection should focus on belt wear and correct tension (see belt tensioner section). If improper tension is noticed, simply reduce the
length of the belt by removing a few links.
If the belt needs replacement, contact Innergy tech for a new belt (Innergy tech will need the serial number and the size of the wheel).
The belt is directional; it must be installed with the directional arrows pointing in the direction of the wheel rotation.
Directional arrow
