Geniox Air Handling Unit - User Manual | 3060386
4-3 | ERW maintenance
Belt Installation
To install a spare belt or reduce the length of the current belt, follow these 5 easy steps:

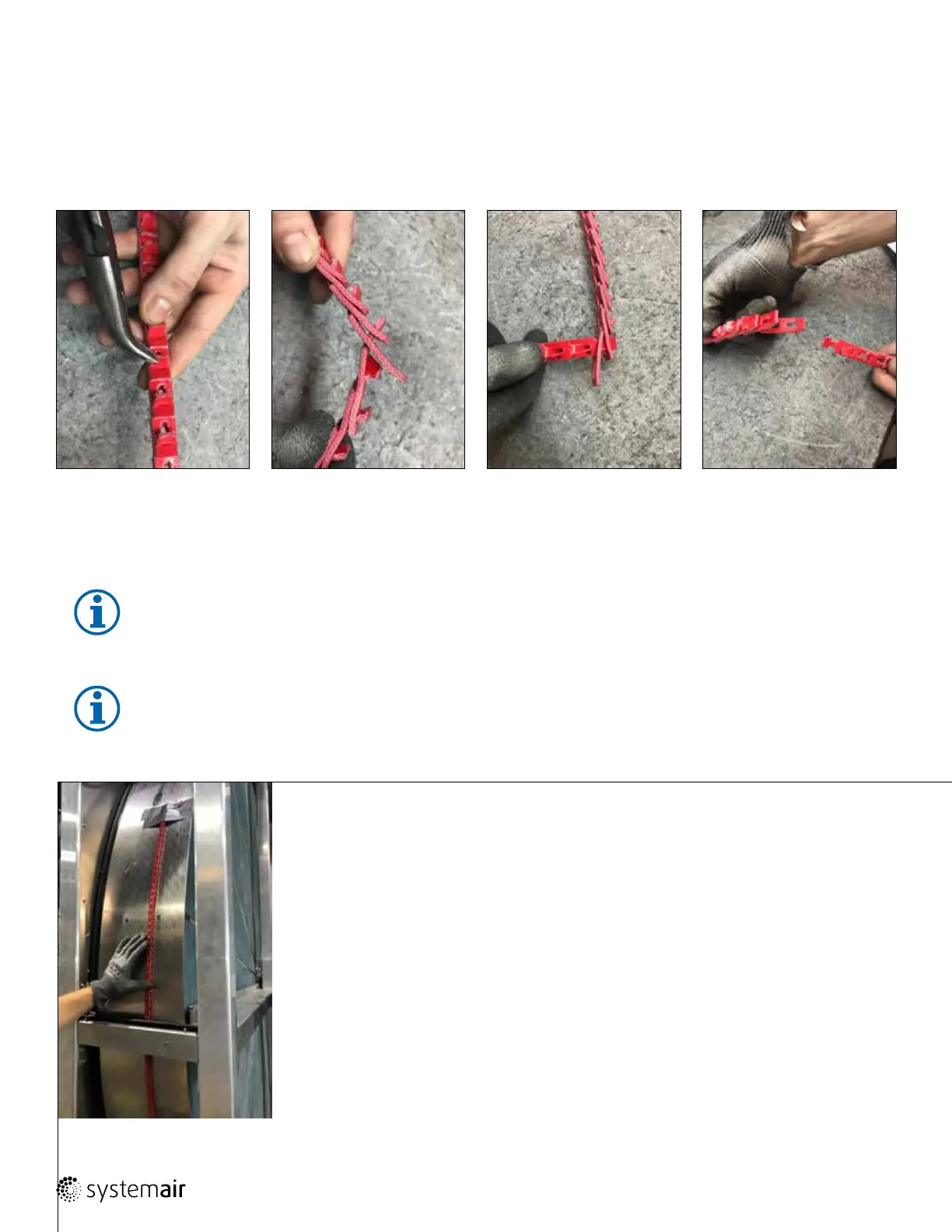

1. Open/separate the belt by twisting the link tabs sideways and pulling the surplus out of the belt (see image below). If needed, adjust
the length of the belt by replacing or removing the undesired links.
a. Twist tab at a 90° angle b. Pull link out c. Twist belt end d. Pull out belt end
Note:
The wheel should turn freely if the belt is removed.
Note:
The tabs must be against the wheel with the belt’s rotation arrows in the same direction of the yellow arrow on the
wheel frame.
2. Tape one end of the belt on the perimeter of the wheel. Turn the wheel by hand for one complete revolution.
Figure: Belt Installation
