Page 65
English
P1-P6
VLS
Weight distribution (kg)
Operating Shipping
coordinates*
CG
Al/Cu F1 F2 F3 F4 F5 F6
Weights
Weights
coordinates
( kg ) ( kg ) ( kg ) ( kg ) ( kg ) ( kg ) ( kg ) ( kg ) a (mm)* b (mm) c (mm) d (mm) x (mm) y (mm)
704 328 251 292 206 245 168 1490 1478 1044 1985 1629 190 487 2189
804 372 272 325 216 270 170 1625 1611 1044 1985 1629 190 471 2217
904 410 289 361 229 301 180 1770 1745 1044 1985 1629 190 460 2211
1004 426 300 373 234 307 180 1820 1795 1044 1985 1629 190 468 2216
1104 428 302 375 237 310 183 1835 1810 1044 1985 1629 190 478 2205
1204 431 303 376 237 310 183 1840 1815 1044 1985 1629 190 478 2206
VLS 704 - 1204 Al/Cu BLN/LN Version
P1-P6
VLH
Weight distribution (kg)
Operating Shipping
coordinates*
CG
Al/Cu F1 F2 F3 F4 F5 F6
Weights
Weights
coordinates
( kg ) ( kg ) ( kg ) ( kg ) ( kg ) ( kg ) ( kg ) ( kg ) a (mm)* b (mm) c (mm) d (mm) x (mm) y (mm)
704 347 293 310 248 265 211 1675 1663 1044 1985 1629 190 480 2200
804 393 316 347 260 291 214 1820 1806 1044 1985 1629 190 480 2200
904 431 337 383 278 324 230 1980 1955 1044 1985 1629 190 480 2200
1004 458 367 405 303 341 250 2125 2100 1044 1985 1629 190 480 2200
1104 468 387 416 322 351 270 2215 2190 1044 1985 1629 190 480 2200
1204 471 388 418 324 354 271 2225 2200 1044 1985 1629 190 480 2200
VLH 704 - 1204 Al/Cu BLN/LN/ELN/HT Version
VLC 704 - 1204 Al/Cu BLN/LN Version
*
Dimensions are referred to unit with antivibration mounted isolators.
Technical data
VLS/VLH/VLC 704-1204 BLN/LN/ELN/HT Version

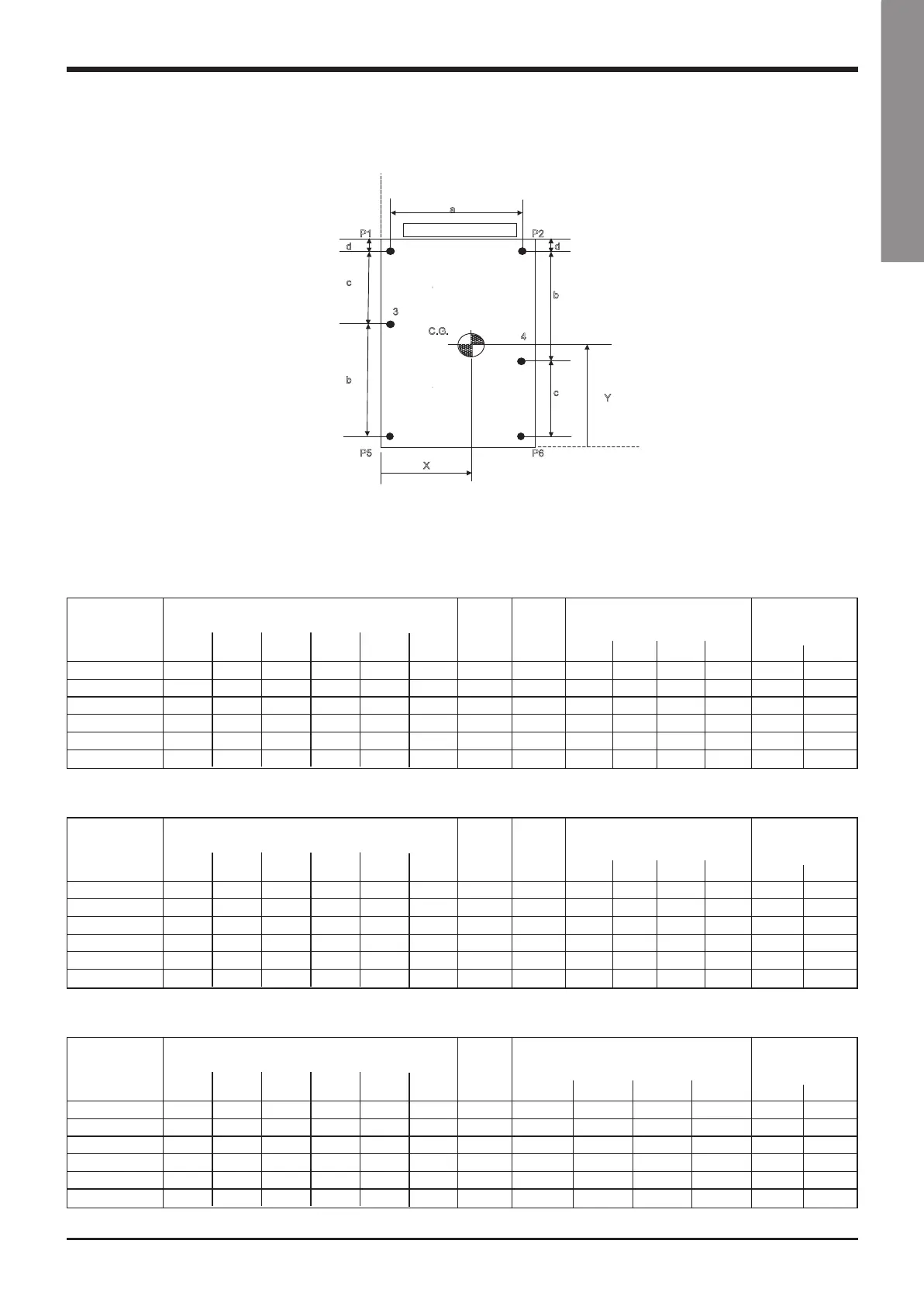

P1 - P6 Unit positions
P1-P6
VLC
Weight distribution (kg) Shipping
coordinates*
CG
Al/Cu F1 F2 F3 F4 F5 F6
Weights
coordinates
( kg ) ( kg ) ( kg ) ( kg ) ( kg ) ( kg ) ( kg ) a (mm)* b (mm) c (mm) d (mm) x (mm) y (mm)
704 311 250 264 192 206 144 1367 1044 1985 1629 190 475 2286
804 355 272 296 202 226 143 1494 1044 1985 1629 190 459 2321
904 383 293 315 211 233 143 1578 1044 1985 1629 190 456 2353
1004 399 303 327 214 238 141 1622 1044 1985 1629 190 452 2369
1104 402 306 329 217 240 145 1639 1044 1985 1629 190 454 2366
1204 403 307 330 218 240 144 1642 1044 1985 1629 190 453 2368
a
P1 P2
d d
c
b
C.G.
b
c
P5 P
6
P4
P
3
Y
X
Electrical board
Compressor
side
