Page 67
English
1179 LIFT
1100
2300
1249
1044
2200 396396
3300
682
355
130
250
1029
576
934
313
1761 LIFT
495
3 FANS size 604
2 FANS size 524
A
B
C
D
*
WATER CONNECTIONS
WATER OUTLET “A” 2” 1/2 M
WATER INLET (with pump) “B” 2” 1/2 M
WATER INLET (without pump) “C” 2” 1/2 M
DESUPERHEATER IN/OUT “D” 4x 1” M
Technical data

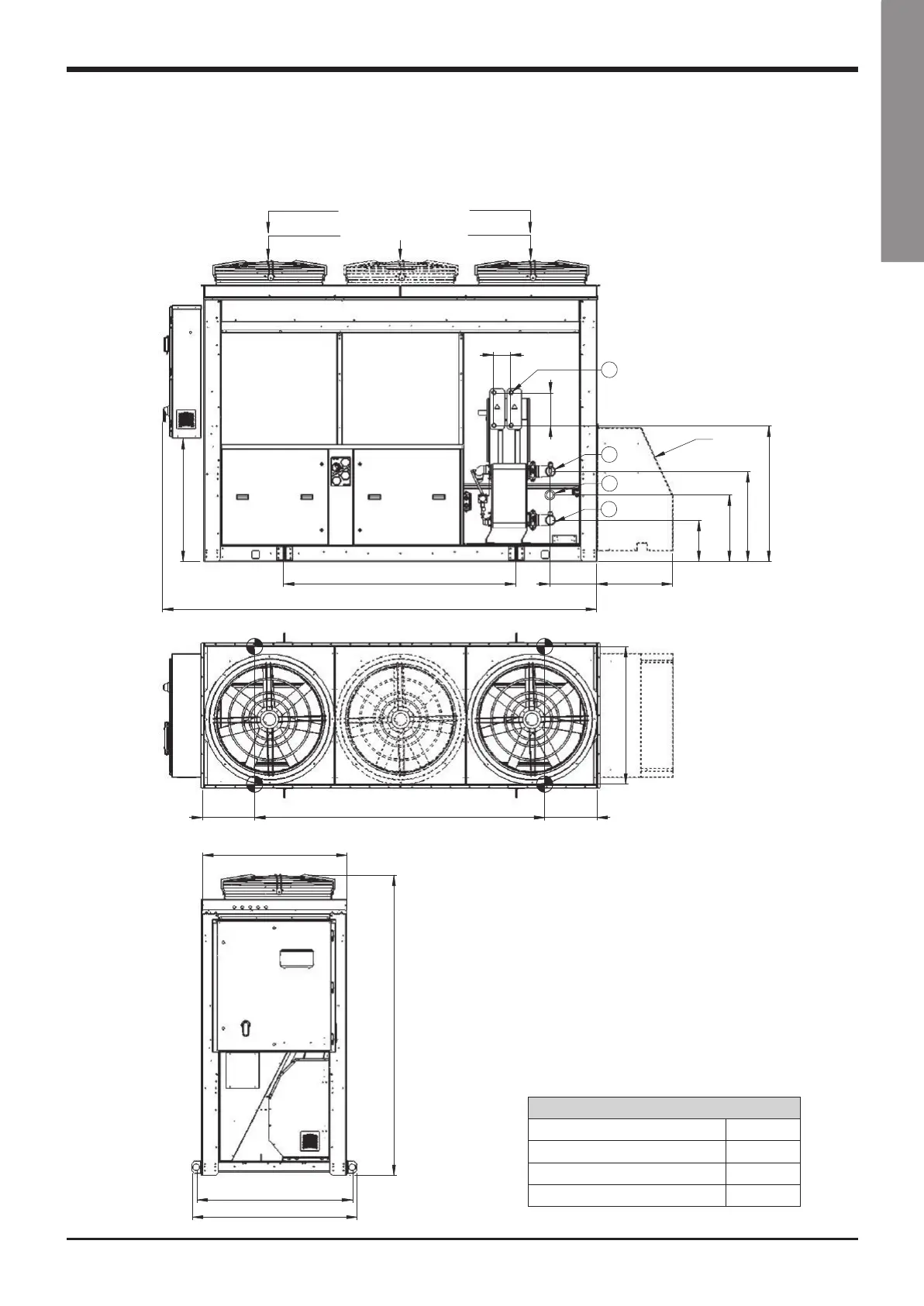

8.5 Overall dimensions
VLS/VLH 524-604 BLN/LN/ELN/HT
(*) Only with 2 pumps
VLS-GB.indd 67 17-06-2009 15:56:48
