tae TA-U55 User Manual

Instruction and Operating Manual
TA-U1...U280
Misprints and technical changes reserved
12
3.2.5 Standard equipments
 4 free programmable digital inputs
 1 programmable analog input 0V to +10V,
0-20mA, 4-20mA.
 1 programmable relay output
 1 programmable optocoupler output
 Controlled by PG4000 or computer also in
parallel operation
 Master and Slave function
 Synchronous run
 Position control
 Electronic transmissions
 Motorpotentiometer function
 7 segment indication for status reports
 LED indication for position encoder, speed
encoder 4.Q indication, current limit and speed
reached
 Failure indication in the PG4000 and on the 7
segment display
 Parameterizing with PG4000 or computer
 Data memory with Smartcard or computer

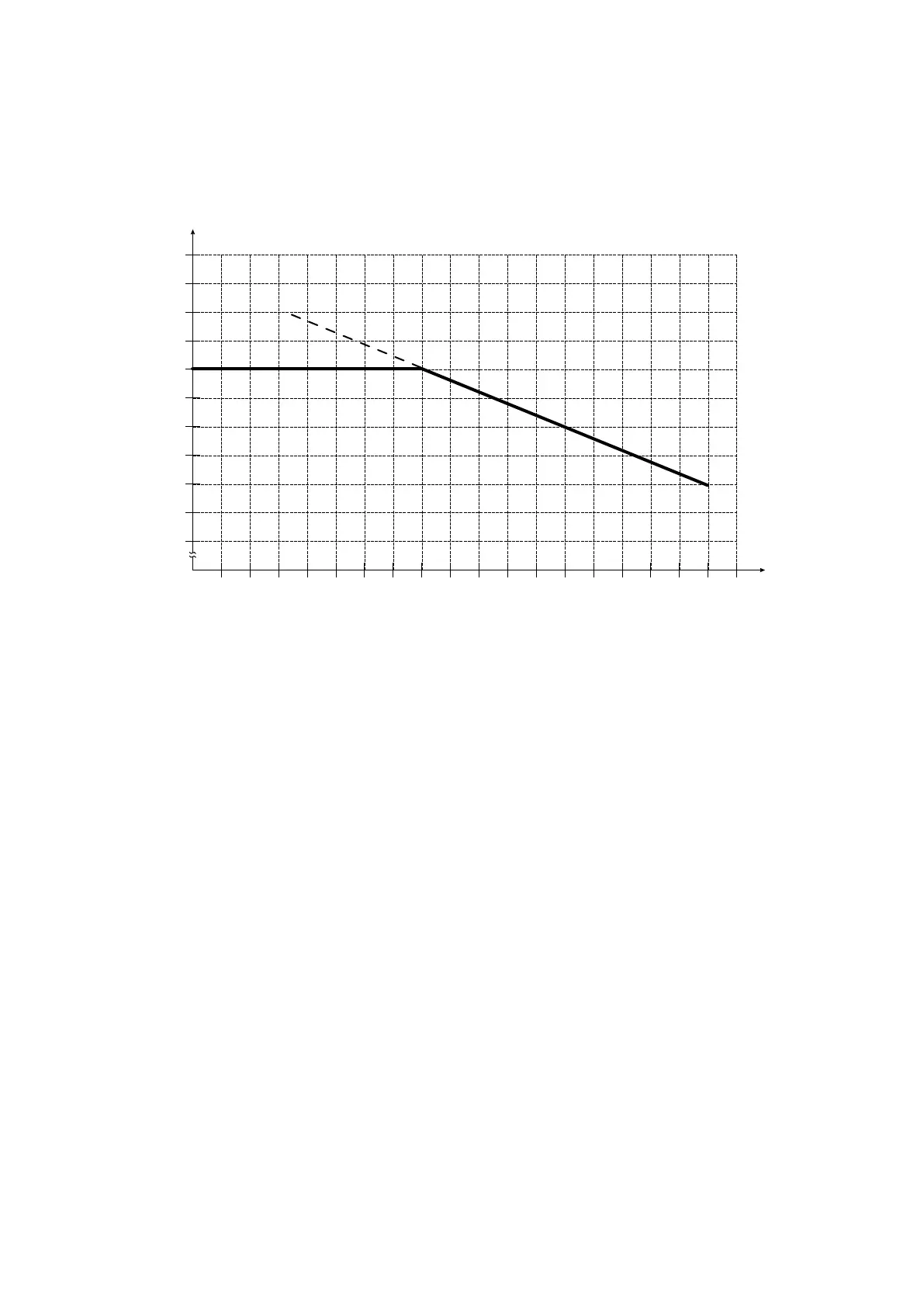

3.2.4 Rated current de-rating in relation to switch frequency
3.2.6 Option equipments
 EMC filter
 Additional communication cards E.g. Profibus,
CANopen, DeviceNet, Ethernet
 Digital analog upgrading
 Multifunction Control Unit PG 4000
 SmartCard for PG 4000
 Miscellaneous encoder interfaces
 Separate power supply for elektronic (starting
at TA-U22)
12345678910 11 12 13 14 15 16 17 18 19
f/kH
z
40%
50%
60%
70%
80%
90%
100%
110%
120%
130%
140%
Rated current I
rated

tae TA-U55 Specifications

General

Brand	tae
Model	TA-U55
Category	DC Drives
Language	English
