3.3.10 Encoderboard "Resolver 0406" (16 Bit)
X5 Connection to controlboard
S1 GND Connections of the input terminals
33,35 and 38 (Z,/Z,AB)
S2 Resolver selection
BR1 Motor temperature sensor terminal 22
open: thermo switch and PT100
closed: KTY and PTC
BR2 Motor temperature sensor terminal 21
open: thermo switch and PT100
closed: KTY and PTC
BR3 Zero point signal Z2
Pin 1-2 closed: Zero point signal from
encoder
Pin 2-3 closed: machine proximiti switch,
factory adjustment
BR4 Scan frequency (NC) factory adjustment
open
BR5 Scan frequency (NC) factory adjustment
open
BR6 Frequency output terminal 39, track A
Pin 1-2 closed: actual speed value,
factory adjustment
Pin 2-3 closed: special
funktion
BR7 Frequency output terminal 40, track B
Pin 1-2 closed: actual speed value,
factory adjustment
Pin 2-3 closed: special funktion
BR8 Motor temperature sensor terminal 21
open: thermo switch and PT100
closed: KTY and PTC
BR9 Motor temperature sensor terminal 22
open: thermo switch and PT100
closed: KTY and PTC
LD1 Green - +5V
29
28
27
26
25
24
31
30
35
36
37
38
39
40
41
42
34
33
32
23
22
21
4
3
2
1
X5
Encoder Resolver 0406
TP15
TP13
TP12
TP11
TP9
TP7
TP6
TP5
TP4
TP3
TP2
TP1
TP14
TP10
TP8
LD1
4
3
2
1
DIP switch S2
(factory adjustment)
Resolver resolution12 Bit
OFFON
1
2
3
4
1
000
DIP switch S1
(factory adjustment)
refer to chapter 5.3.3
OFFON
1
2
3
4
0 000
TP16
Resolver resolution
10 Bit 12 Bit
DIP-S2
2ON OFF
1ONON
14 Bit
ON
OFF
16 Bit
OFF
OFF
Resolver mode selection
4
DIP-S2
3
ON OFF
ON OFF
-
-
Parameter 53,54 resolver selection by u-Drivemanager
or Keypad, active: 1) or disabled: 2)
1) 2)
S2
S1
BR2
BR3
BR8 BR9
BR5
BR7
BR6
BR4
3
2
1
3
2
1
3
2
1
3
2
1
1
2
3
BR1

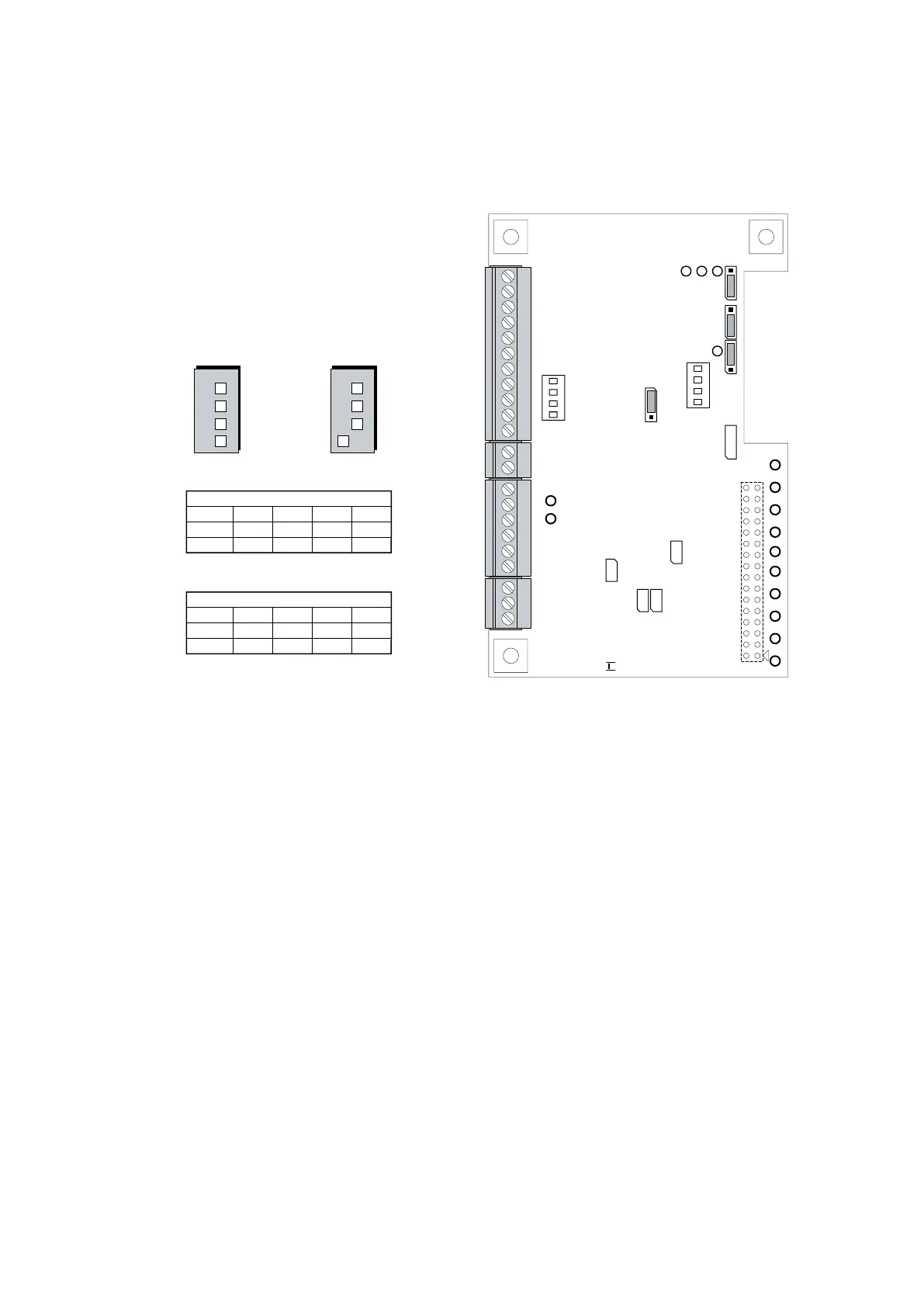

Ilustration of Jumper BR on board, is factory adjustment
