Instruction and Operating Manual
TA-U1...U280
Misprints and technical changes reserved
26

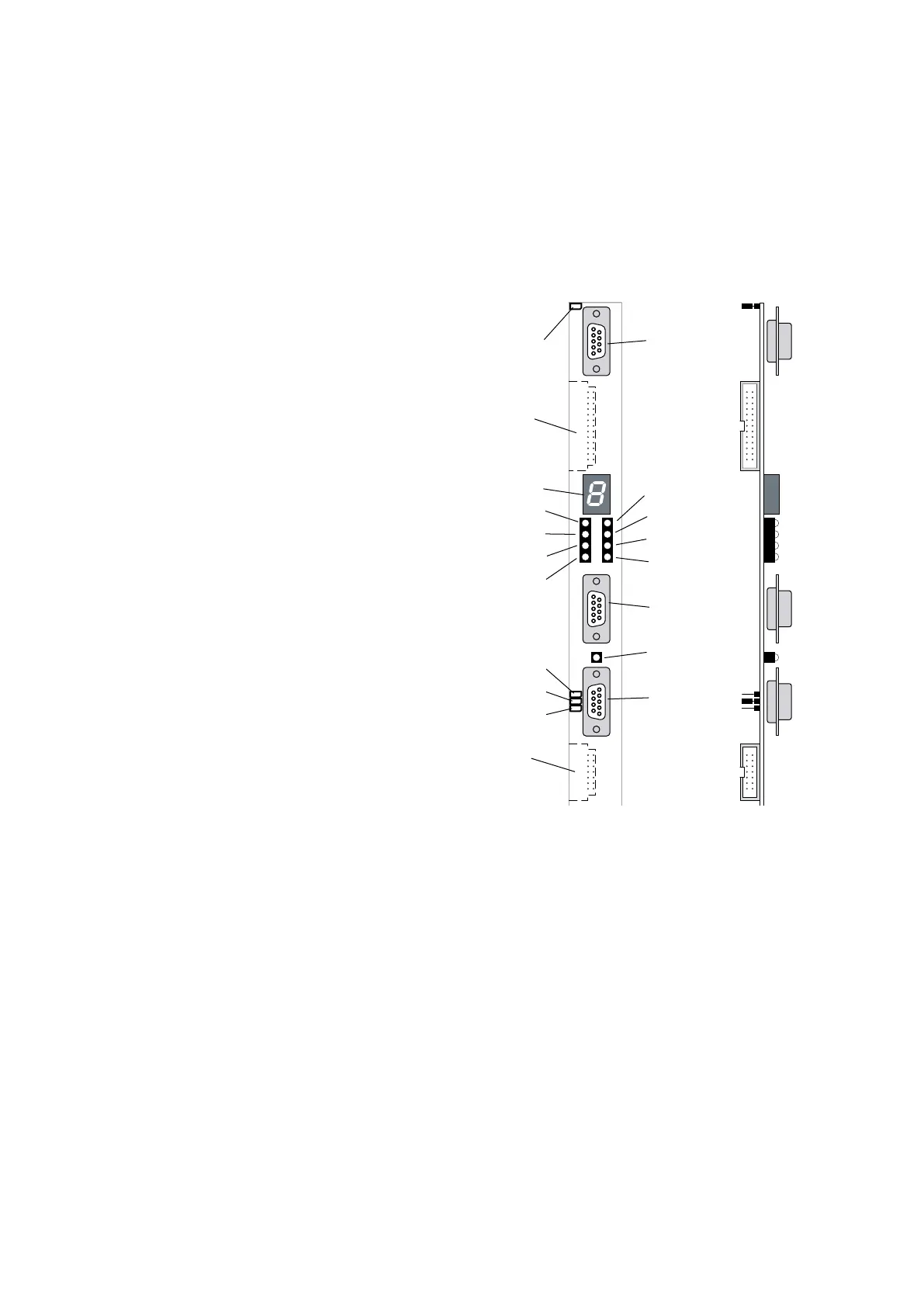

3.3.16 Displayboard
7 Segment Display
0 Ready for run
1 Run (Enable)
C1 Drive temperature pre-warning
C2 Motor temperature pre-warning
C3 Max value out of range
C4 Safe Stop
C5 Drive Locked ref>0
C6 Powerstage disabled
C7 Actual speed > norming
C8 Parameterization fault
Fault signals: (F and number shine alternately)
F0 Motor overtemperature
F1 Overcurrent
F2 Drive overtemperature
F3 Undervoltage
F4 Overvoltage
F5 Rippel Current
F6 Position sensor U, V and W
F7 Speed sensor A and B
F8 Elektronic
F9 Short-Circuit IGBT
E1 External error at terminals
E2 No reducing circuit
E3 Fault brake feedback
LED indication Displayboard
LD 4 pale Position sensor U
LD 5 pale Position sensor V
LD 6 pale Position sensor W
LD 1 pale Speed sensor track B
LD 2 pale Speed sensor track A
LD 3 pale Runs 4Q
LD 7 red Current limit
LD 8 green Speed reached
LD 9 Bus
AZ1 7 segment display
BR1
X21
X4
AZ1
LD4
LD5
LD6
LD7
BR2
BR3
BR4
X7
LD1
LD2
LD3
LD8
X20
LD9
X13
Connections and jumpers
X4 Connection to controlboard
X7 Connection to field bus
X13 Field bus
X20 RS422/485
X21 PG4000
BR1 Terminating resistor PG 4000
BR2 RS485 (able to bus)
BR3 Terminating resistor RS 422/485
BR4 RS485 (able to bus)
