Taie FY100 - Phase Angle Control (by SCR Module)

54

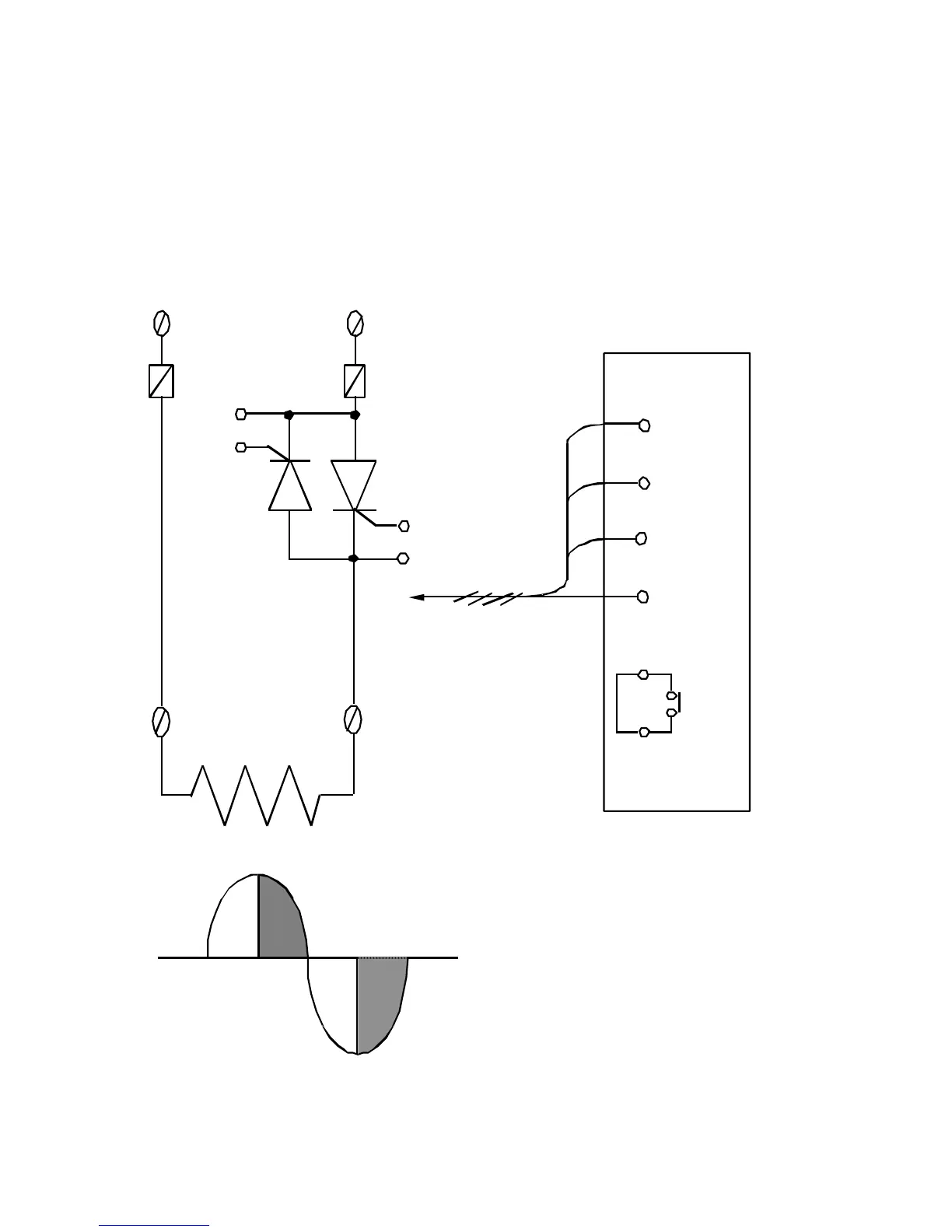

18.3 1ψ Phase angle control (By SCR module)
z Available Models：FY900 / PFY900，FY700 / PFY700，FY800 / PFY800
FY100 / PFY100
z OUT1: 1ψSCR phase angle control
z Parameter setting： OUTY=4
CLO1=0，CHO1=4500 if use for resistance load
CLO1=0，CHO1=4000 if use for inductor load
Short
CONTROLLER
G 1
G 2
K 1
K 2
PROT
K1
K 2
G 1
S
R
G 2
FAST
FUSE
UV
SCR
Module
** Controller source phase must be same as load source phase
LOAD
