Taie FY100 - Phase Angle Control (by DIODE;SCR Module)

56

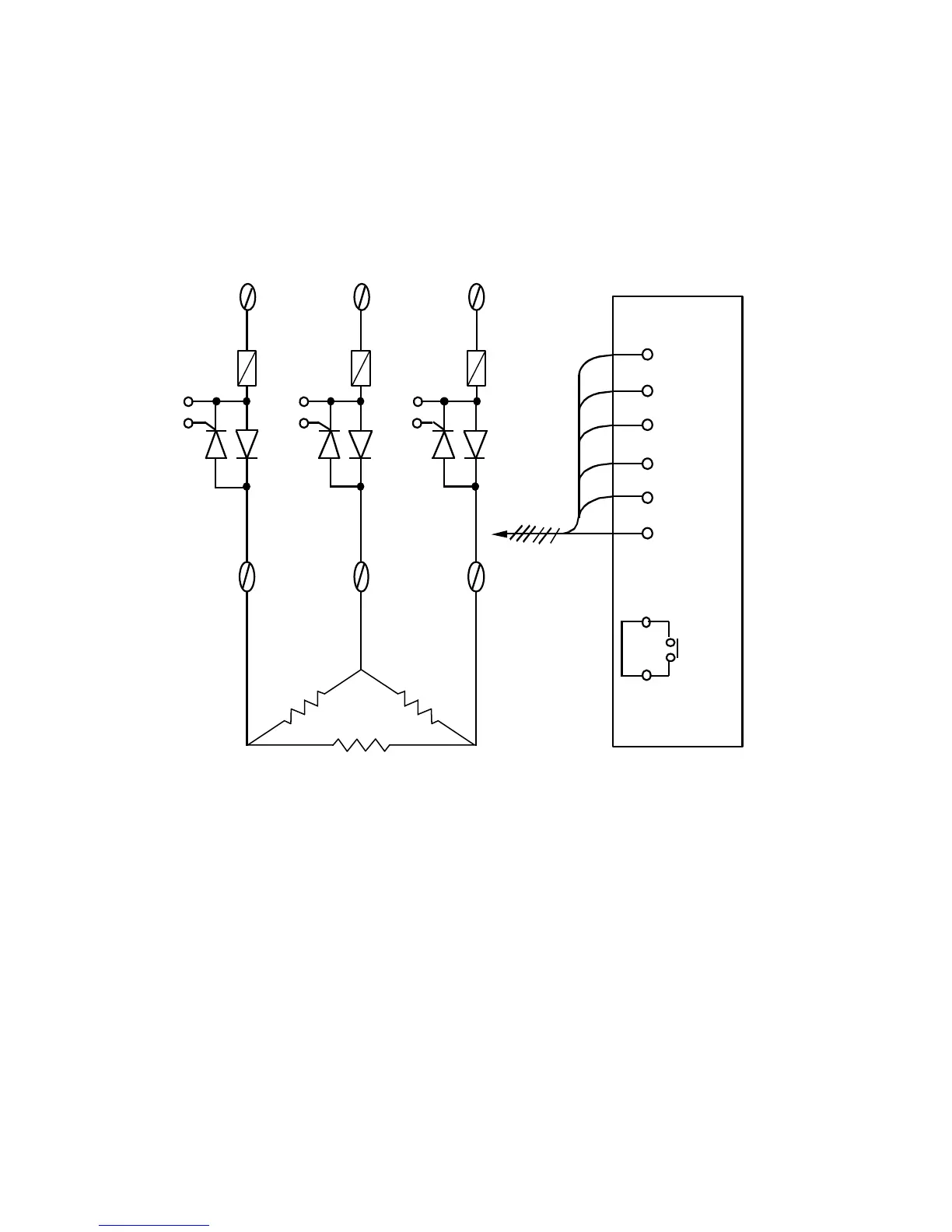

18.5 3ψ Phase angle control (By DIODE/SCR module)
z Available Models：FY900 / PFY900
z OUT1: 3ψSCR phase angle control
z Parameter setting： OUTY=5
CLO1=0，CHO1=4500 only if use for resistance load
CLO1=0，CHO1=4000 if use for inductor load
CONTROLLER
Short
K 1
G 1
K 2
G 2
K 3
G 3
TS
R
FAST
FUSE
U
V
DIODE/SCR
Module
W
K 2
G 2
K 3
PROT
G 3
G 1
3φ LOAD
K 1
