TB8100 Service Kit User’s Manual Operational Information 71
Operational Information
The Service Kit can monitor the base station’s current settings and the way the
reciter, PA, and PMU are operating. You must be logged in to that base station.
Click Monitor, and then choose one of the items under Monitoring. To display
information about the modules themselves, see “Module Details” on page 67.
Monitoring the Current Channel

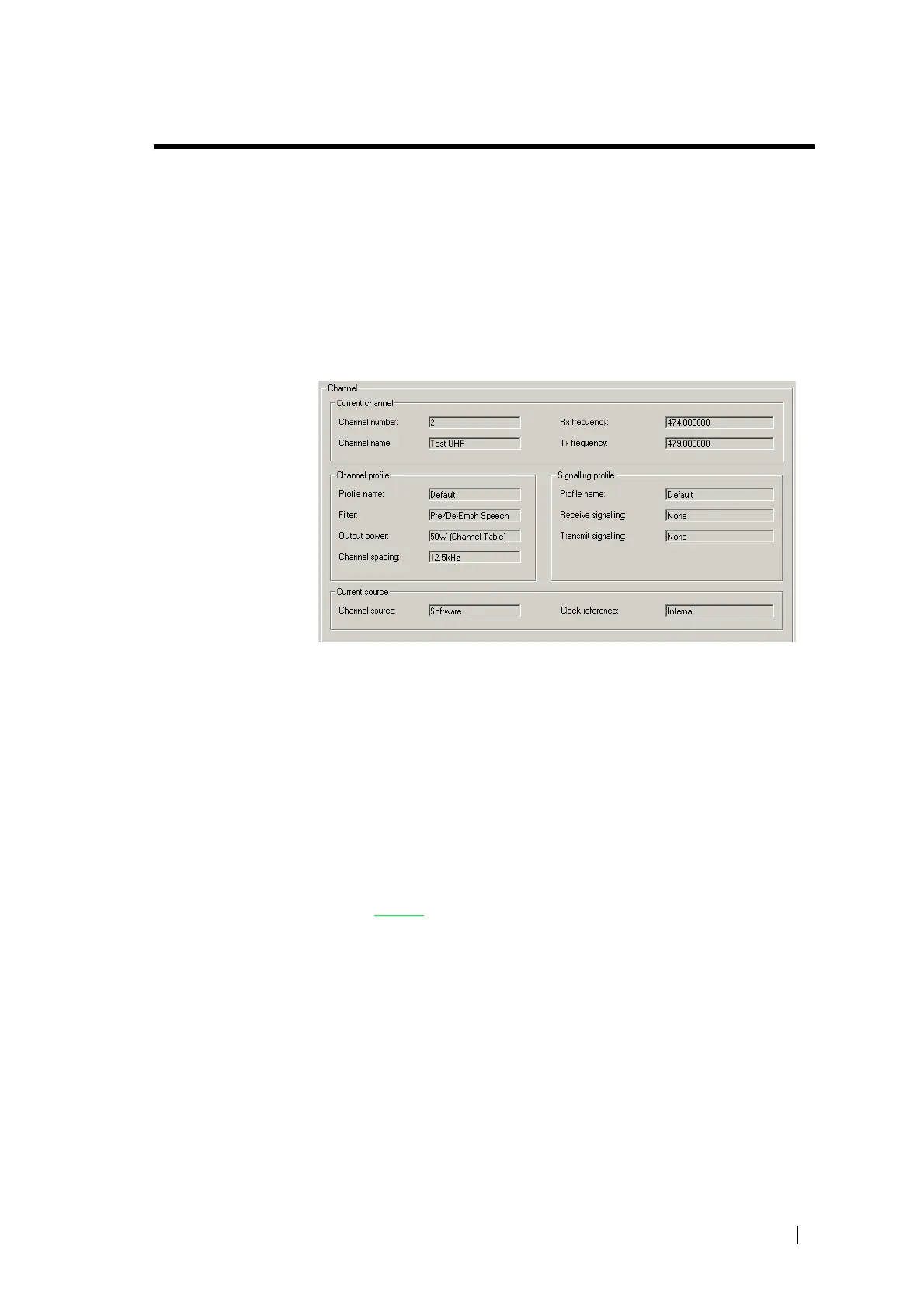

The Channel form (Monitor > Monitoring > Channel) displays information
about the channel that the base station is currently operating on.
The Current channel area specifies which channel is current and displays its
most important details.
The Channel profile and Signalling profile areas display information about the
profiles assigned to the current channel.
The Current source area tells you whether the channel was selected by software
(the Service Kit) or by hardware (external channel selection lines). If an external
reference source is connected, it tells you what frequency the base station
expects.
Current Channel
The Current channel area (Monitor > Monitoring > Channel) displays details
about the channel
that the base station is currently using. The Channel
number and Channel name boxes identify the channel. The Rx frequency
box indicates the frequency that the base station is receiving on and the Tx
frequency box indicates the frequency that it transmits on. Channels are
created in Configure > Base Station > Channel Table.
Profile Information
The Signalling profile and Channel profile areas (Monitor > Monitoring >
Channel) indicate which profiles have been assigned to the channel and display
information about them.
