TB9100/P25 CG/P25 TAG Installation and Operation Manual Operation 85
© Tait Limited March 2014
Rear View
The indicator LEDs on the rear are visible through small holes in the rear
panel.
Network Transmit
LED
The amber network transmit LED will flash for 1 second when data is
transmitted across the Ethernet interface.
Network Activity
LED
The green network activity LED is lit when the Ethernet interface is
connected. When network activity is detected, the LED will flash on for 1
second and off for 1 second.
Network Board
PowerPC LED
The green network board PowerPC LED will flash continuously when the
PowerPC is functioning normally.
Network Board DSP
LED
The amber network board DSP LED will flash continuously when the DSP
is functioning normally.

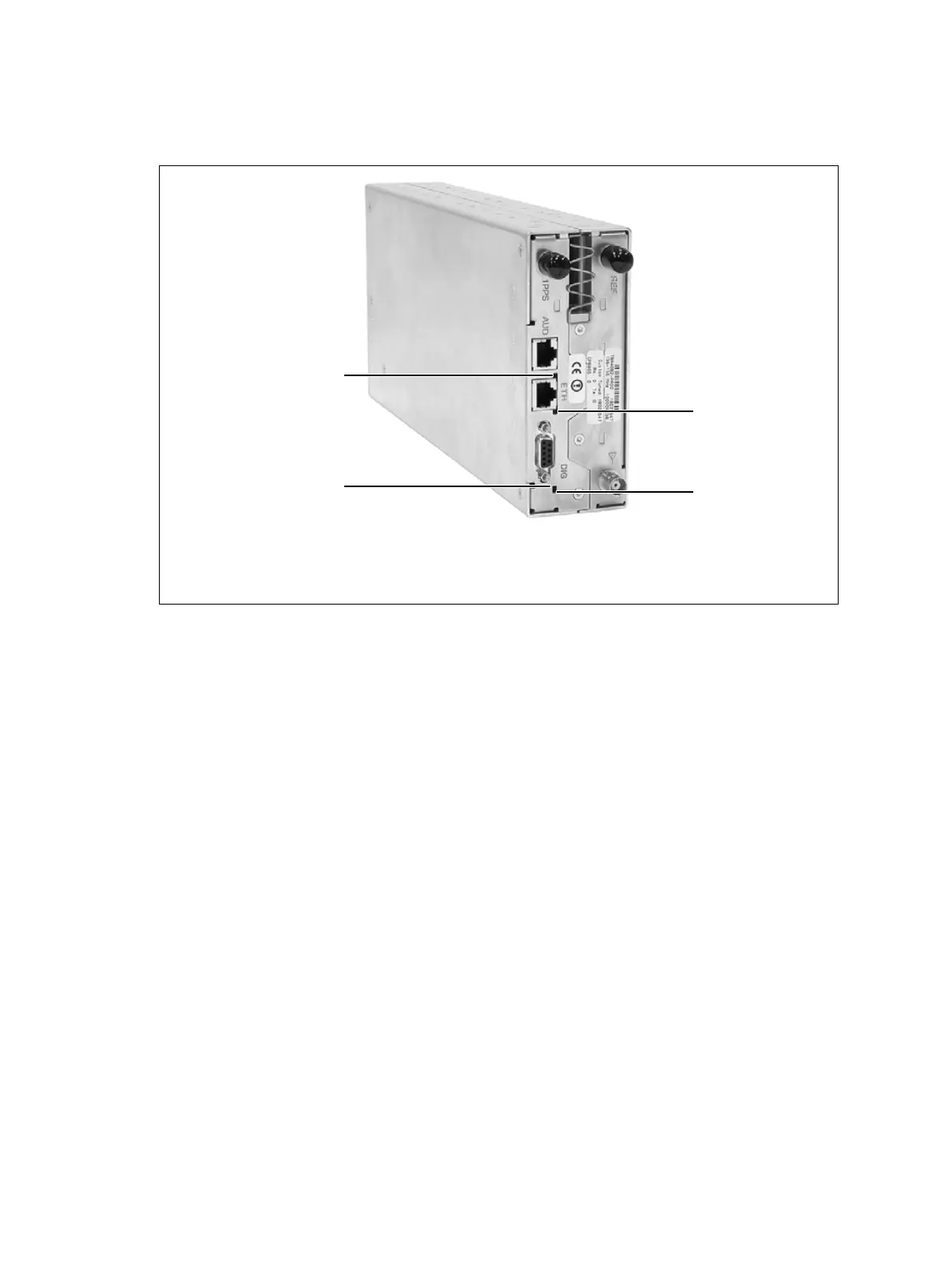

Figure 4.3 Indicator LEDs on the rear of the reciter
b
network transmit LED
c
network activity LED
d
network board PowerPC LED
e
network board DSP LED
b
c
d
e
