48 TMAA01-05 Options-Extender Board TM8100/TM8200 Accessories Manual
© Tait Electronics Limited August 2005

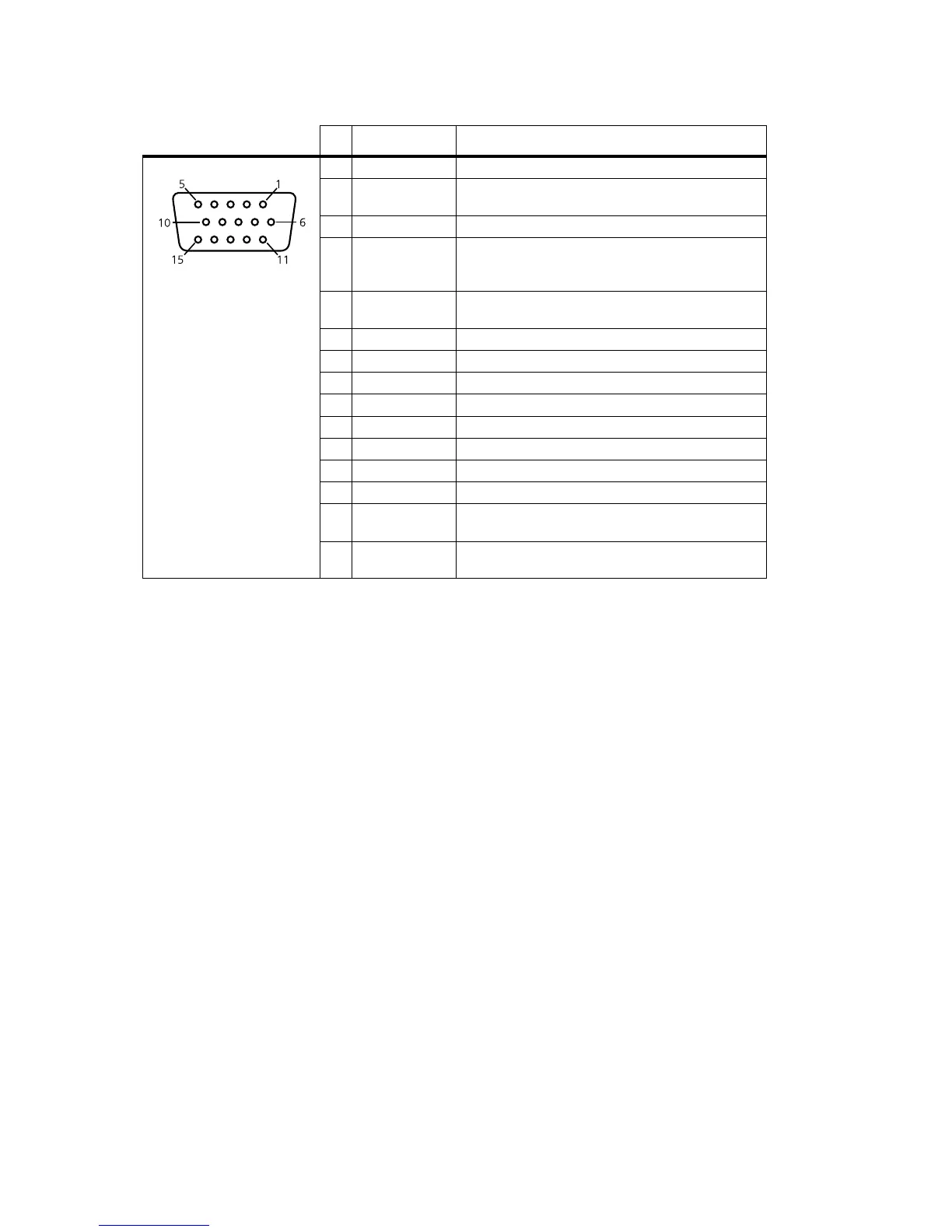

Table 4.4 External options connector—pins and signals
Pin Signal Description
213V8_SW
a
13V8 supply
6 AUD_TAP_OUT
b
Programmable tap point out of the Rx or Tx audio
chain. DC-coupled
7AGND
analogue ground
11 AUX_MIC_AUD
b
Auxiliary microphone input, with electret microphone
biasing provided.
Dynamic microphones are not supported.
1 AUD_TAP_IN
b
Programmable tap point into the Rx or Tx audio chain.
DC-coupled.
3RSSI
b
analogue RSSI output
15 IOP_GPIO1
c
programmable function and direction
14 IOP_GPIO2
c
programmable function and direction
13 IOP_GPIO3
c
programmable function and direction
10 IOP_GPIO4
c
programmable function and direction
9 IOP_GPIO5
c
programmable function and direction
5 IOP_GPIO6
c
programmable function and direction
4 IOP_GPIO7
c
programmable function and direction
8IOP_RXD
an RS-232 compliant asynchronous serial port -
receive data
12 IOP_TXD
an RS-232 compliant asynchronous serial port -
transmit data
a. This can be configured to be 5V. Refer to “Power Supply Line” on page 44.
b. This can be re-configured to be RX_BEEP_IN. Refer to “RX_BEEP_IN Line” on page 44.
c. 3V3 CMOS output via 1kΩ series resistance. 5V tolerant input.
front view

Tait tm8200 Specifications

General

Operating Temperature Range	-30°C to +60°C
IP Rating	IP54
Channel Spacing	12.5 kHz, 25 kHz
Battery Life	N/A (Mobile Radio)
Frequency Range	136-174 MHz, 400-470 MHz
