TM8100/TM8200 Accessories Manual TOPA-SV-024 Test Unit 133
© Tait Electronics Limited August 2005
18 TOPA-SV-024 Test Unit
The TOPA-SV-024 test unit is used to test and maintain Tait Orca
portables (TOP) and TM8000 radios by providing an interface between
the radio, a test PC, and an RF communications test set.

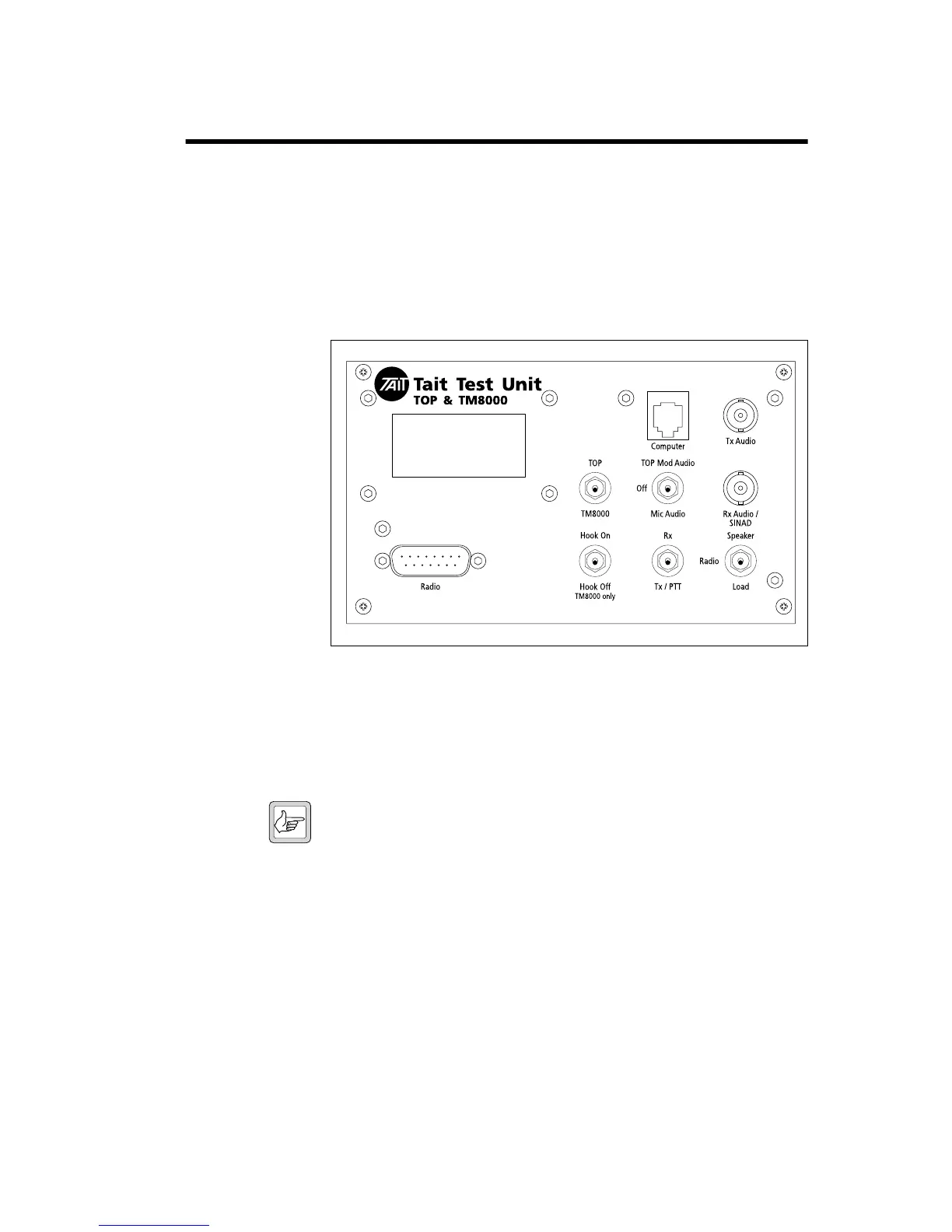

The diagram below shows the front panel of the test unit.
18.1 Test Equipment Setup
The diagram on the following page shows how the test unit is connected to
the radio, the test PC, and the RF communications test set.
Note The test unit can also be connected to a T2000 radio using the
T2000-11 cable. Use with T2000 radios is not described in
this document.
Figure 18.1 TOPA-SV-024 test unit
