TM8100/TM8200 Accessories Manual TMAA03-02 Security Bracket 71
© Tait Electronics Limited August 2005
9 TMAA03-02 Security Bracket
The TMAA03-02 security bracket can be used in place of the standard
U-bracket in locations where you want to stop opportunistic removal of the
radio by a third party, or where you want to have a quick release setup that
allows you to swap over radios (e.g. leasing situation). The security bracket
also provides electrical isolation to the radio.

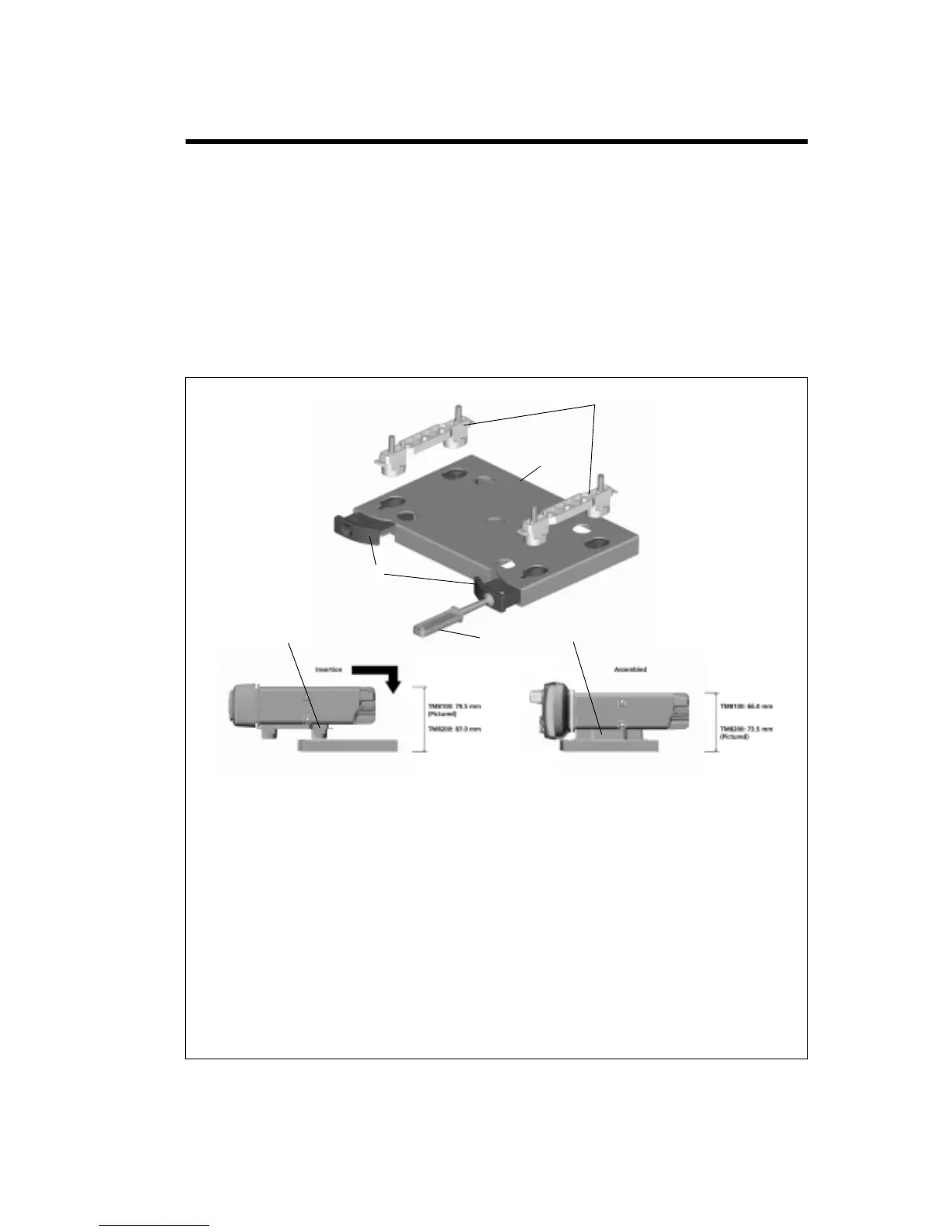

The parts of the TMAA03-02 security bracket are illustrated in Figure 9.1.
Figure 9.1 Parts of the TMAA03-02 security bracket
Description Quantity
B
security bracket cradle base 1
E
short mounting rails for TM8100 2
C
slide locks 1 left
1 right
screws (M4x25 T/T P/T ContiR) -
for attaching short mounting rails
to TM8100 radio (not pictured)
4
D
slide lock key 2
F
tall mounting rails for TM8200 2
self-tapping screws (10Gx20 hex/
poz) - for fixing security bracket in
place (not pictured)
4 screws (M4x30 T/T P/T ContiR) -
for attaching tall mounting rails to
TM8200 (not pictured)
4
anti-vibration washers for self-
tapping screws (not pictured)
4
Note: B and C are pre-assembled
B
D
Mounting rails (see E and F)
C
F
E
