* Exceptional Connection to TMFD new type by Parallel Cable
4. Using the TAJIMA USB Linker

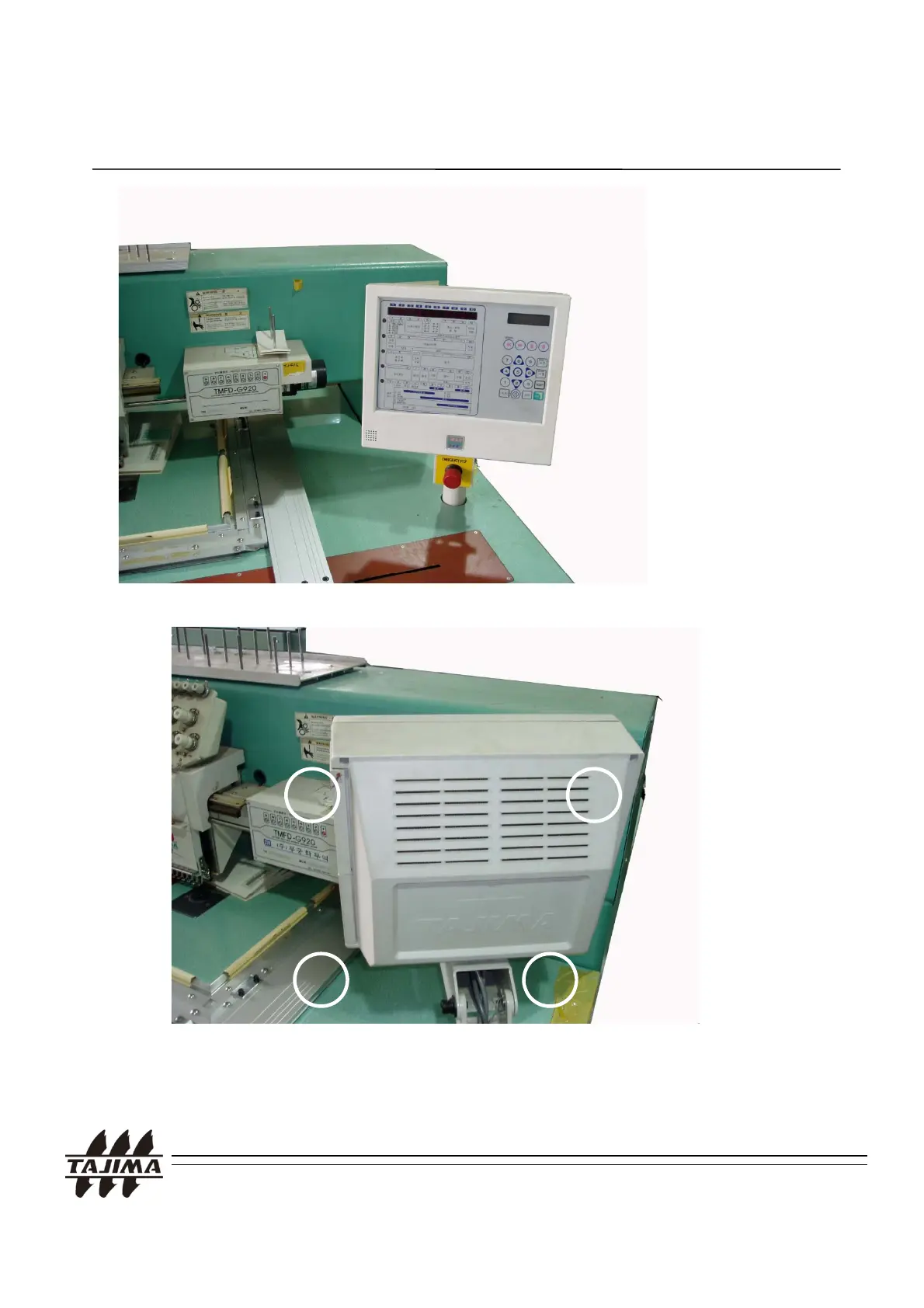

The Operation Panel of TMFD new type is assembled in a plastic case.
Loosen the locking screws of the Operation Panel and turn the Operation Panel
as shown in the above picture.
Remove the four screws with a Philips (cross head) screwdriver and open the
Operation Panel.
TAJIMA USB Linker Manual
8
