4. Using the TAJIMA USB Linker
4-1. Connecting to a Tajima Embroidery Machine

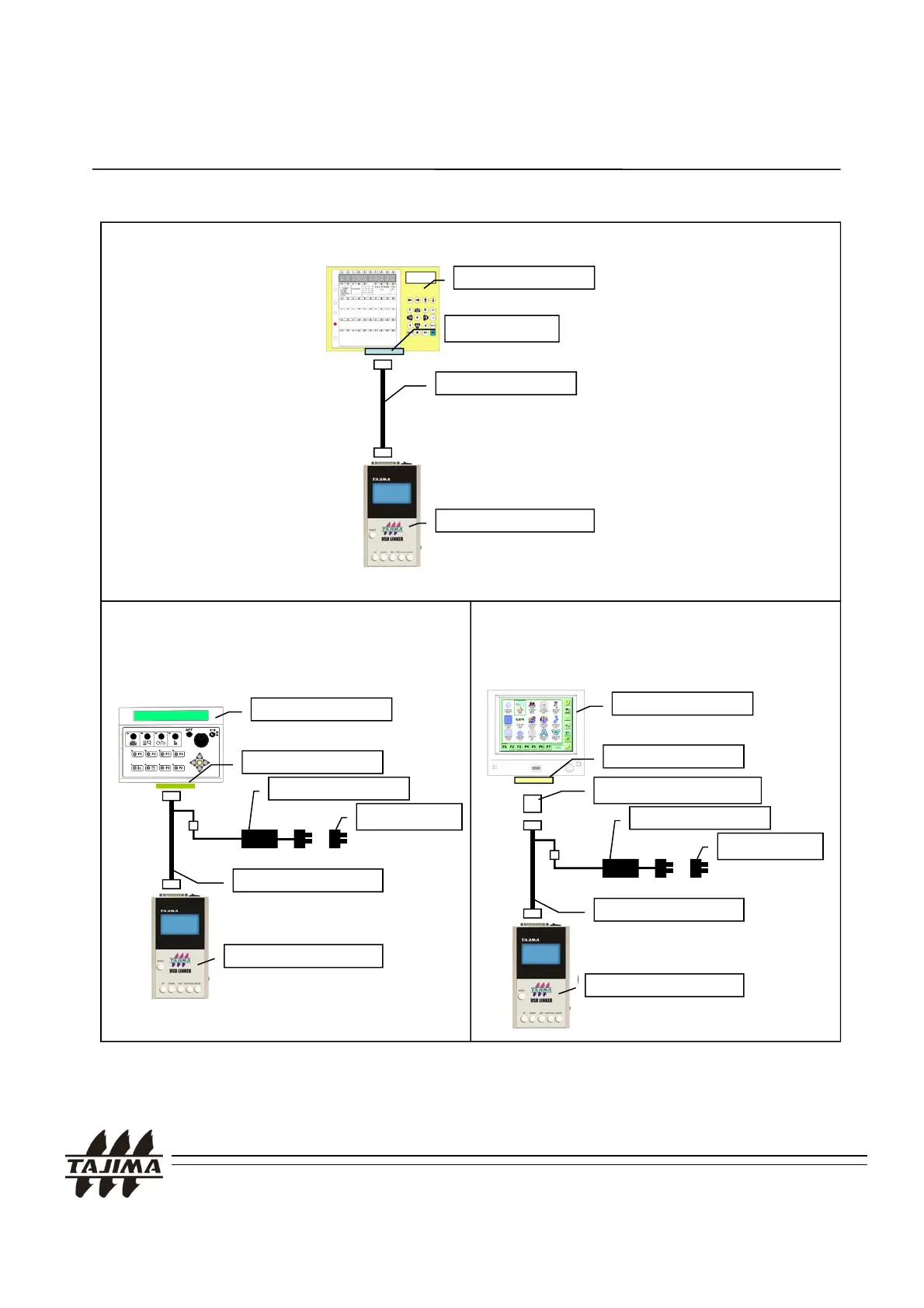

* Basic Connection to Machine with Parallel port
Operation Panel
Parallel Port
Parallel Cable
TAJIMA USB Linker
* Basic Connection to Machine with
25pin Serial port
* Basic Connection to Machine with
9pin Serial port
Operation Panel
Operation Panel
25 Pin Serial Port
25pin Serial Cable
Power Adaptor
Plug Adaptor
9 Pin Serial Port
Power Adaptor
Plug Adaptor
25 to 9 Pin Converter
TAJIMA USB Linker
25pin Serial Cable
TAJIMA USB Linker
TAJIMA USB Linker Manual
7
Remarks :
1.The TAJIMA USB Linker package does not include an AC Plug Adaptor so please prepare at the customer side.
2.The location of Parallel/Serial port on Operation Panel is different, depending on the models.
