Takagi GS-2600W-AU User Manual

18

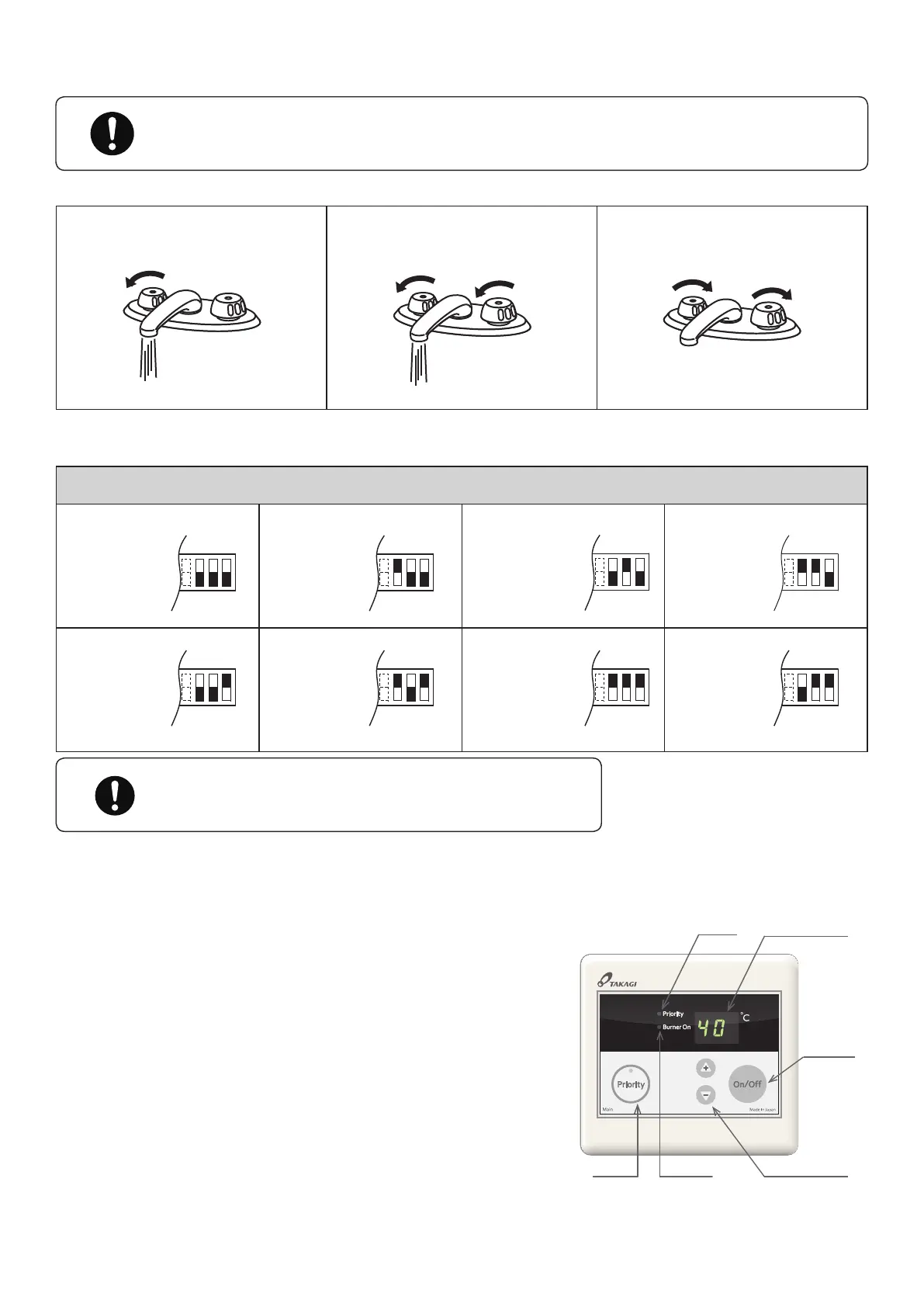

NORMAL OPERATION
• Flow rate to acvate the water heater : 3.0 LITRES per minute
• Flow rate to keep the water heater running : 2.5 LITRES per minute
WITHOUT REMOTE CONTROLLER
1. Open a hot water tap. 2. Mix cold water with the hot to get
the suitable temperature water.
3. Close the hot water tap.
NOTE: The water temperature is set at 50 °C from the factory.
If you desire to change the set temperature without remote controller, refer to diagram below.
Temperature set
40 °C 45 °C
50 °C
DEFAULT
55 °C
60 °C Error 70 °C Error
8765
ON
OFF
TMP1 TMP2 TMP3
8765
ON
OFF
TMP1 TMP2 TMP3
8765
ON
OFF
TMP1 TMP2 TMP3
8765
ON
OFF
TMP1 TMP2 TMP3
8765
ON
OFF
TMP1 TMP2 TMP3
8765
ON
OFF
TMP1 TMP2 TMP3
8765
ON
OFF
TMP1 TMP2 TMP3
8765
ON
OFF
TMP1 TMP2 TMP3
• Only change the switches with dark squares.
• DO NOT adjust other switches.
WITH ONLY MAIN REMOTE CONTROLLER INSTALLED
1. Press the ON/OFF buon. And then ensure the priority lamp is
lit and displays the set temperature on the remote controller.
2. SET PREFERRED TEMPERATURE. WHEN ADJUSTING THE SET
TEMPERATURE, MC100-AU3-TP ALLOWS THE OUTPUT
TEMPERATURE FROM THE WATER HEATER TO BE ADJUSTED
WITHIN THE RANGE OF 37 °C to 55 °C. (Please refer to P. 14.)
3. Open a hot water tap, and ensure the BURNER ON lamp is lit.
Mix cold water with the hot if you need.
4. Close the hot water tap, and ensure the BURNER ON lamp is
OFF.
Priority
buon
ON/OFF
Set temperature
display
Set temperature
adjust buon
Burner on
lamp
lamp
Priority
buon
MC100-AU3-TP
