CONTROLS
LEVERS AND PEDALS

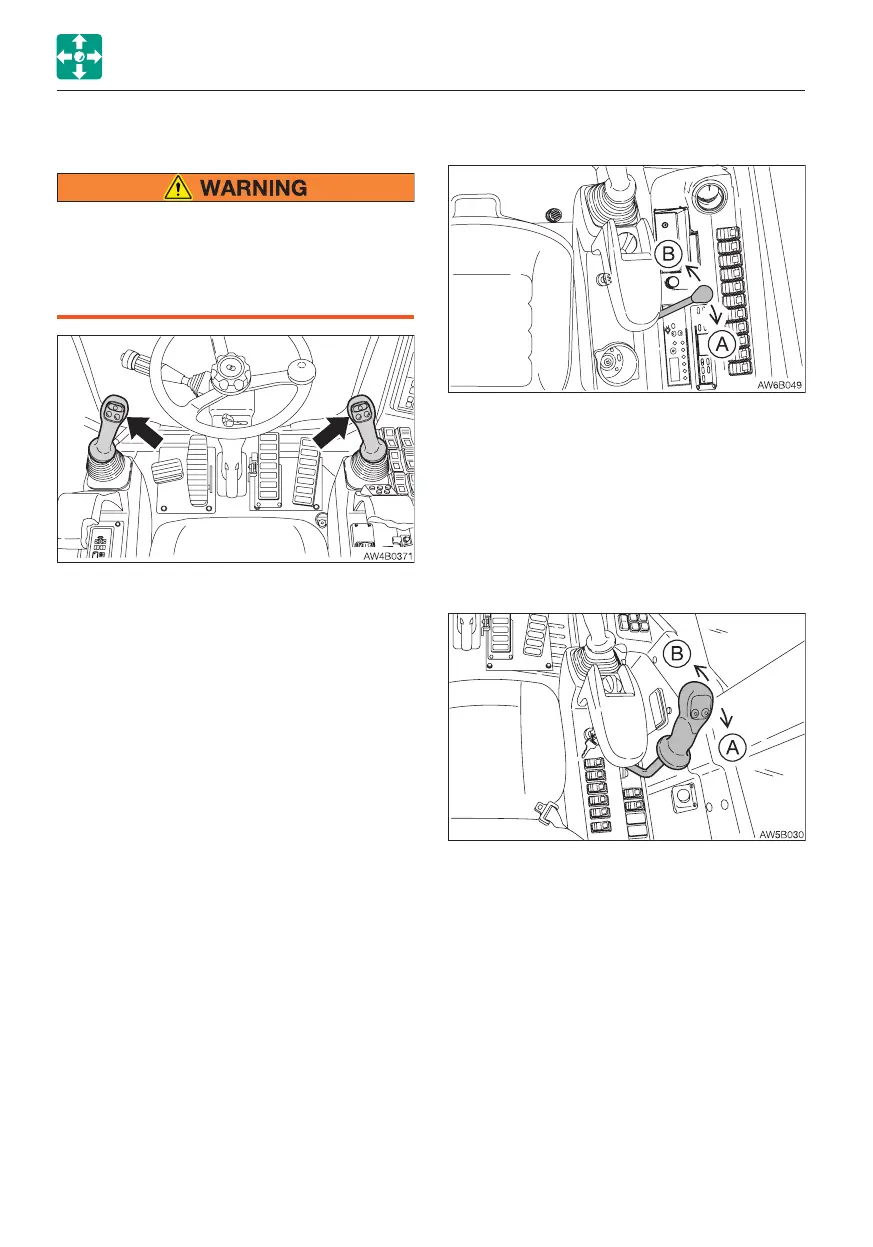

OPERATING LEVERS
• Before starting operation, carefully
check which lever pattern you are going
to use.
• It is described using the ISO pattern in
this manual.
Use these levers to operate the boom, arm,
bucket and upperstructure.
Refer to “Lever pattern” on page 3-6.
Refer to “Operating the working equipment”
on page 3-16.
BLADE LEVER
Use this lever to operate the dozer blade.
(A) .......Blade up
(B) ......Blade down
Refer to “Operating the dozer blade” on
page 3-18.
BLADE /OUTRIGGER LEVER
(IF EQUIPPED)
Use this lever to operate the dozer blade or
the outrigger (if equipped).
Use the outrigger switch to select the dozer
blade or outrigger operation.
(A) .......Blade raise /Outriggers raise
(B) ......Blade lower /Outriggers lower
Refer to “Outrigger switches (If equipped)”
on page 2-44.
Refer to “Operating the dozer blade” and
“Operating the outriggers (If equipped)” on
page 3-18.
