CONTROLS
Turnbuckles
When traveling on a public road, retract
the outriggers within the machine width
and install the turnbuckles.
ACCESSORIES
OUTRIGGER
• Select a firm and uniform ground for
outrigger pads (surfaces to contact the
ground).
• When traveling on a public road, secure
the outriggers with the turnbuckles.
When retracting the outriggers, make
sure that the outrigger pads (the
surfaces to contact the ground) are
within the machine width. Failure to do
so could cause minor collisions.

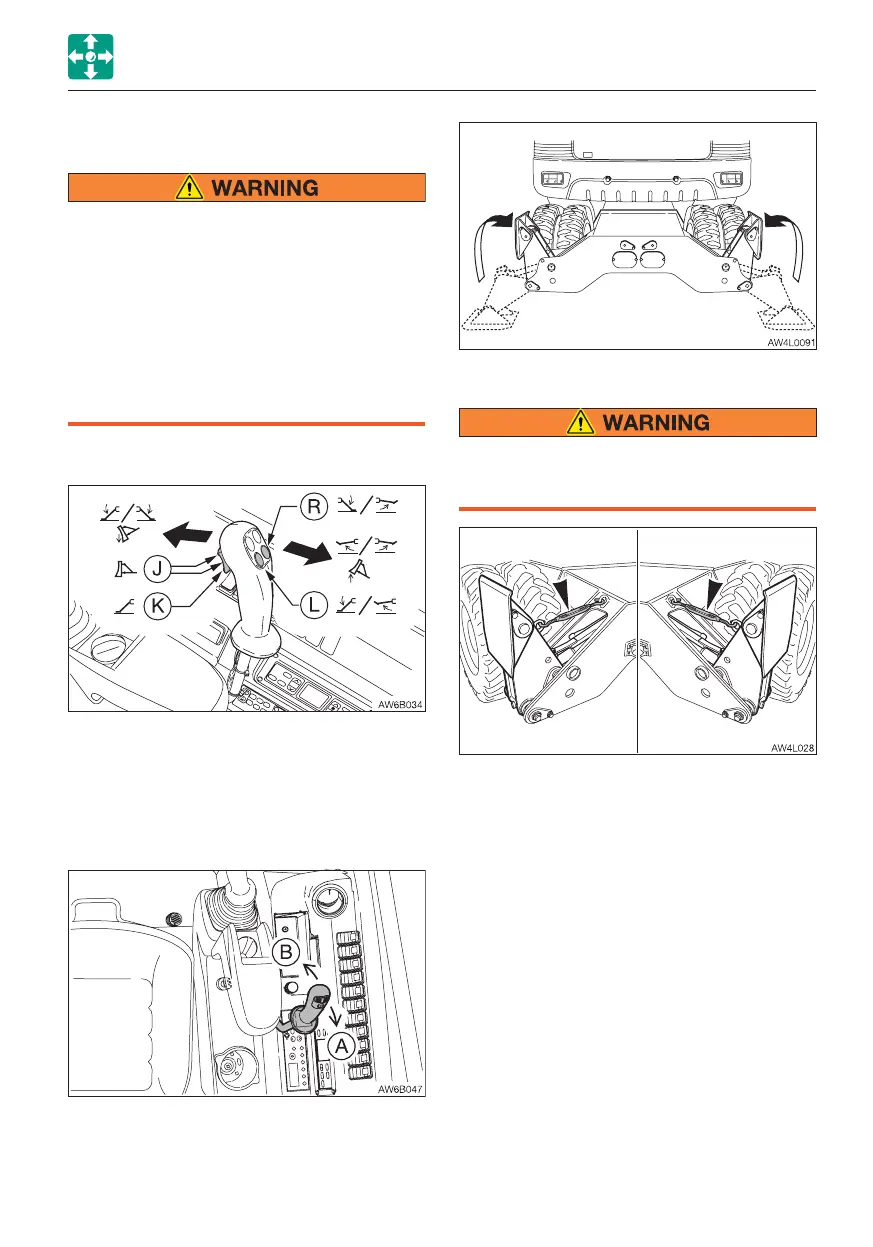

Outrigger switch
(J) .......Dozer blade operation (both sides)
(K) ......Outrigger operation (both sides)
(L) .......Left outrigger operation
(R) ......Right outrigger operation
Operation
A/C
AUTO
TEMP
OFF
DENSO
The outrigger operation is done by the blade
lever.
(A) .......Outriggers Raise
(B) ......Outriggers Lower
Remove the turnbuckles before lowering the
outriggers. Failure to do so could damage
the turnbuckles.
