5-28
MAINTENANCE
AFTER THE INITIAL 50
HOURS (ONLY FOR NEW
MACHINES)

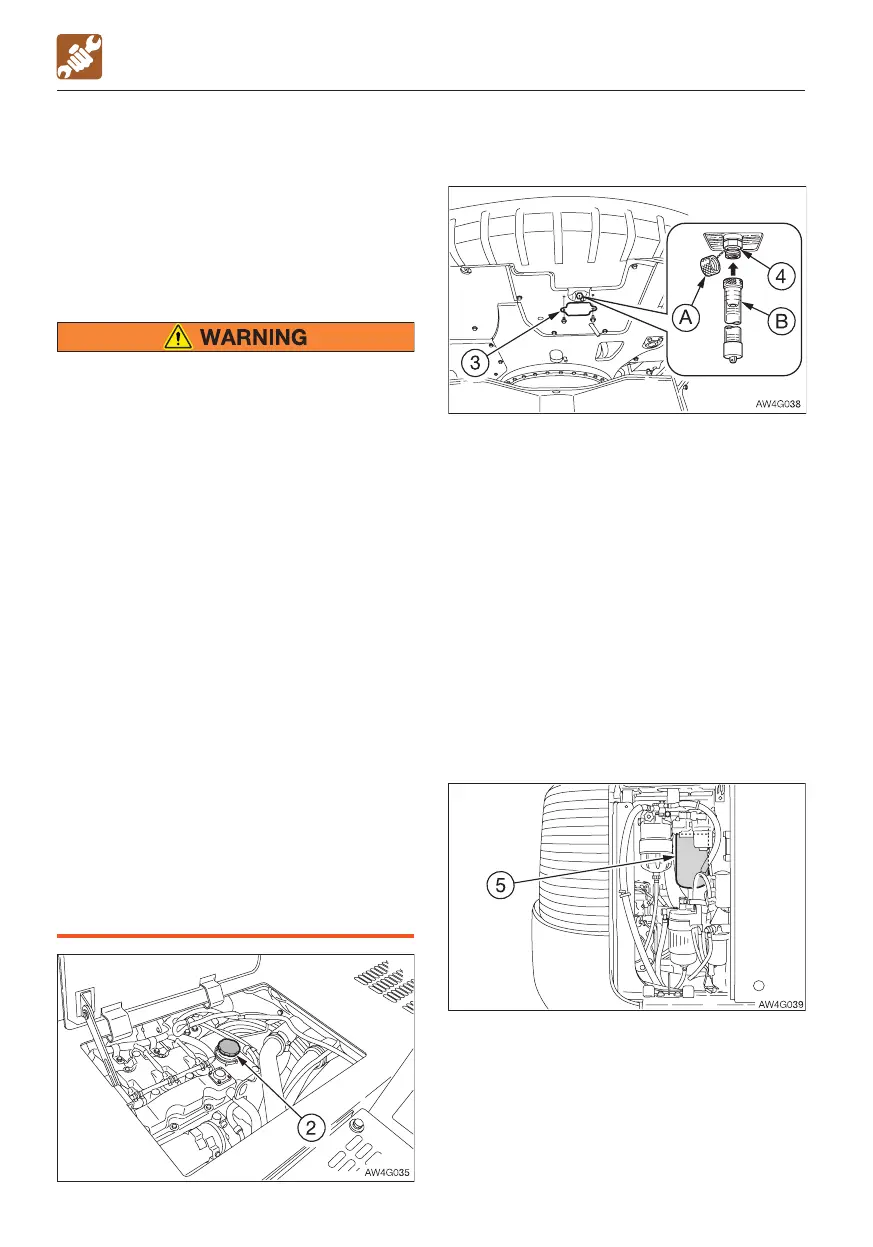

REPLACING THE ENGINE OIL AND THE
OIL FILTER
• Stop the engine and allow the machine
to cool down before performing
maintenance.
· The engine, muffler, radiator, hydraulic
lines, sliding parts and many other
parts of the machine are hot
immediately after the engine is
stopped. Touching these parts will
cause burns.
· The engine oil is also hot.
Be careful not to touch the hydraulic
oil when loosening the cap or plug.
Working on the machine under these
conditions could result in burns or
injuries.
• Before performing maintenance on the
top of the machine or the work bench,
clean the footing and observe the
following precautions to prevent falling.
· Do not spill oil or grease.
· Do not leave tools scattered around.
· Watch your step when walking.
• Never jump down from the machine.
Use the steps and handrails when
climbing up and down the machine, and
always support your body at three
points with your hands and feet.
2. Loosen the bolts and remove the under
cover (3).
3. Place a pan under the plug (4) to catch the
waste oil.
4. Remove the cap (A), install connector (B)
and drain the oil. (The oil comes out when
the screw is tightened.)
5. Remove the connector (B) and install the
cap (A).
IMPORTANT: Check the waste oil for
metal powder. If it contains large amount
of metal powder, consult your sales or
service dealer.
6. Install the under cover (3).
7. Open the right side cover.
8. Turn the filter (5) counterclockwise with the
filter wrench and remove it.
9. Clean the surface on which the filter stand
is installed.
10. Apply a thin layer of oil on the packing of
the new filter.
AFTER THE INITIAL 50 HOURS (ONLY FOR NEW MACHINES)
1. Open the maintenance cover and remove
the oil filler cap (2).
To Next Page
