3-17
OPERATION

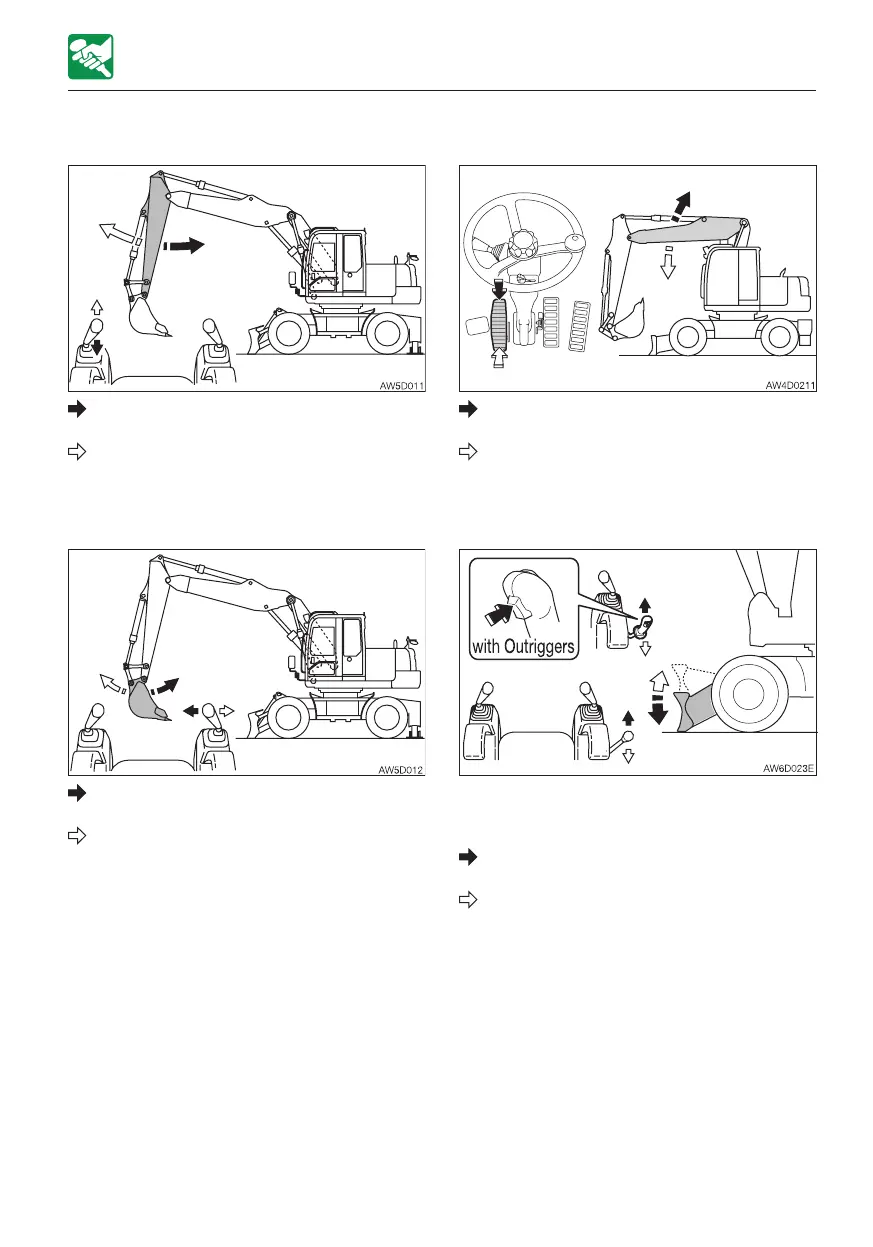

OPERATING THE MACHINE
Operating the arm
Arm in:
Tilt the left operating lever backward.
Arm out:
Tilt the left operating lever forward.
Operating the bucket
Bucket load:
Tilt the right operating lever to the left.
Bucket dump:
Tilt the right operating lever to the right.
Operating the second boom
Second boom raise:
Step on the toe side of the pedal.
Second boom lower:
Step on the heel side of the pedal.
Operating the dozer blade
For machines with outriggers, select the
dozer blade operation with the outrigger
switch.
Dozer blade lower:
Tilt the blade lever forward.
Dozer blade raise:
Tilt the blade lever backward.
