Takeuchi TB135 User Manual

205
OPTIONS
Long Arm

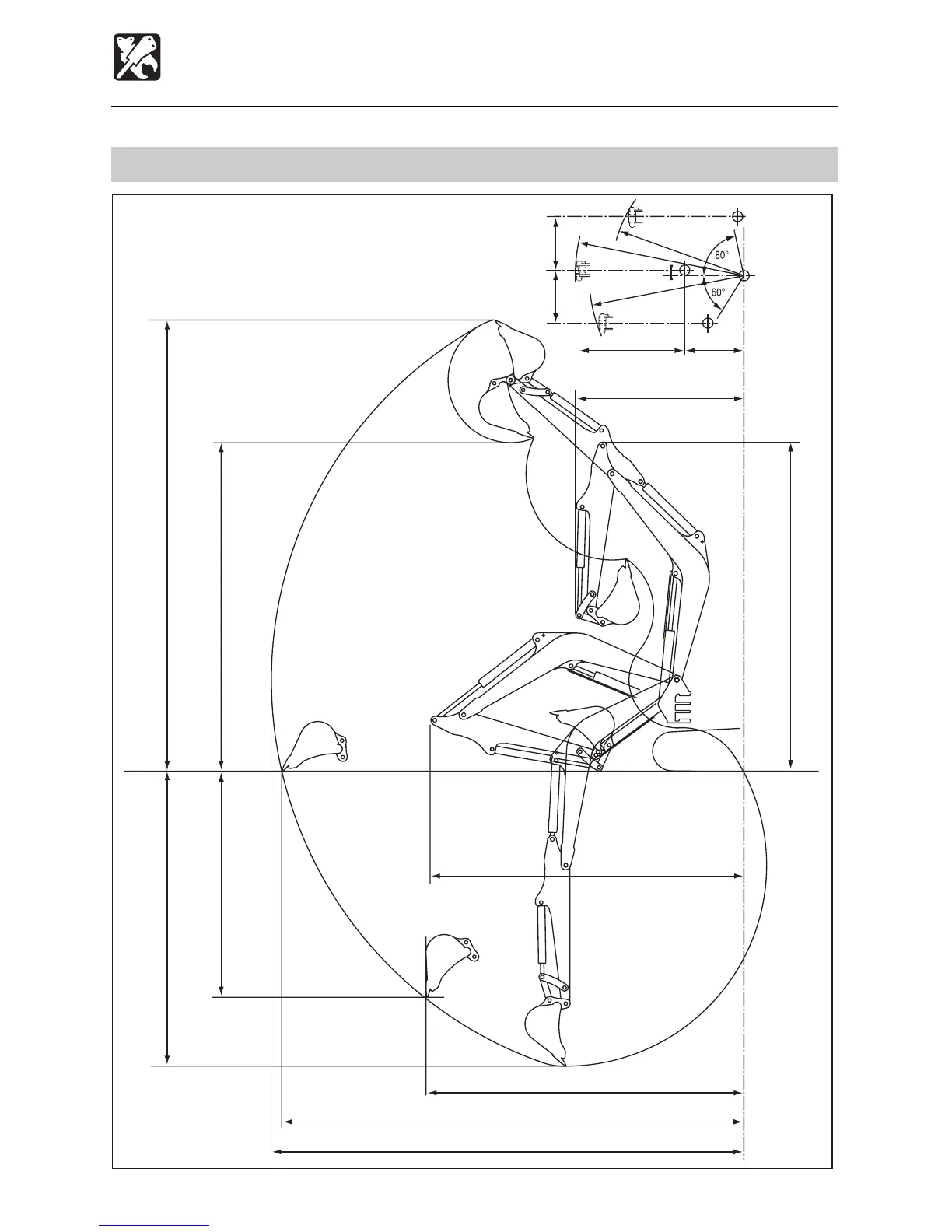

Operating Ranges (TB135)
G4L006
Front slewing radius
Values are indicated in units of mm, inches in ( ).
Bucket offset
685(27)1220(48.1)
R1790(70.5)
R1950(76.8)
R1530(60.3)
620(24.4)615(24.1)
65(2.6)
3800(149.7) Max. dumping height
5225(205.6) Max. digging height
3810(150) Overrall height; when minimum front slewing
1950(76.7)
3625(142.6) in Transport position
3415(134.4) Max. digging depth
2615(103) Max. vertical digging depth
3680(144.8)
5345(210.5) Max. ground digging radius
5465(215.2) Max. digging radius
