OPTIONS
Long Arm

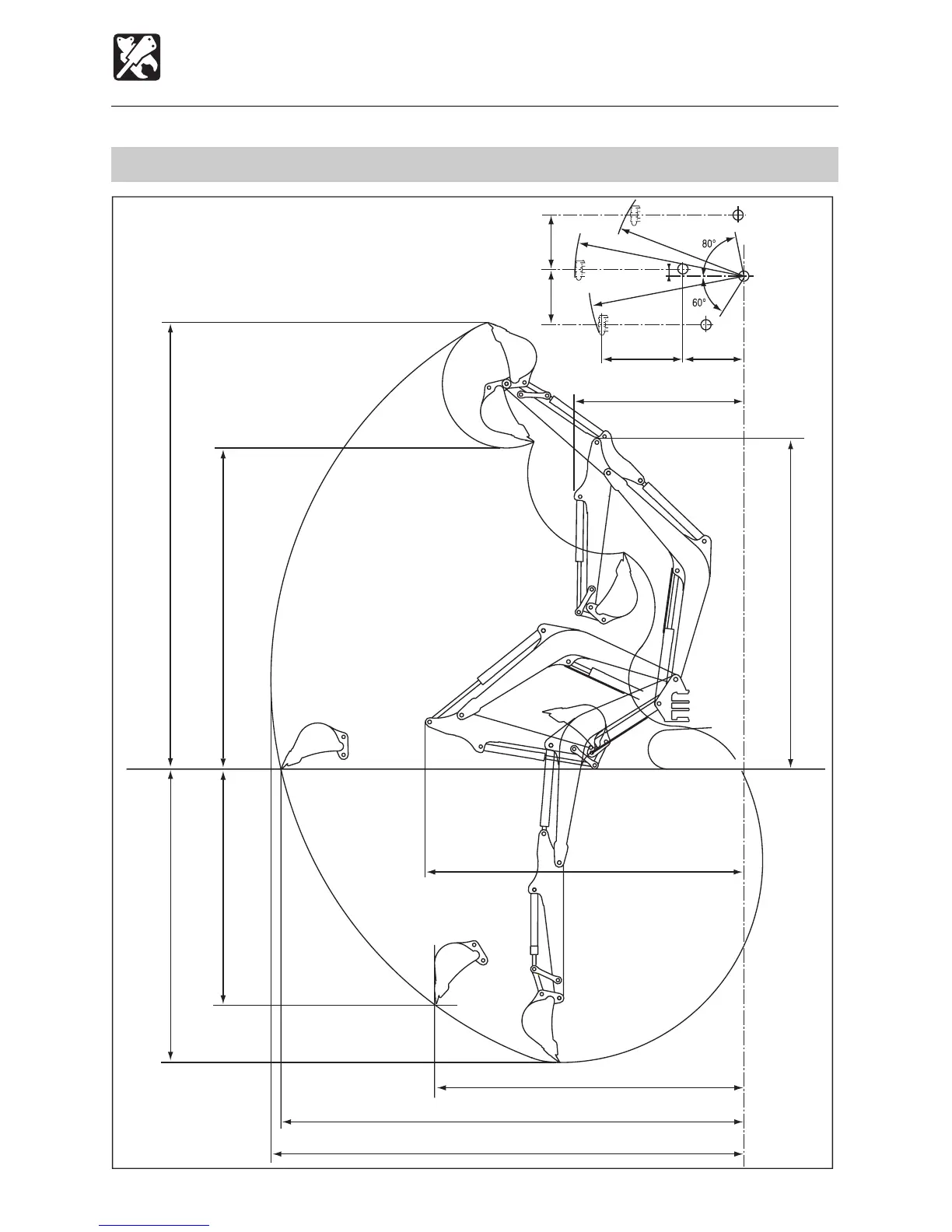

Operating Ranges (TB145)
K3L007
4300(169.3) Overrall height; when minimum front slewing
2195(86.4)
Front slewing radius
Values are indicated in units of mm, inches in ( ).
Bucket offset
795(31.3)
1050(41.3)
R2020(79.5)
R2195(86.5)
R1720(67.7)
710(28)
715(28.1)
85(3.3)
4170(164.3) Max. dumping height
5805(228.5) Max. digging height
4140(162.9) in Transport position
3810(150) Max. digging depth
3050(120.2) Max. vertical digging depth
4020(158.2)
6015(236.8) Max. ground digging radius
6145(241.9) Max. digging radius
