210
OPTIONS
Telescopic Arm

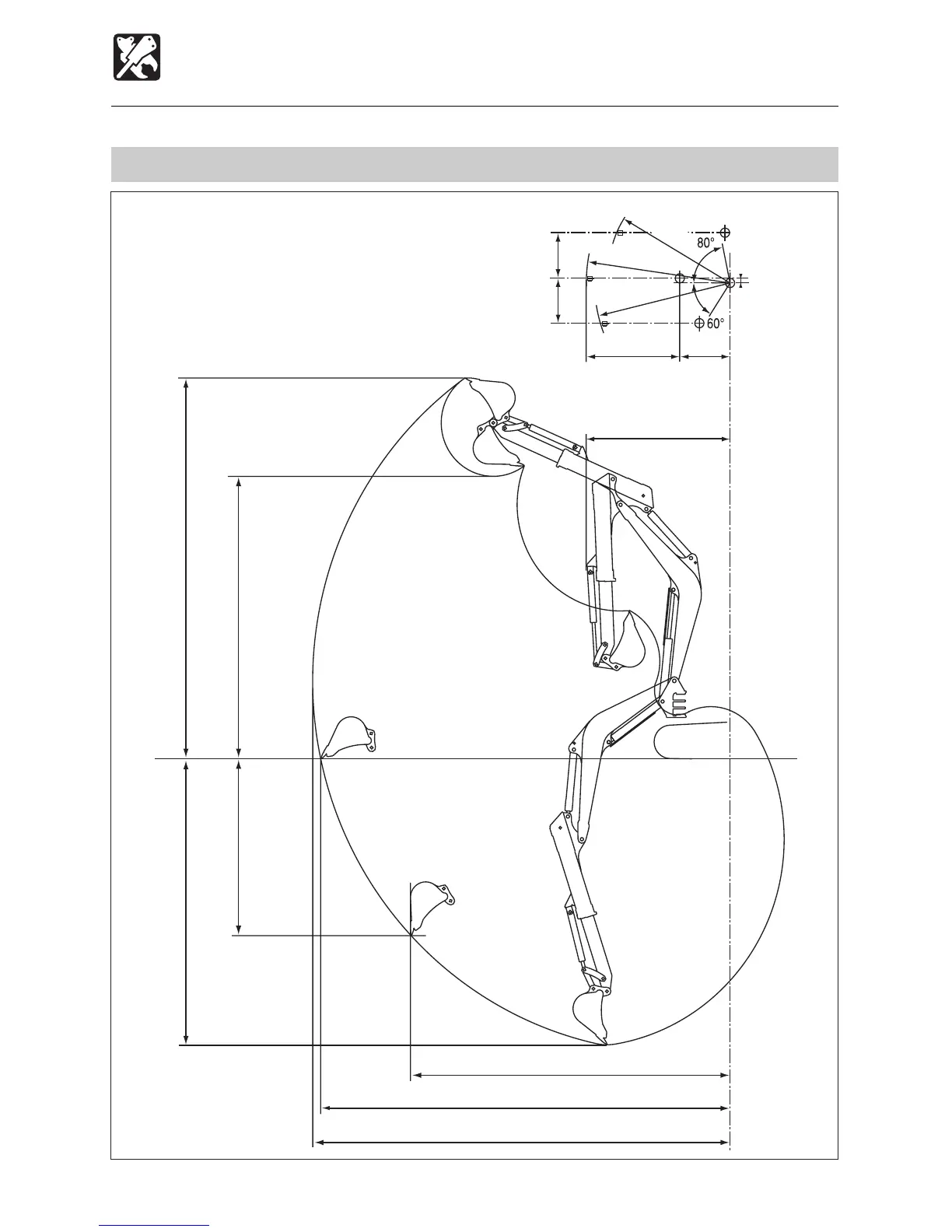

Operating Ranges TB125 (Fully Extended Arm)
1925(75.8)
1315(51.8)
610(24.0)
540(21.2)560(22.0)
R1795(70.6)
R1930(75.9)
R1535(60.6)
50(2.0)
Values are indicated in units of mm, inches in ( ).
Bucket offset
3055(120.2) Max. dumping height
4170(164.2) Max. digging height
3165(124.6) Max. digging depth
1645(64.7) Max. vertical digging depth
4110(161.8)Max. vertical digging radius
4885(192.2) Max. ground digging radius
5005(197.0) Max. digging radius
E5L005
Front slewing radius
