Takeuchi TB135 User Manual

211
OPTIONS
Telescopic Arm

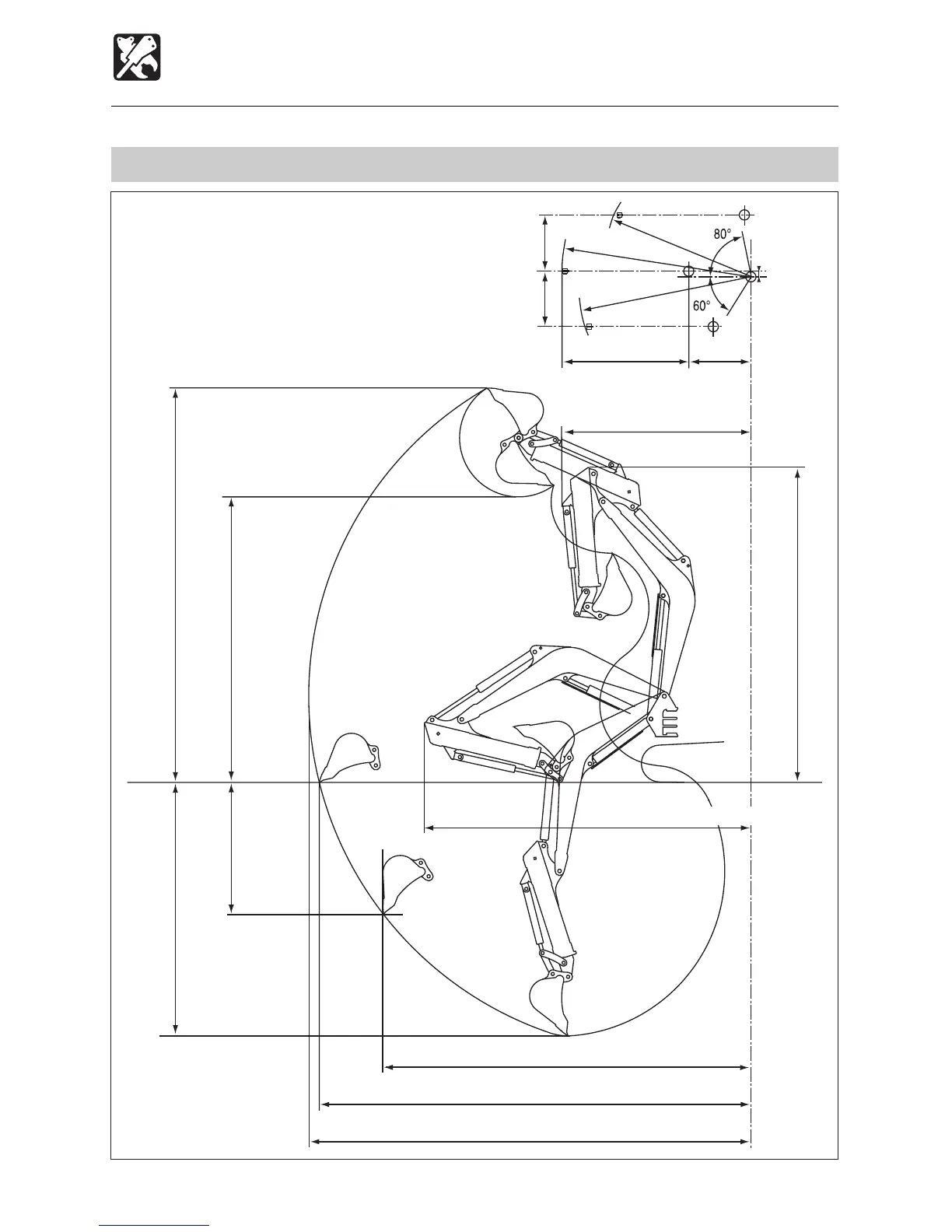

Operating Ranges TB125 (Fully Retracted Arm)
Values are indicated in units of mm, inches in ( ).
E5L006
1970(77.6)
1360(53.6)
610(24.0)
540(21.2)560(22.0)
R1810(71.3)
R1975(77.7)
R1580(62.2)
50(2.0)
Bucket offset
3450(135.8) Overrall height; when minimum front slewing
2905(114.4) Max. dumping height
4025(158.4) Max. digging height
3240(127.6) in Transport position
2590(101.9) Max. digging depth
1080(42.5) Max. vertical digging depth
4375(172.2) Max. ground digging radius
4510(177.6) Max. digging radius
3905(153.8)Max. vertical digging radius
Front slewing radius
